Maryland Precision Spring

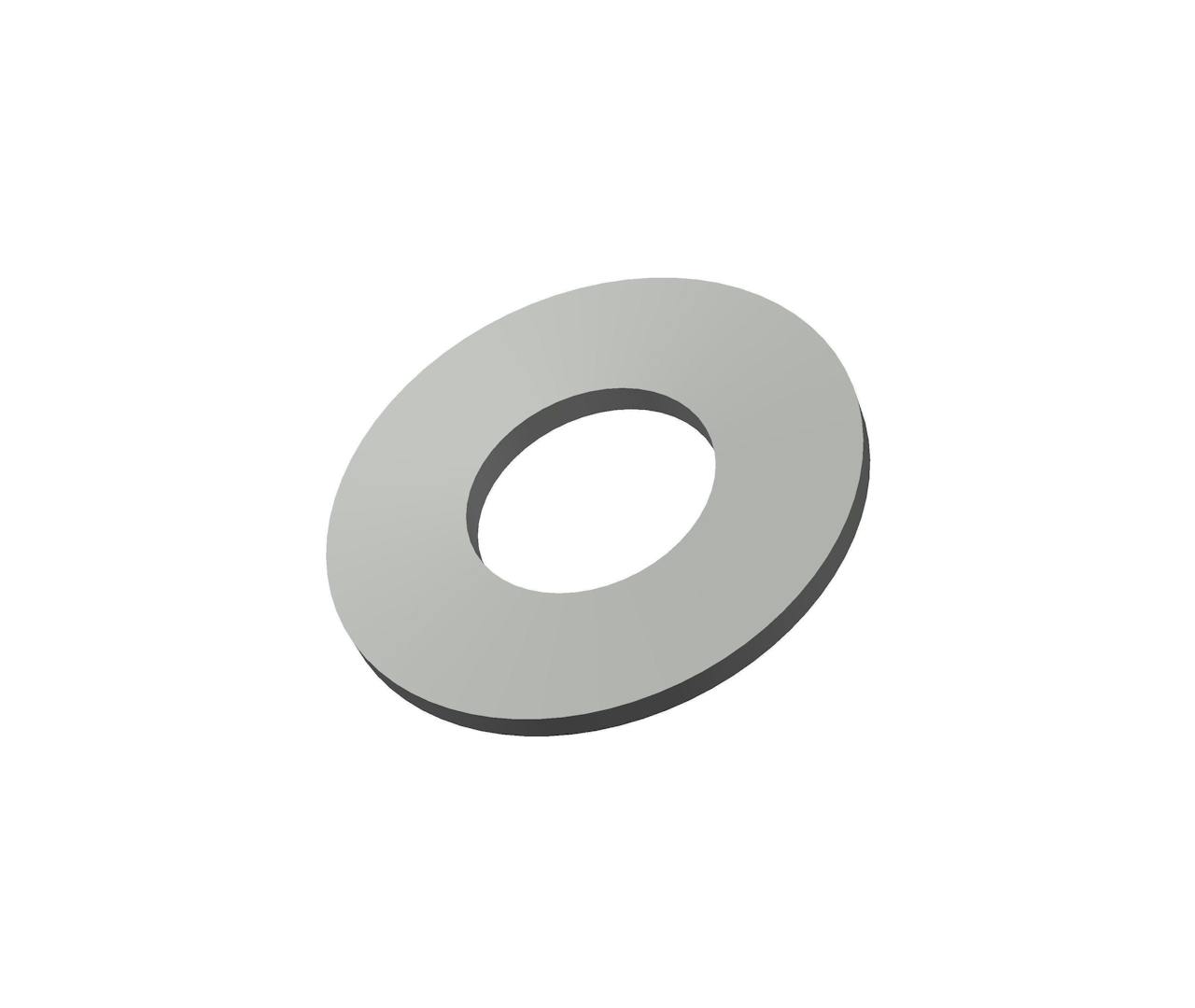

AM-188210 - 0.323 Inch ID 0.709 Inch OD 1075 High Carbon Steel Disc Spring Washer

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.323 Inch and an outside diameter of 0.709 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 101 lb
Deflection at 100% Height 0.0158 in
Deflection at 50% Height 0.0079 in
Deflection at 75% Height 0.0119 in
Display Name AM-188210
Finish None
Inside Diameter 0.323 in
Load at 100% Height 366 lb
Load at 50% Height 194 lb
Load at 75% Height 282 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 0.709 in
Outside Height 0.0551 in
SKU AM-188210
T 0.0394 in
h/t 0.402 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 45.8 kg
Deflection at 100% Height 0.4 mm
Deflection at 50% Height 0.2 mm
Deflection at 75% Height 0.3 mm
Display Name AM-188210
Finish None
Inside Diameter 8.2 mm
Load at 100% Height 165.99 kg
Load at 50% Height 87.98 kg
Load at 75% Height 127.89 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 18.01 mm
Outside Height 1.4 mm
SKU AM-188210
T 1 mm
h/t 10.21 mm
