Maryland Precision Spring

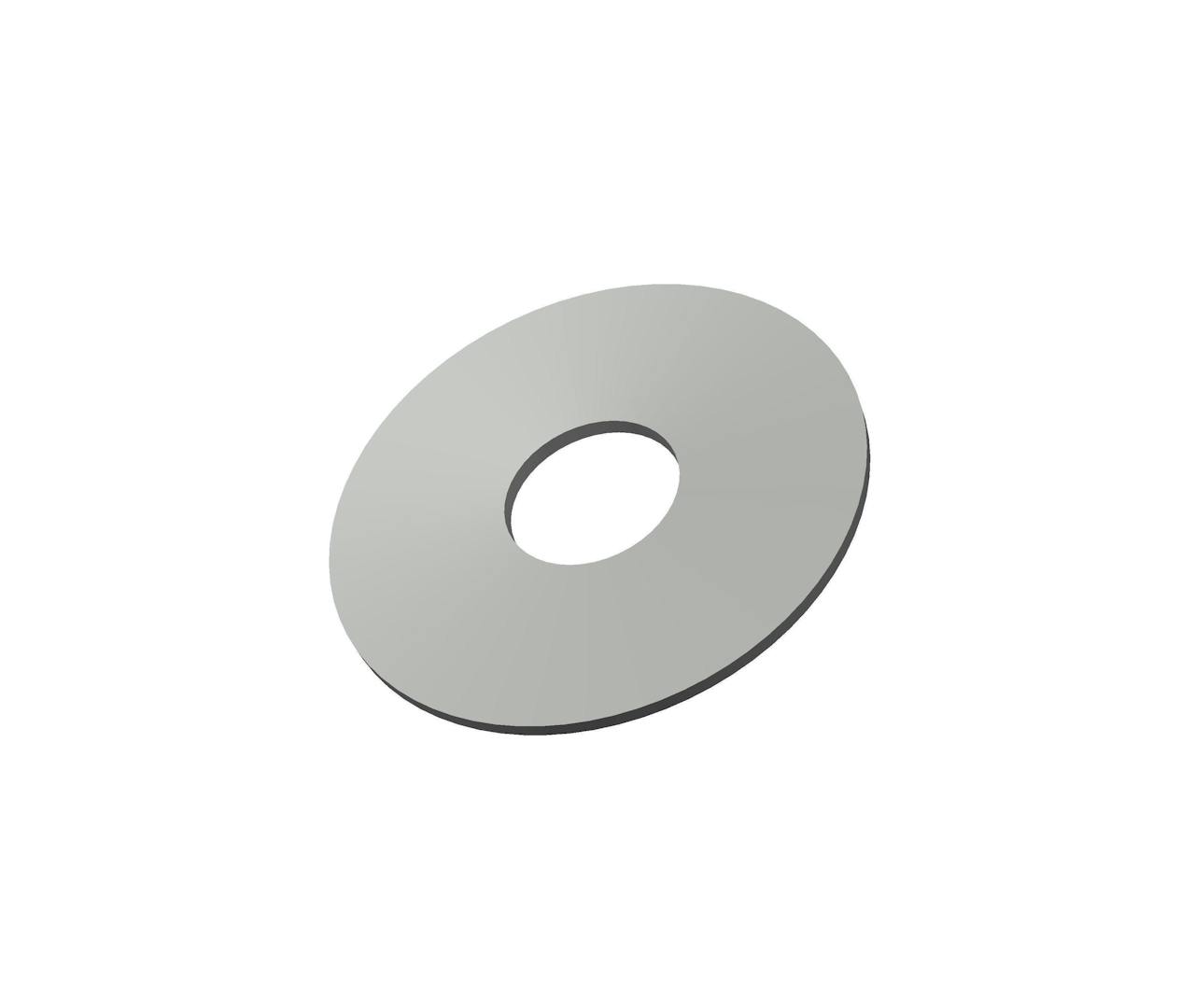

AM-103203 - 0.126 Inch ID 0.394 Inch OD 1075 High Carbon Steel Disc Spring Washer

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.126 Inch and an outside diameter of 0.394 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 12 lb
Deflection at 100% Height 0.0139 in
Deflection at 50% Height 0.0069 in
Deflection at 75% Height 0.0104 in
Display Name AM-103203
Finish None
Inside Diameter 0.126 in
Load at 100% Height 26 lb
Load at 50% Height 19 lb
Load at 75% Height 23 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 0.394 in
Outside Height 0.0256 in
SKU AM-103203
T 0.0118 in
h/t 1.175 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 5.44 kg
Deflection at 100% Height 0.35 mm
Deflection at 50% Height 0.18 mm
Deflection at 75% Height 0.26 mm
Display Name AM-103203
Finish None
Inside Diameter 3.2 mm
Load at 100% Height 11.79 kg
Load at 50% Height 8.62 kg
Load at 75% Height 10.43 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 10.01 mm
Outside Height 0.65 mm
SKU AM-103203
T 0.3 mm
h/t 29.85 mm
