Maryland Precision Spring

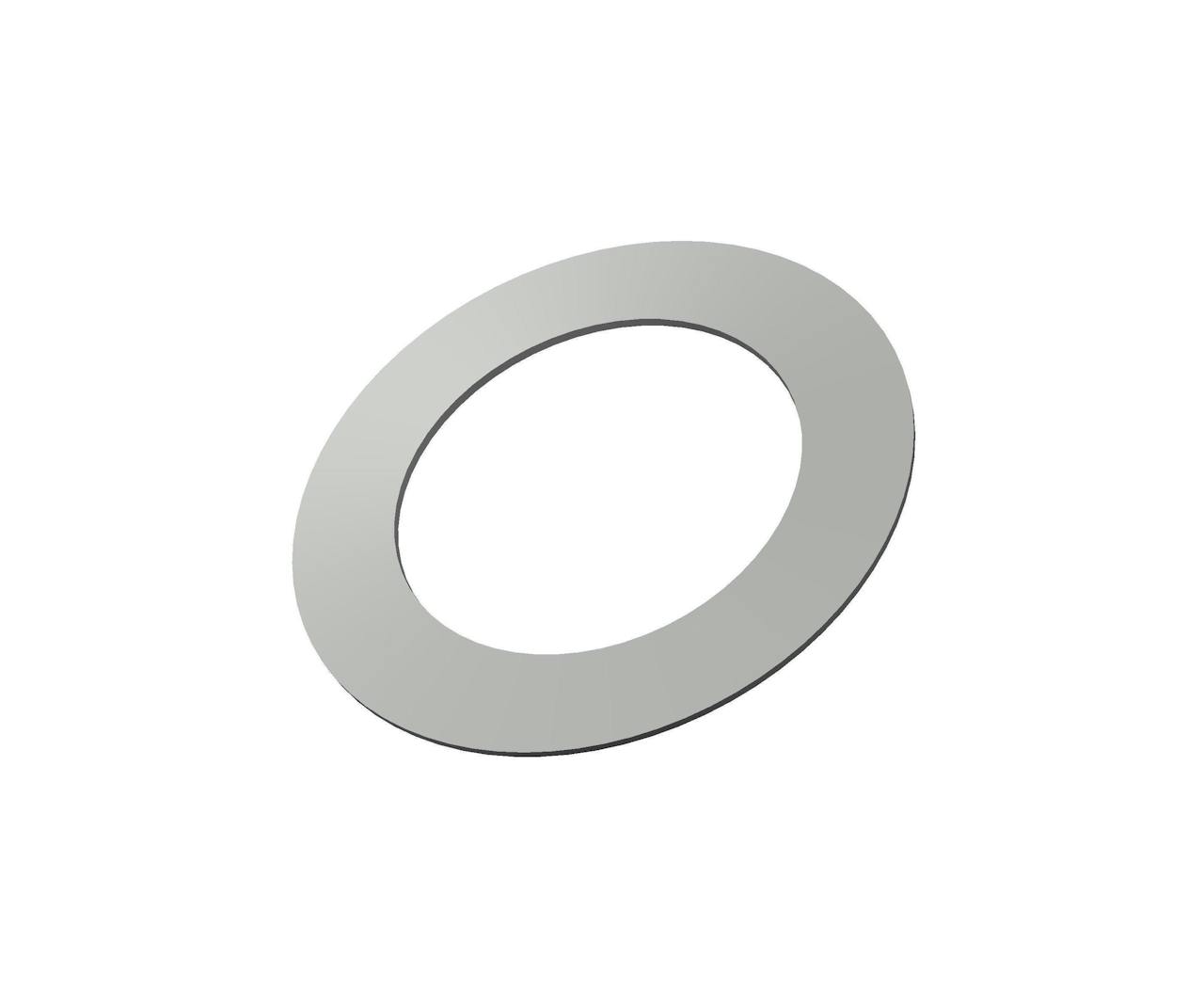

AK-R8 - 0.724 Inch ID 1.11 Inch OD 1075 Steel Disc Spring Washer

Disc spring manufactured from 1075 Steel with an inside diameter of 0.724 Inch and an outside diameter of 1.11 Inch.

Unit System
Specs (in standard)
Label Value
Ball Bearing Size R-8
Brand Maryland Precision Spring
Deflection at 75% Height 0.021 in
Display Name AK-R8
Finish Phosphate
Inside Diameter 0.724 in
Load at 75% Height 24.1 lb
Material 1075 Steel
Measurement Units Standard
Outside Diameter 1.11 in
Outside Height 0.043 in
SKU AK-R8
T 0.016 in
Specs (in metric)
Label Value
Ball Bearing Size R-8
Brand Maryland Precision Spring
Deflection at 75% Height 0.53 mm
Display Name AK-R8
Finish Phosphate
Inside Diameter 18.39 mm
Load at 75% Height 10.93 kg
Material 1075 Steel
Measurement Units Standard
Outside Diameter 28.19 mm
Outside Height 1.09 mm
SKU AK-R8
T 0.41 mm
