Maryland Precision Spring

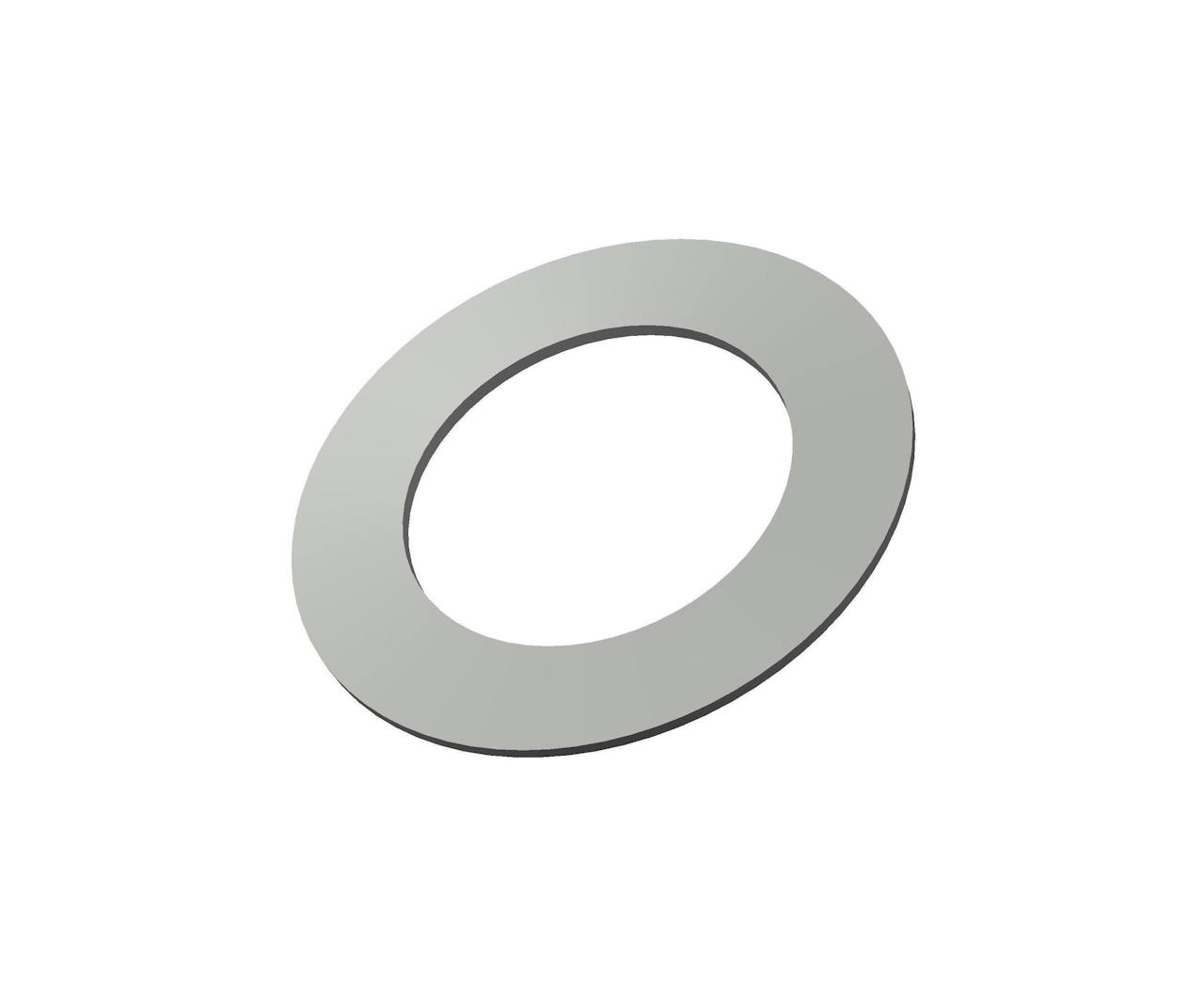

AK-R2 - 0.228 Inch ID 0.366 Inch OD 1075 Steel Disc Spring Washer

Disc spring manufactured from 1075 Steel with an inside diameter of 0.228 Inch and an outside diameter of 0.366 Inch.

Unit System
Specs (in standard)
Label Value
Ball Bearing Size R-2
Brand Maryland Precision Spring
Deflection at 75% Height 0.006 in
Display Name AK-R2
Finish Phosphate
Inside Diameter 0.228 in
Load at 75% Height 5.9 lb
Material 1075 Steel
Measurement Units Standard
Outside Diameter 0.366 in
Outside Height 0.016 in
SKU AK-R2
T 0.008 in
Specs (in metric)
Label Value
Ball Bearing Size R-2
Brand Maryland Precision Spring
Deflection at 75% Height 0.15 mm
Display Name AK-R2
Finish Phosphate
Inside Diameter 5.79 mm
Load at 75% Height 2.68 kg
Material 1075 Steel
Measurement Units Standard
Outside Diameter 9.3 mm
Outside Height 0.41 mm
SKU AK-R2
T 0.2 mm
