Maryland Precision Spring

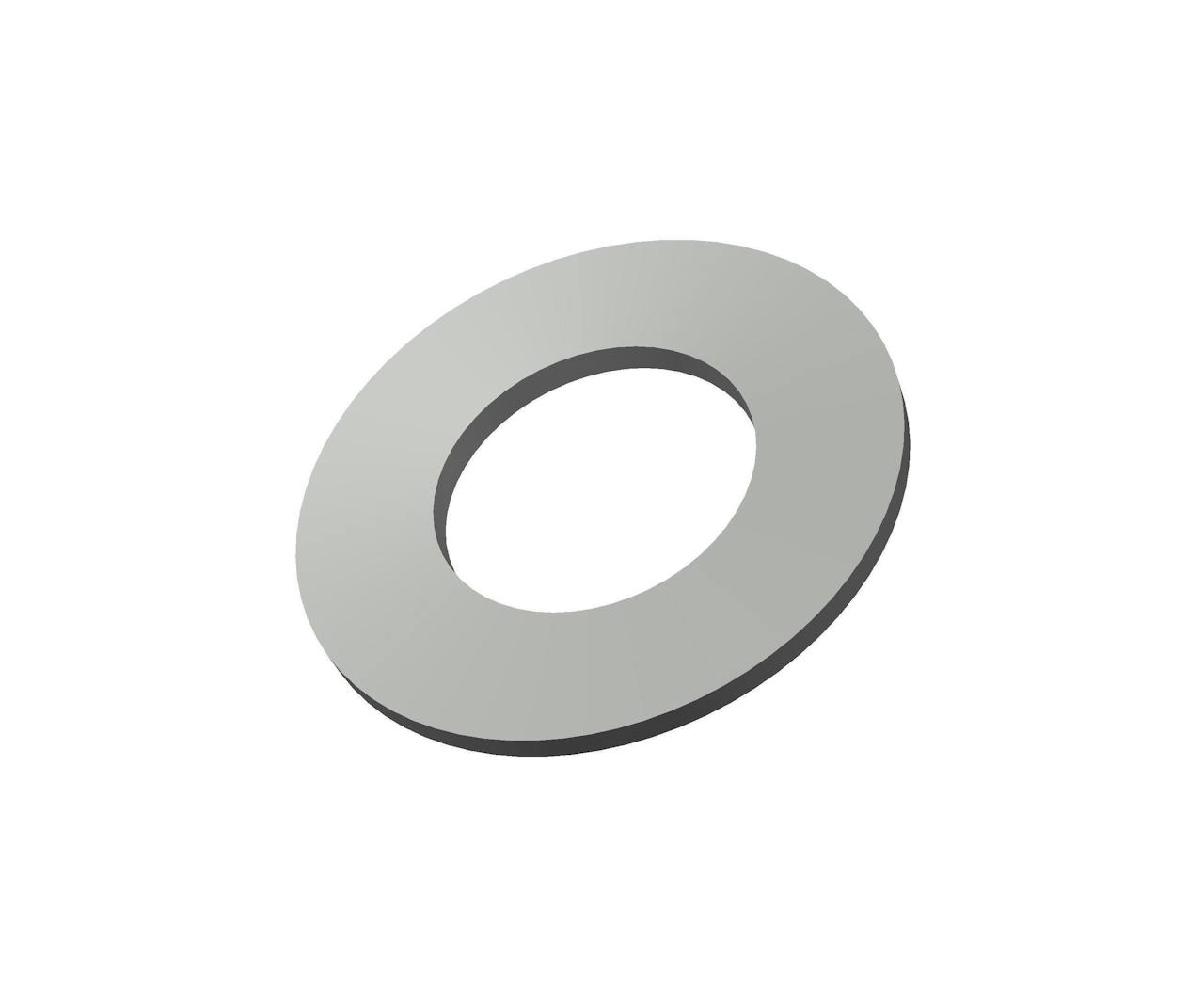

AI-371918 - 0.195 Inch ID 0.375 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.195 Inch and an outside diameter of 0.375 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size 0.1875
Brand Maryland Precision Spring
Display Name AI-371918
Finish Plain
H 0.01 in
Inside Diameter 0.195 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.01 in
Maximum Force at 100% Height 85 lb
Measurement Units Standard
Outside Diameter 0.375 in
Outside Height 0.028 in
SKU AI-371918
T 0.018 in
Specs (in metric)
Label Value
Bolt Size 0.19
Brand Maryland Precision Spring
Display Name AI-371918
Finish Plain
H 0.25 mm
Inside Diameter 4.95 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.25 mm
Maximum Force at 100% Height 38.55 kg
Measurement Units Standard
Outside Diameter 9.53 mm
Outside Height 0.71 mm
SKU AI-371918
T 0.46 mm
