Maryland Precision Spring

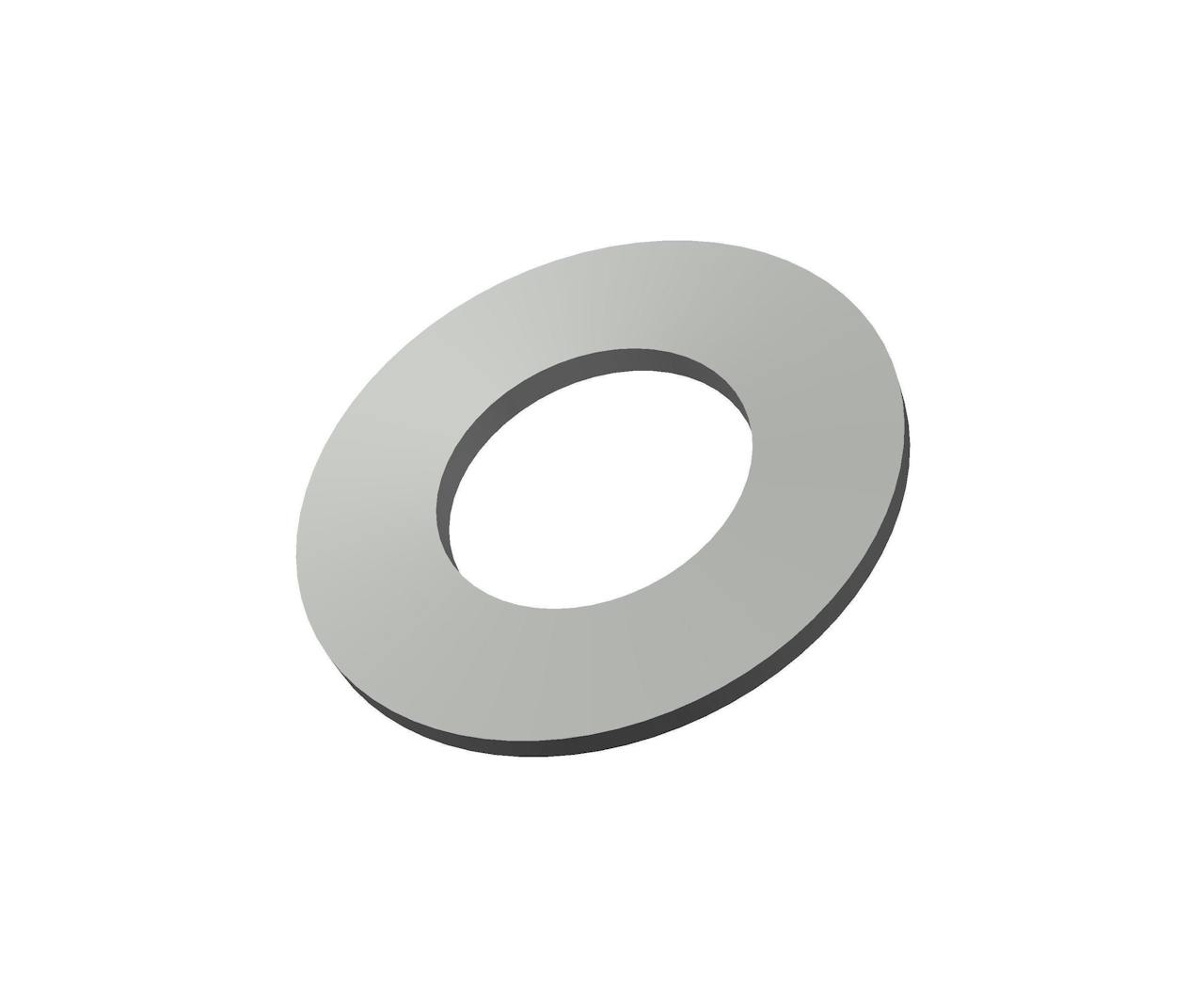

AI-201098 - 1.016 Inch ID 2 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 1.016 Inch and an outside diameter of 2 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size 1
Brand Maryland Precision Spring
Display Name AI-201098
Finish Plain
H 0.06 in
Inside Diameter 1.016 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.06 in
Maximum Force at 100% Height 2881 lb
Measurement Units Standard
Outside Diameter 2 in
Outside Height 0.158 in
SKU AI-201098
T 0.098 in
Specs (in metric)
Label Value
Bolt Size 1
Brand Maryland Precision Spring
Display Name AI-201098
Finish Plain
H 1.52 mm
Inside Diameter 25.81 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 1.52 mm
Maximum Force at 100% Height 1306.58 kg
Measurement Units Standard
Outside Diameter 50.8 mm
Outside Height 4.01 mm
SKU AI-201098
T 2.49 mm
