Maryland Precision Spring

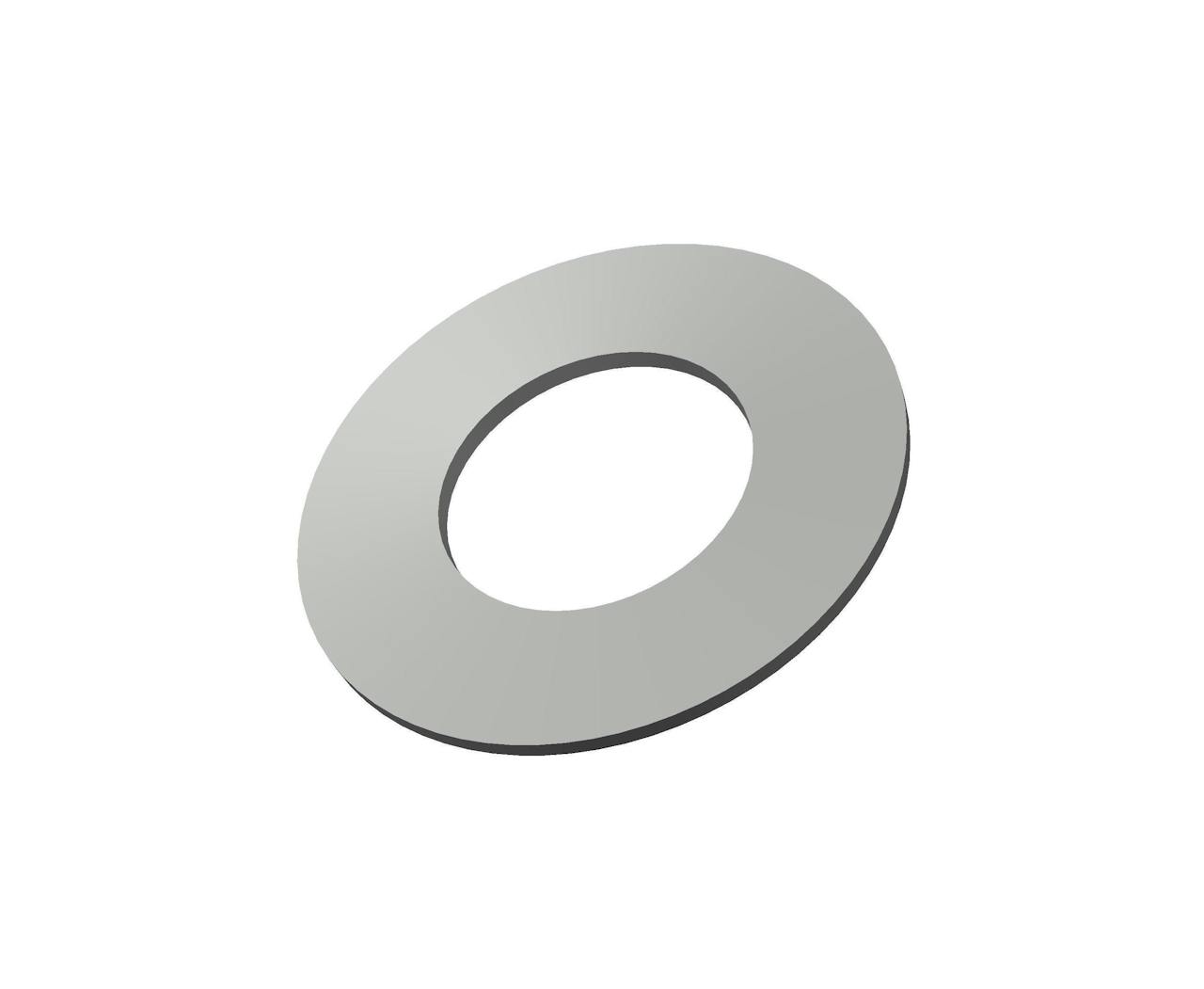

AI-201065 - 1.016 Inch ID 2 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 1.016 Inch and an outside diameter of 2 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size 1
Brand Maryland Precision Spring
Display Name AI-201065
Finish Plain
H 0.065 in
Inside Diameter 1.016 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.065 in
Maximum Force at 100% Height 895 lb
Measurement Units Standard
Outside Diameter 2 in
Outside Height 0.13 in
SKU AI-201065
T 0.065 in
Specs (in metric)
Label Value
Bolt Size 1
Brand Maryland Precision Spring
Display Name AI-201065
Finish Plain
H 1.65 mm
Inside Diameter 25.81 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 1.65 mm
Maximum Force at 100% Height 405.9 kg
Measurement Units Standard
Outside Diameter 50.8 mm
Outside Height 3.3 mm
SKU AI-201065
T 1.65 mm
