Maryland Precision Spring

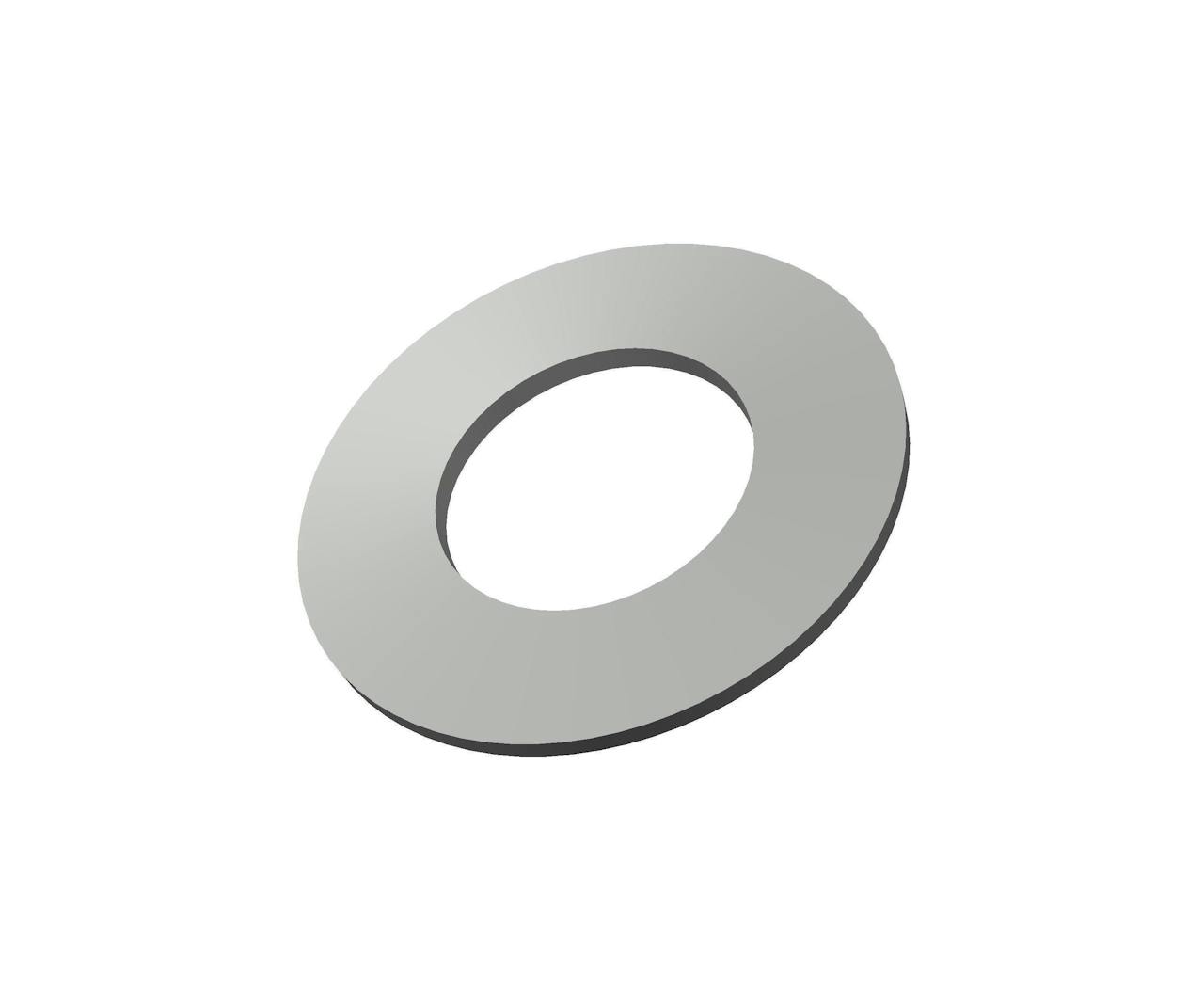

AI-105139 - 0.512 Inch ID 1 Inch OD 1075 High Carbon Steel Disc Spring Washer

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.512 Inch and an outside diameter of 1 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size 0.5
Brand Maryland Precision Spring
Display Name AI-105139
Finish Plain
H 0.036 in
Inside Diameter 0.512 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.036 in
Maximum Force at 100% Height 436 lb
Measurement Units Standard
Outside Diameter 1 in
Outside Height 0.075 in
SKU AI-105139
T 0.039 in
Specs (in metric)
Label Value
Bolt Size 0.5
Brand Maryland Precision Spring
Display Name AI-105139
Finish Plain
H 0.91 mm
Inside Diameter 13 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.91 mm
Maximum Force at 100% Height 197.73 kg
Measurement Units Standard
Outside Diameter 25.4 mm
Outside Height 1.91 mm
SKU AI-105139
T 0.99 mm
