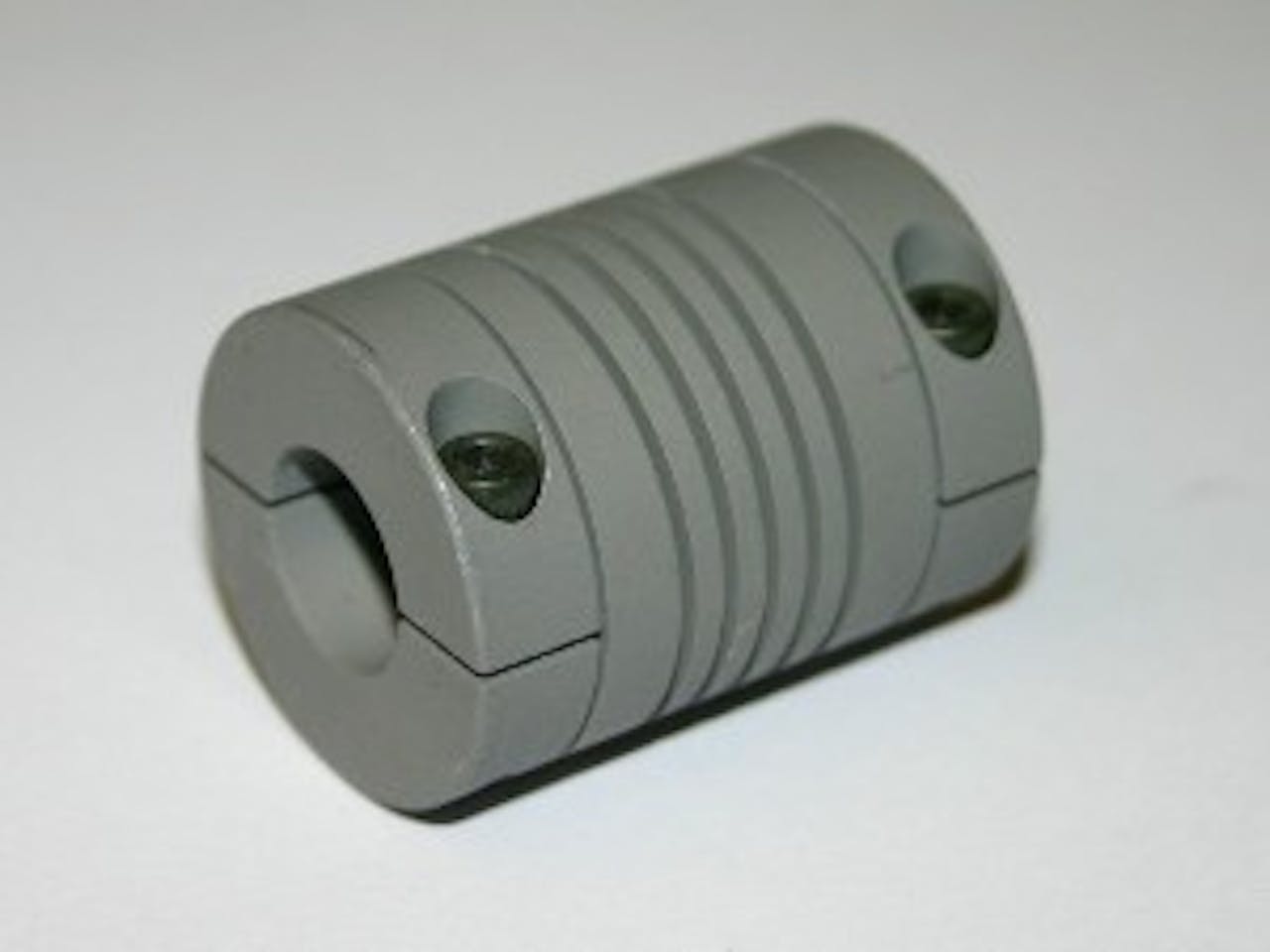

ACR050-3-3 - 0.75 Inch 7075-T6 Aluminum Alloy Flexible Shaft Coupling

Machined coupling manufactured from 7075-T6 Aluminum Alloy with Integral Clamp end attachments. This 0.75 Inch flexible shaft coupling has a 0.5 Inch O.D. and 0.094 Inch and 0.094 Inch bores.

Download CAD
Unit System
Specs (in standard)
Label Value
Angular Misalignment 5 deg
Axial Motion 0.01 in
Bore Size 0.094 in
Bore Size 2 0.094 in
Brand Helical Products
Center Line 0.09 in
Display Name ACR050-3-3
End Type Integral Clamp
Finish Clear Anodized
Hex Size 0.0625 in
Inertia 0.11 lbin/sec sq
Length 0.75 in
Material 7075-T6 Aluminum Alloy
Max Torque 3.7 lbs/in
Model Number ACR050-3-3
Non-Reversing Torque 1.9 lbs/in
Operating Temperature 200 F
Outside Diameter 0.5 in
Parallel Offset 0.01 in
Rate (Rotational) 0.98 lbf/deg
Rated Speed 10000 rpm
Reversing Torque 0.9 lbs/in
SKU ACR050-3-3
Screw Size 1-72
Seating Torque 4 lbs/in
Series ACR
Specs (in metric)
Label Value
Angular Misalignment 5 deg
Axial Motion 0.25 mm
Bore Size 2.39 mm
Bore Size 2 2.39 mm
Brand Helical Products
Center Line 2.29 mm
Display Name ACR050-3-3
End Type Integral Clamp
Finish Clear Anodized
Hex Size 1.59 mm
Inertia 0.13 kgcm/sec sq
Length 19.05 mm
Material 7075-T6 Aluminum Alloy
Max Torque 0.65 N-mm
Model Number ACR050-3-3
Non-Reversing Torque 0.33 N-mm
Operating Temperature 93.33 C
Outside Diameter 12.7 mm
Parallel Offset 0.25 mm
Rate (Rotational) 4.36 N/deg
Rated Speed 10000 rpm
Reversing Torque 0.16 N-mm
SKU ACR050-3-3
Screw Size 1-72
Seating Torque 0.7 N-mm
Series ACR
