Century Spring

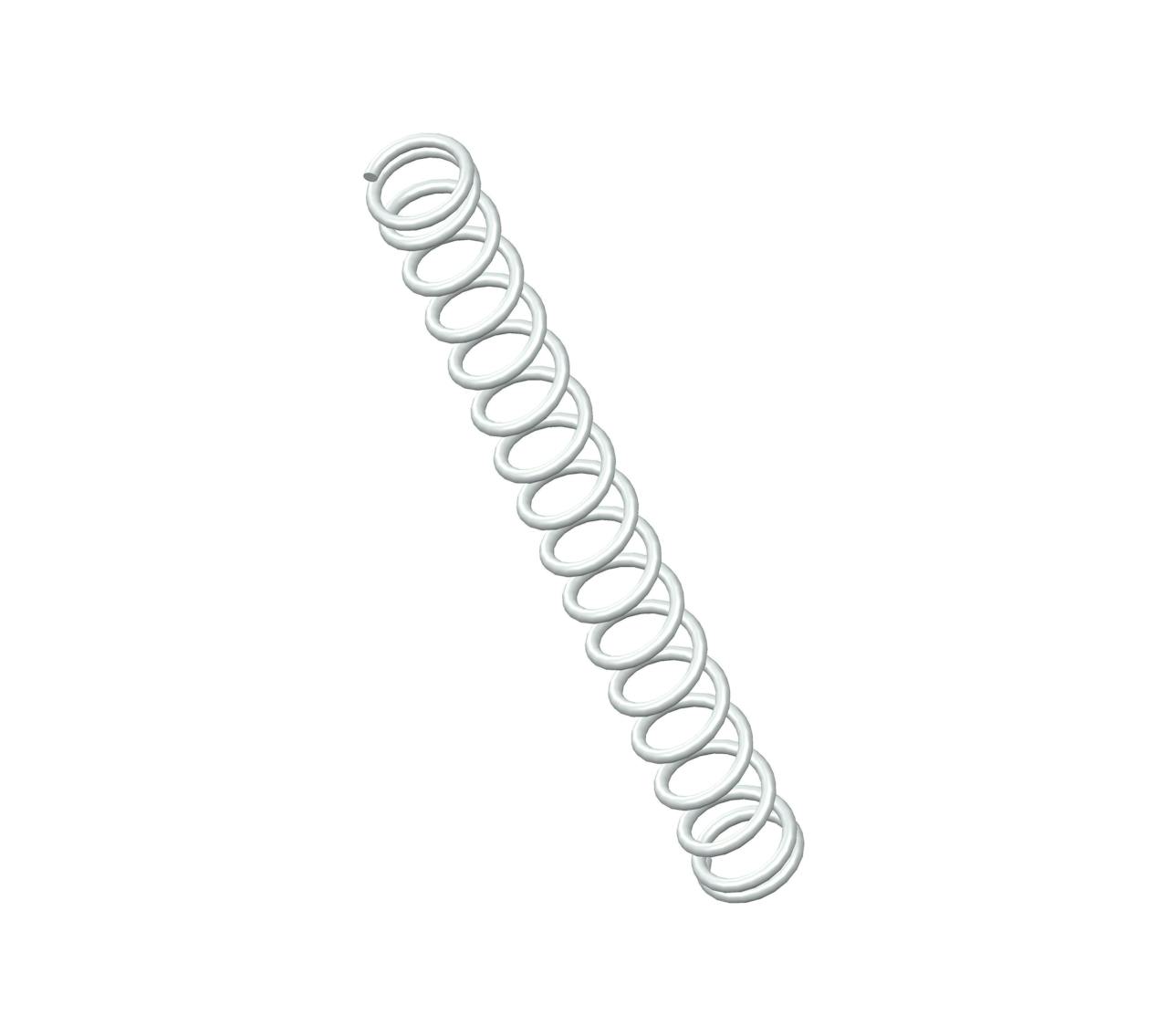

AA-68CS - 1.34" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 17 coils and closed ends. This spring features an O.D. of 0.14", and an I.D. of 0.104".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name AA-68
Ends Closed
Finish None
Free Length 1.34 in
Inside Diameter 0.104 in
Material 302/304 Stainless Steel
Outside Diameter 0.14 in
Part Type Standard
Rate 4.9 lbs/in
SKU AA-68CS
Solid Length 0.32 in
Suggested Max Deflection 0.33 in
Suggested Max Load 1.6 lbf
Total Coils 17
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name AA-68
Ends Closed
Finish None
Free Length 34.04 mm
Inside Diameter 2.64 mm
Material 302/304 Stainless Steel
Outside Diameter 3.56 mm
Part Type Standard
Rate 0.86 N/mm
SKU AA-68CS
Solid Length 8.13 mm
Suggested Max Deflection 8.38 mm
Suggested Max Load 7.12 N
Total Coils 17
Wire Diameter 0.46 mm
The AA-68 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The AA-68CS compression spring is designed with a free length of 0.63" total of 11 coils, and a rate of 33 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The AA-68 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
