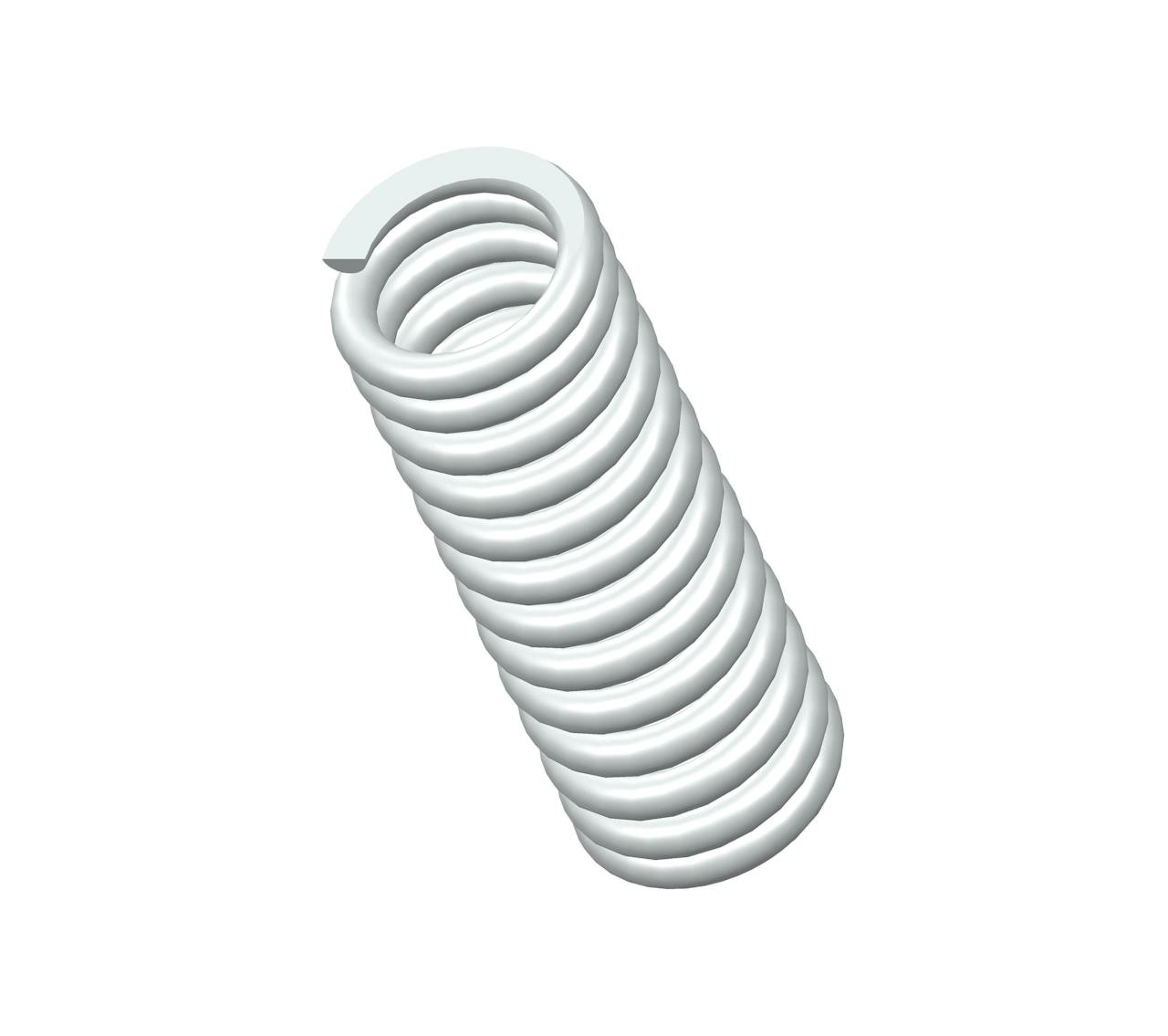

AA-60CS - 0.84" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 13 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.202".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | AA-60 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.84 in |
| Inside Diameter | 0.202 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 36 lbs/in |
| SKU | AA-60CS |
| Solid Length | 0.61 in |
| Suggested Max Deflection | 0.23 in |
| Suggested Max Load | 8.4 lbf |
| Total Coils | 13 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | AA-60 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 21.34 mm |
| Inside Diameter | 5.13 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 6.3 N/mm |
| SKU | AA-60CS |
| Solid Length | 15.49 mm |
| Suggested Max Deflection | 5.84 mm |
| Suggested Max Load | 37.36 N |
| Total Coils | 13 |
| Wire Diameter | 1.19 mm |
The compression spring AA-60CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the AA-60 compression spring design exhibits exceptional tensile strength and resilience.
The AA-60 design is manufactured with a free length of 0.84", with an outer diameter of 0.296", an inner diameter of 0.202", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 36 lbs/in.
The AA-60CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring AA-60 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
