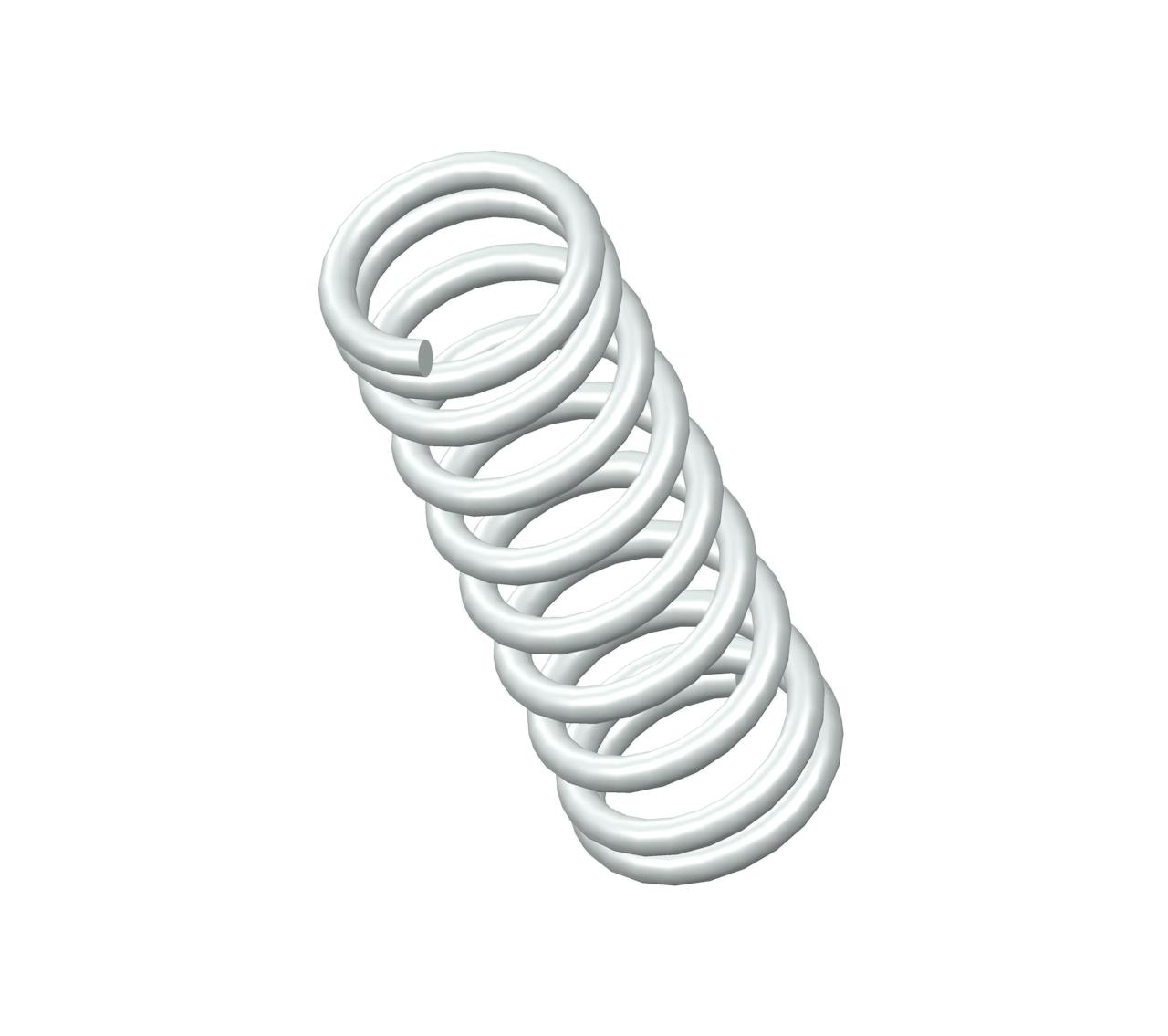

AA-50CS - 0.88" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 9.5 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.22".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name AA-50
Ends Closed
Finish None
Free Length 0.88 in
Inside Diameter 0.22 in
Material 302/304 Stainless Steel
Outside Diameter 0.296 in
Part Type Standard
Rate 20 lbs/in
SKU AA-50CS
Solid Length 0.4 in
Suggested Max Deflection 0.33 in
Suggested Max Load 6.6 lbf
Total Coils 9.5
Wire Diameter 0.038 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name AA-50
Ends Closed
Finish None
Free Length 22.35 mm
Inside Diameter 5.59 mm
Material 302/304 Stainless Steel
Outside Diameter 7.52 mm
Part Type Standard
Rate 3.5 N/mm
SKU AA-50CS
Solid Length 10.16 mm
Suggested Max Deflection 8.38 mm
Suggested Max Load 29.36 N
Total Coils 9.5
Wire Diameter 0.97 mm
The AA-50CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.038" diameter 302/304 stainless steel, the AA-50 spring design exhibits reliable strength across its 9.5 active coils, withstanding repeated compression cycles with a maximum load of 6.6 lbf without succumbing to fatigue.

We manufacture the AA-50 design to provide a compression spring that is 0.88" long at rest and provides a consistent rate of 20 lbs/in along its recommended maximum of 0.33" deflection. For best results, your application should fully accommodate the inner (0.22") and outer (0.296") diameters of this spring and be designed for its closed end configuration.
