AA-45CS - 0.44" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

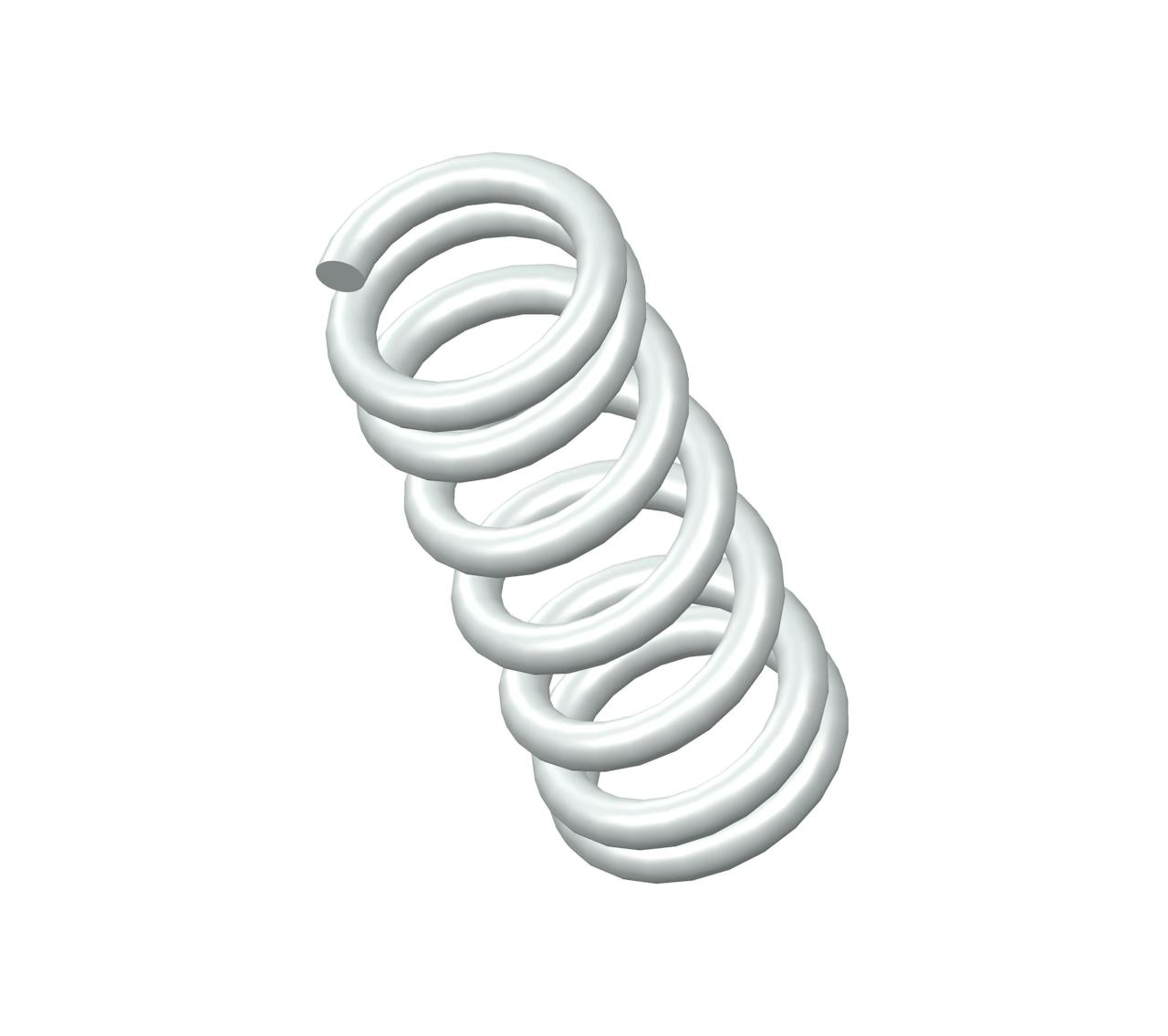

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.118".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | AA-45 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.44 in |
| Inside Diameter | 0.118 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.172 in |
| Part Type | Standard |
| Rate | 44 lbs/in |
| SKU | AA-45CS |
| Solid Length | 0.22 in |
| Suggested Max Deflection | 0.09 in |
| Suggested Max Load | 4.1 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.027 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | AA-45 |
| Ends | Closed |
| Finish | None |
| Free Length | 11.18 mm |
| Inside Diameter | 3 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.37 mm |
| Part Type | Standard |
| Rate | 7.7 N/mm |
| SKU | AA-45CS |
| Solid Length | 5.59 mm |
| Suggested Max Deflection | 2.29 mm |
| Suggested Max Load | 18.24 N |
| Total Coils | 7 |
| Wire Diameter | 0.69 mm |
The compression spring AA-45CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the AA-45 compression spring design exhibits exceptional tensile strength and resilience.
The AA-45 design is manufactured with a free length of 0.44", with an outer diameter of 0.172", an inner diameter of 0.118", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 44 lbs/in.
The AA-45CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring AA-45 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
