Century Spring

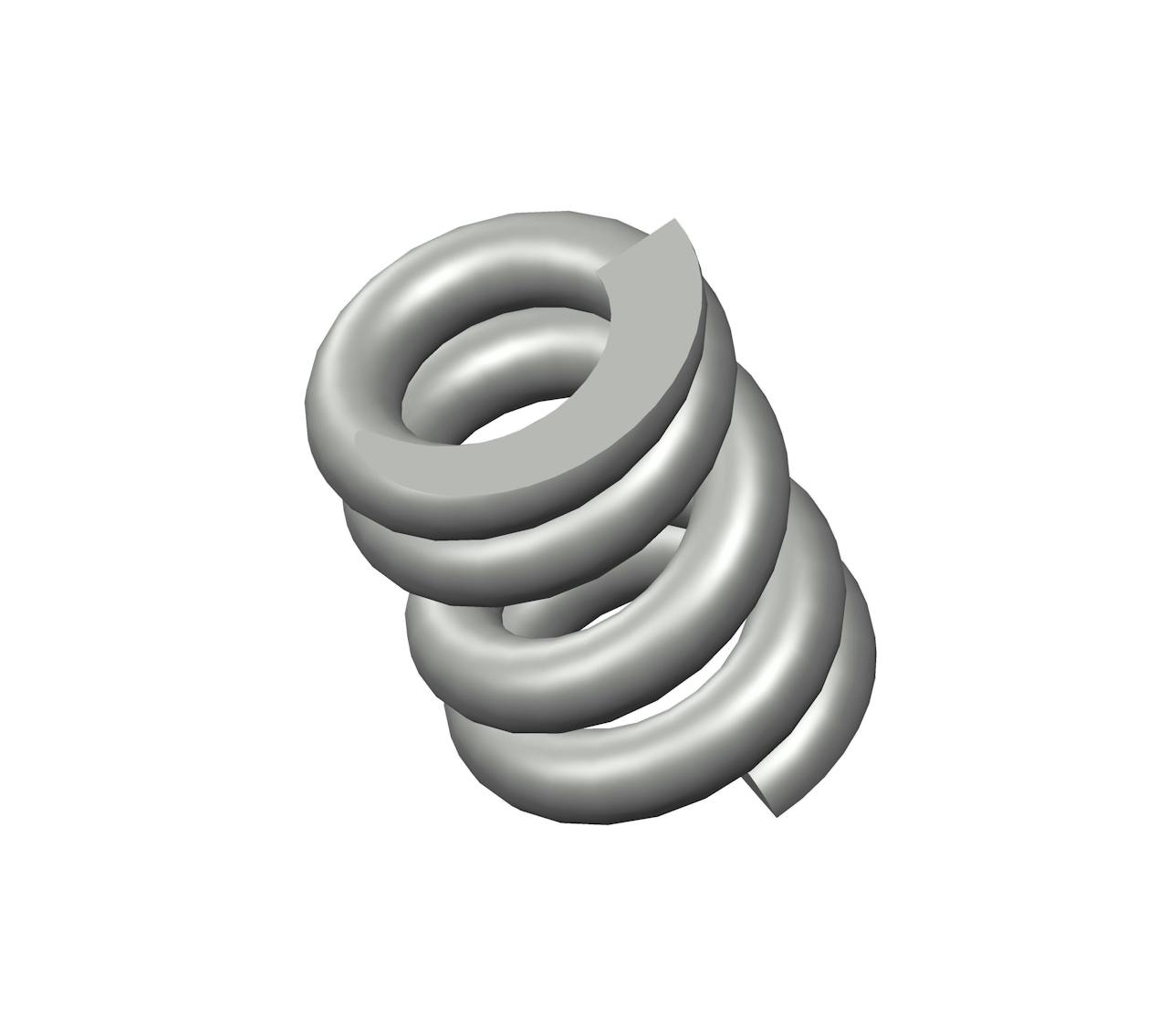

AA-2CS - 0.25" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 4.25 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.104".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name AA-2
Ends Closed & Ground
Finish None
Free Length 0.25 in
Inside Diameter 0.104 in
Material Spring Steel
Outside Diameter 0.188 in
Part Type Standard
Rate 639 lbs/in
SKU AA-2CS
Solid Length 0.19 in
Suggested Max Deflection 0.02 in
Suggested Max Load 14 lbf
Total Coils 4.25
Wire Diameter 0.042 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name AA-2
Ends Closed & Ground
Finish None
Free Length 6.35 mm
Inside Diameter 2.64 mm
Material Spring Steel
Outside Diameter 4.78 mm
Part Type Standard
Rate 111.89 N/mm
SKU AA-2CS
Solid Length 4.83 mm
Suggested Max Deflection 0.51 mm
Suggested Max Load 62.27 N
Total Coils 4.25
Wire Diameter 1.07 mm
The compression spring AA-2CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the AA-2 compression spring design exhibits exceptional tensile strength and resilience.

The AA-2 design is manufactured with a free length of 0.25", with an outer diameter of 0.188", an inner diameter of 0.104", and a total of 4.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 639 lbs/in.

The AA-2CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring AA-2 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
