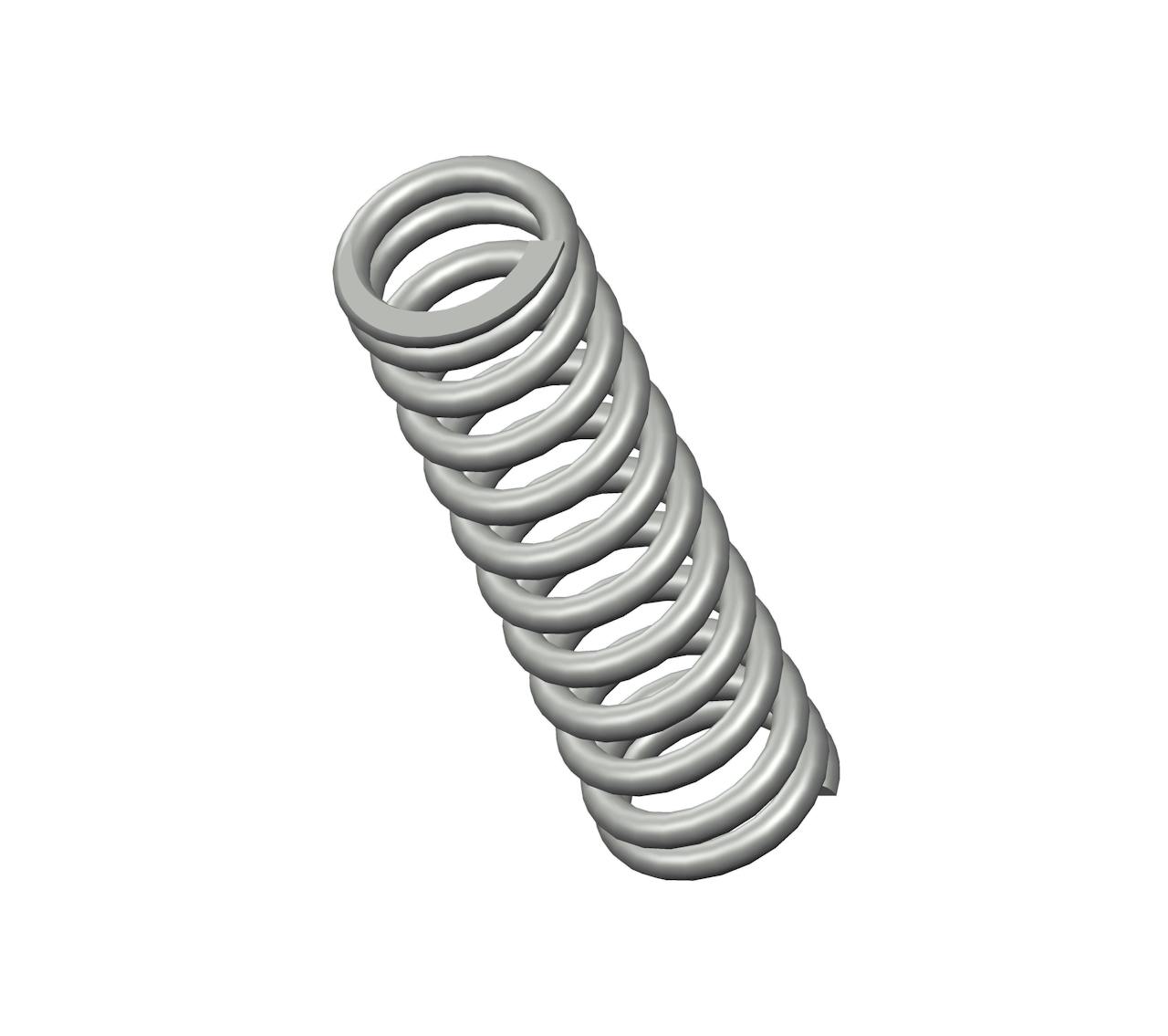

AA-1CS - 0.72" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 12 coils and closed & ground ends. This spring features an O.D. of 0.203", and an I.D. of 0.143".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | AA-1 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.72 in |
| Inside Diameter | 0.143 in |
| Material | Music Wire |
| Outside Diameter | 0.203 in |
| Part Type | Standard |
| Rate | 22 lbs/in |
| SKU | AA-1CS |
| Solid Length | 0.36 in |
| Suggested Max Deflection | 0.32 in |
| Suggested Max Load | 7.2 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | AA-1 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 18.29 mm |
| Inside Diameter | 3.63 mm |
| Material | Music Wire |
| Outside Diameter | 5.16 mm |
| Part Type | Standard |
| Rate | 3.85 N/mm |
| SKU | AA-1CS |
| Solid Length | 9.14 mm |
| Suggested Max Deflection | 8.13 mm |
| Suggested Max Load | 32.03 N |
| Total Coils | 12 |
| Wire Diameter | 0.76 mm |
The AA-1 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The AA-1CS compression spring is designed with a free length of 0.41" total of 10.5 coils, and a rate of 23 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The AA-1 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The AA-1CS compression spring is designed with a free length of 0.41" total of 10.5 coils, and a rate of 23 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The AA-1 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
