A9-67CS - 1.06" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

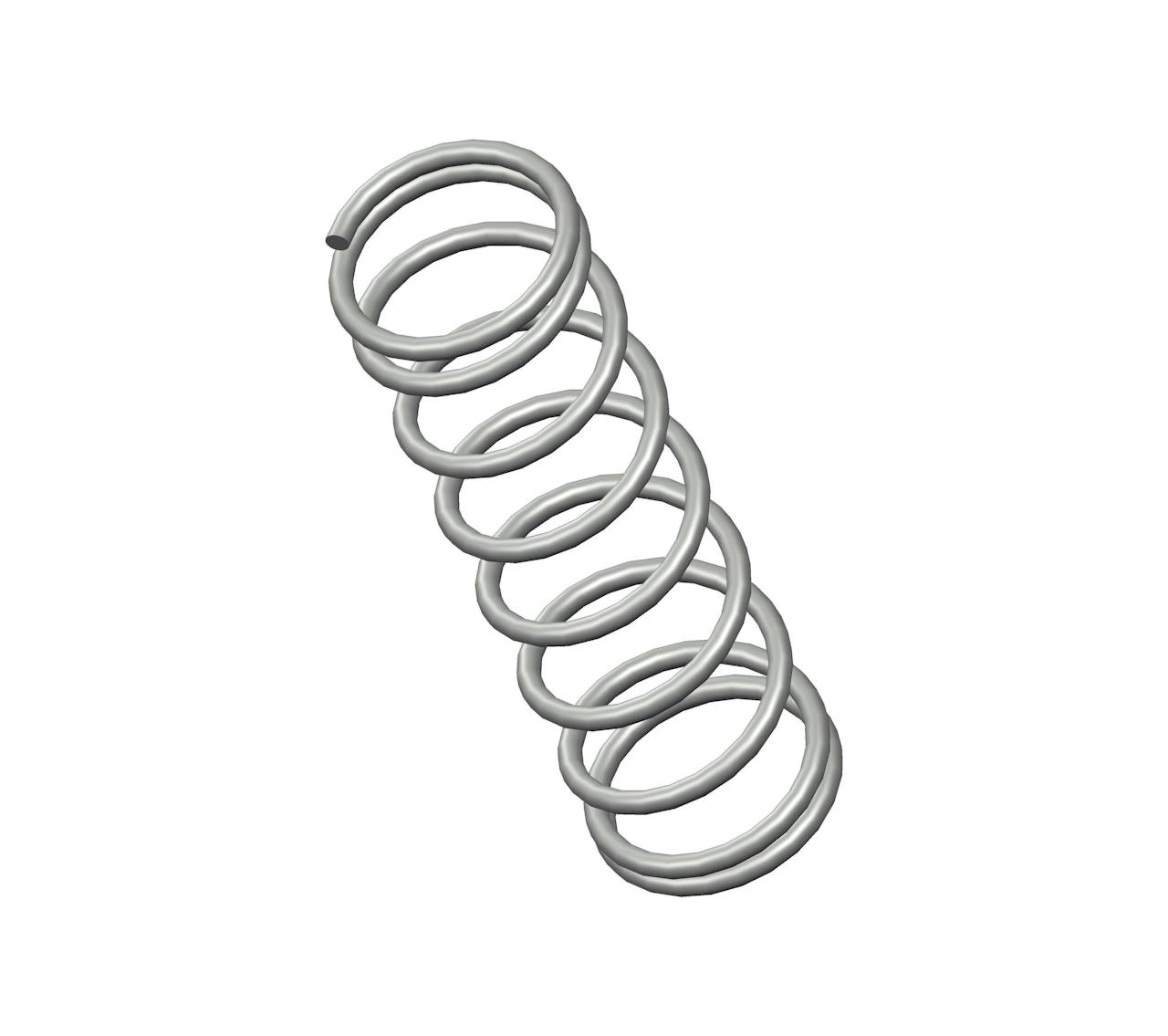

Compression spring manufactured from music wire with 9 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.254".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-67 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.06 in |
| Inside Diameter | 0.254 in |
| Material | Music Wire |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 6.4 lbs/in |
| SKU | A9-67CS |
| Solid Length | 0.29 in |
| Suggested Max Deflection | 0.68 in |
| Suggested Max Load | 4.4 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.029 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-67 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 26.92 mm |
| Inside Diameter | 6.45 mm |
| Material | Music Wire |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 1.12 N/mm |
| SKU | A9-67CS |
| Solid Length | 7.37 mm |
| Suggested Max Deflection | 17.27 mm |
| Suggested Max Load | 19.57 N |
| Total Coils | 9 |
| Wire Diameter | 0.74 mm |
The compression spring A9-67CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the A9-67 compression spring design exhibits exceptional tensile strength and resilience.
The A9-67 design is manufactured with a free length of 1.06", with an outer diameter of 0.312", an inner diameter of 0.254", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.4 lbs/in.
The A9-67CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A9-67 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A9-67 design is manufactured with a free length of 1.06", with an outer diameter of 0.312", an inner diameter of 0.254", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.4 lbs/in.
The A9-67CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A9-67 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
