A9-60CS - 0.78" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

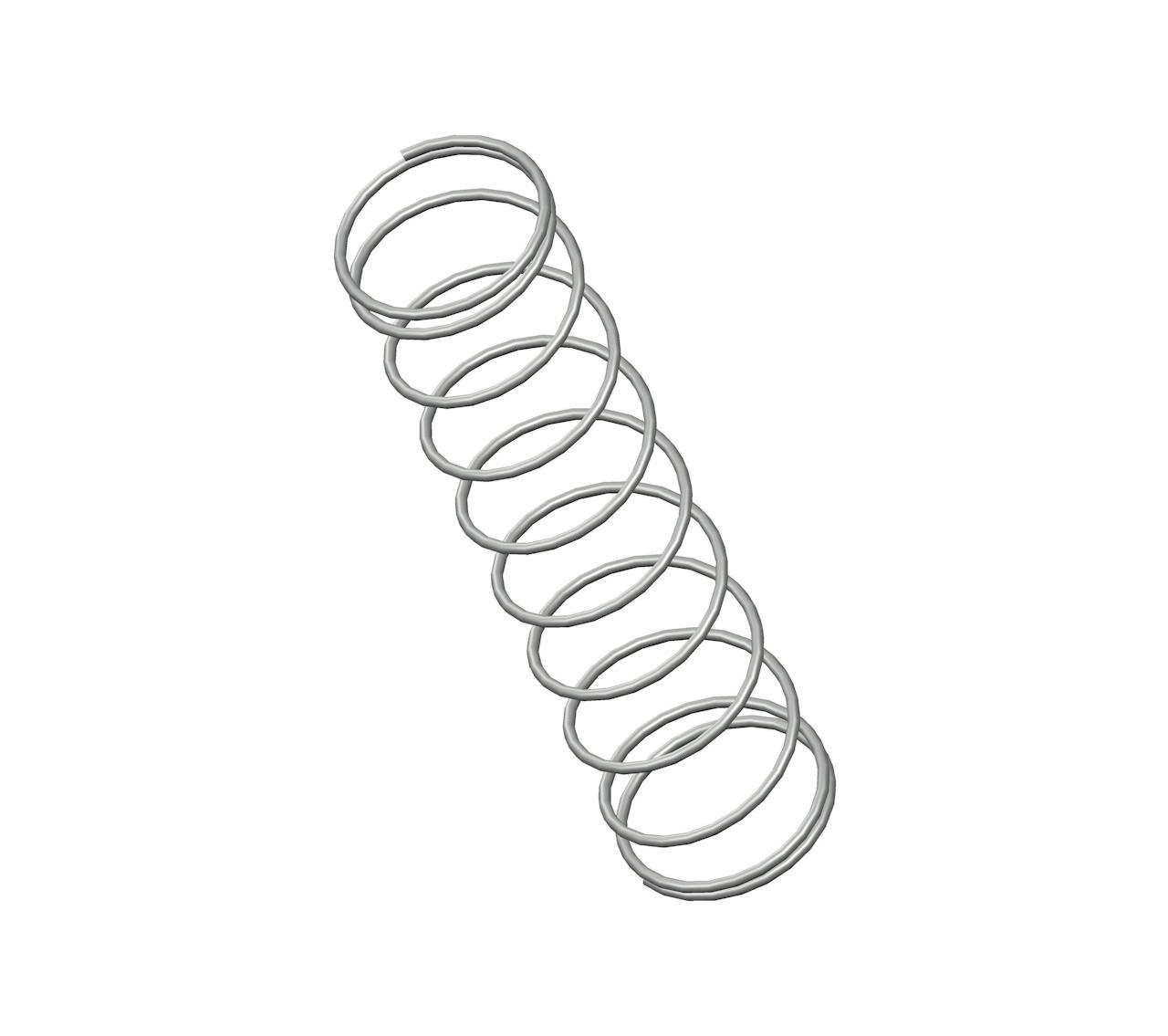

Compression spring manufactured from music wire with 10.7 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.168".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-60 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.78 in |
| Inside Diameter | 0.168 in |
| Material | Music Wire |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 0.3 lbs/in |
| SKU | A9-60CS |
| Solid Length | 0.12 in |
| Suggested Max Deflection | 0.66 in |
| Suggested Max Load | 0.2 lbf |
| Total Coils | 10.7 |
| Wire Diameter | 0.01 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-60 |
| Ends | Closed |
| Finish | None |
| Free Length | 19.81 mm |
| Inside Diameter | 4.27 mm |
| Material | Music Wire |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.05 N/mm |
| SKU | A9-60CS |
| Solid Length | 3.05 mm |
| Suggested Max Deflection | 16.76 mm |
| Suggested Max Load | 0.89 N |
| Total Coils | 10.7 |
| Wire Diameter | 0.25 mm |
The compression spring A9-60CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the A9-60 compression spring design exhibits exceptional tensile strength and resilience.
The A9-60 design is manufactured with a free length of 0.78", with an outer diameter of 0.188", an inner diameter of 0.168", and a total of 10.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.3 lbs/in.
The A9-60CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A9-60 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A9-60 design is manufactured with a free length of 0.78", with an outer diameter of 0.188", an inner diameter of 0.168", and a total of 10.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.3 lbs/in.
The A9-60CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A9-60 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
