A9-55CS - 0.47" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

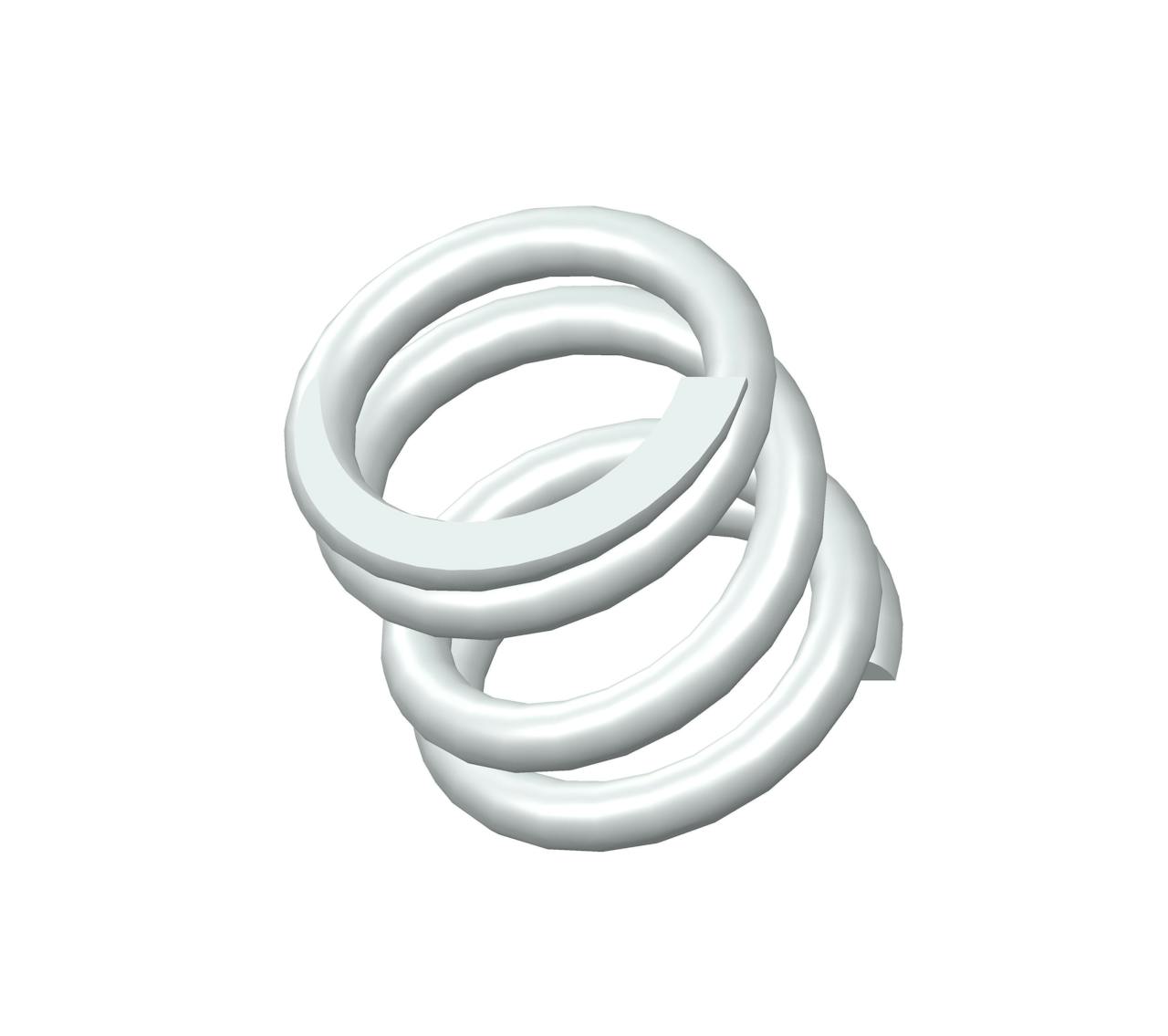

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.348".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-55 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.47 in |
| Inside Diameter | 0.348 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.484 in |
| Part Type | Standard |
| Rate | 189 lbs/in |
| SKU | A9-55CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.11 in |
| Suggested Max Load | 21 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.068 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-55 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 11.94 mm |
| Inside Diameter | 8.84 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.29 mm |
| Part Type | Standard |
| Rate | 33.09 N/mm |
| SKU | A9-55CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 2.79 mm |
| Suggested Max Load | 93.41 N |
| Total Coils | 4 |
| Wire Diameter | 1.73 mm |
The compression spring A9-55CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A9-55 compression spring design exhibits exceptional tensile strength and resilience.
The A9-55 design is manufactured with a free length of 0.47", with an outer diameter of 0.484", an inner diameter of 0.348", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 189 lbs/in.
The A9-55CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A9-55 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
