Century Spring

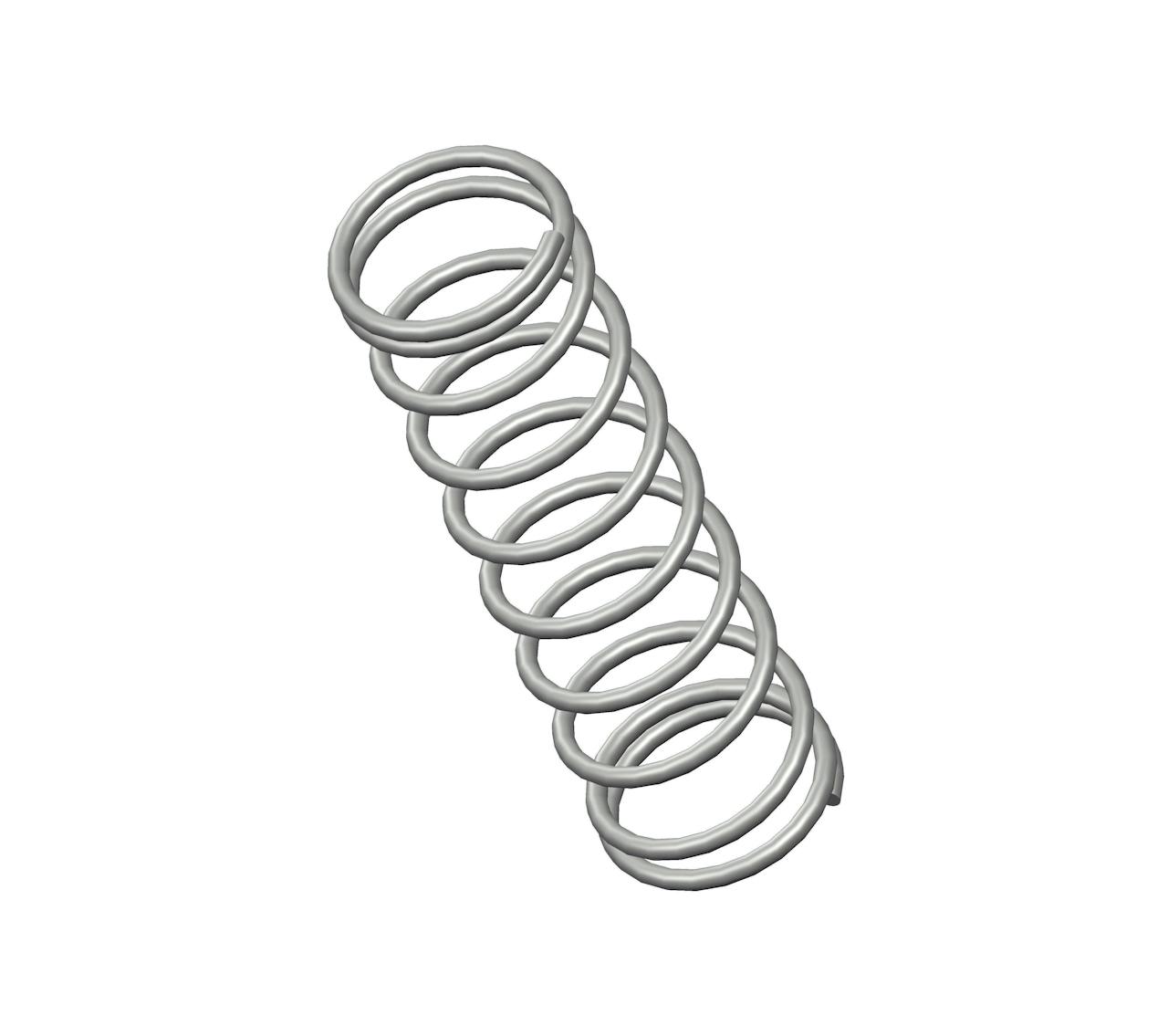

A9-41CS - 1.13" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 10 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.258".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A9-41
Ends Closed
Finish None
Free Length 1.13 in
Inside Diameter 0.258 in
Material Music Wire
Outside Diameter 0.312 in
Part Type Standard
Rate 4.1 lbs/in
SKU A9-41CS
Solid Length 0.3 in
Suggested Max Deflection 0.83 in
Suggested Max Load 3.4 lbf
Total Coils 10
Wire Diameter 0.027 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A9-41
Ends Closed
Finish None
Free Length 28.7 mm
Inside Diameter 6.55 mm
Material Music Wire
Outside Diameter 7.92 mm
Part Type Standard
Rate 0.72 N/mm
SKU A9-41CS
Solid Length 7.62 mm
Suggested Max Deflection 21.08 mm
Suggested Max Load 15.12 N
Total Coils 10
Wire Diameter 0.69 mm
The compression spring A9-41CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the A9-41 compression spring design exhibits exceptional tensile strength and resilience.

The A9-41 design is manufactured with a free length of 1.13", with an outer diameter of 0.312", an inner diameter of 0.258", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.1 lbs/in.

The A9-41CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring A9-41 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
