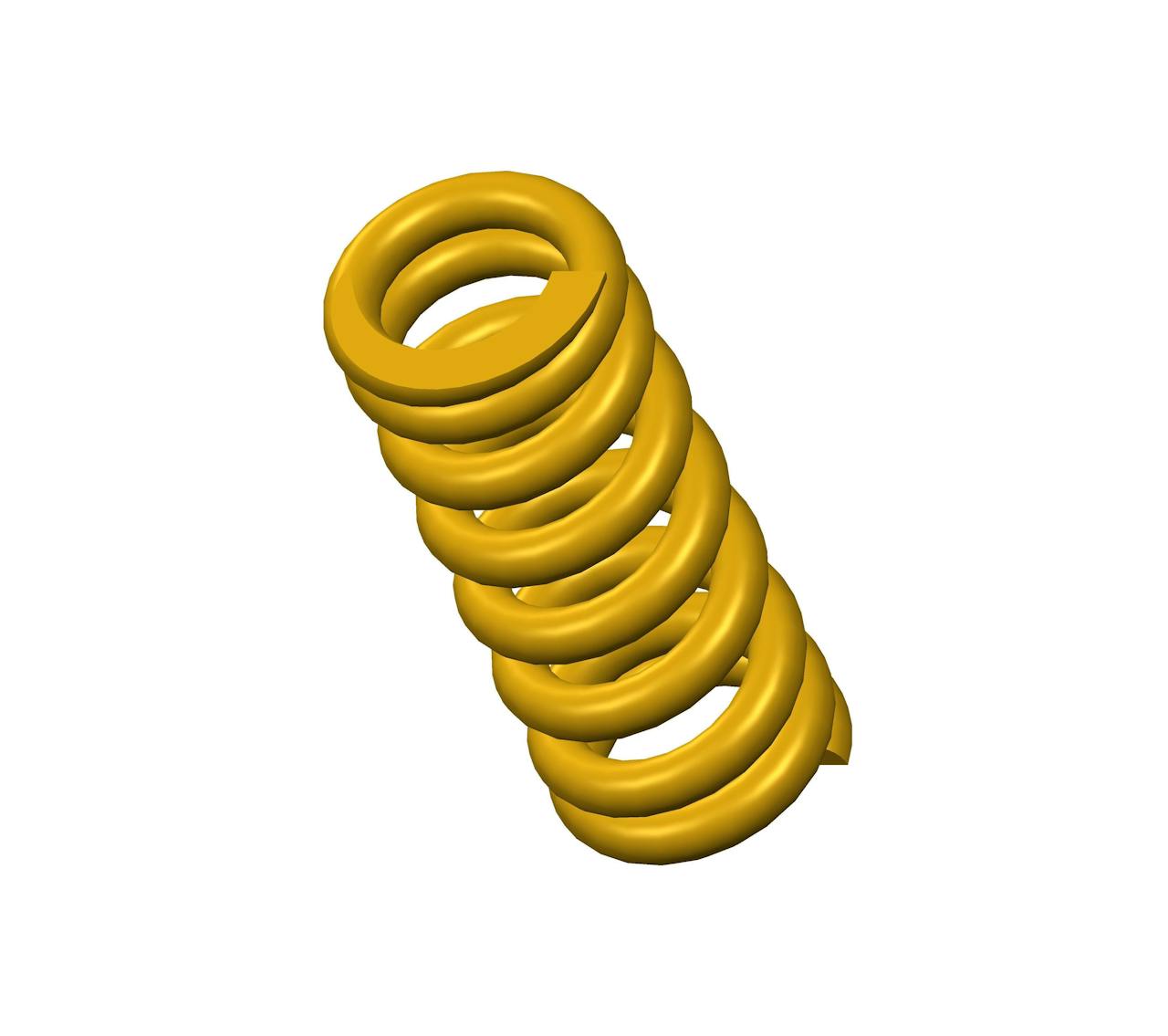

A9-39CS - 0.78" Phosphor Bronze Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from phosphor bronze with 8 coils and closed & ground ends. This spring features an O.D. of 0.304", and an I.D. of 0.19".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-39 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.78 in |
| Inside Diameter | 0.19 in |
| Material | Phosphor Bronze |
| Outside Diameter | 0.304 in |
| Part Type | Standard |
| Rate | 93 lbs/in |
| SKU | A9-39CS |
| Solid Length | 0.46 in |
| Suggested Max Deflection | 0.22 in |
| Suggested Max Load | 21 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.057 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-39 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 19.81 mm |
| Inside Diameter | 4.83 mm |
| Material | Phosphor Bronze |
| Outside Diameter | 7.72 mm |
| Part Type | Standard |
| Rate | 16.28 N/mm |
| SKU | A9-39CS |
| Solid Length | 11.68 mm |
| Suggested Max Deflection | 5.59 mm |
| Suggested Max Load | 93.41 N |
| Total Coils | 8 |
| Wire Diameter | 1.45 mm |
The A9-39 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality phosphor bronze and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The A9-39CS compression spring is designed with a free length of 0.81" total of 4 coils, and a rate of 6.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A9-39 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The A9-39CS compression spring is designed with a free length of 0.81" total of 4 coils, and a rate of 6.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A9-39 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
