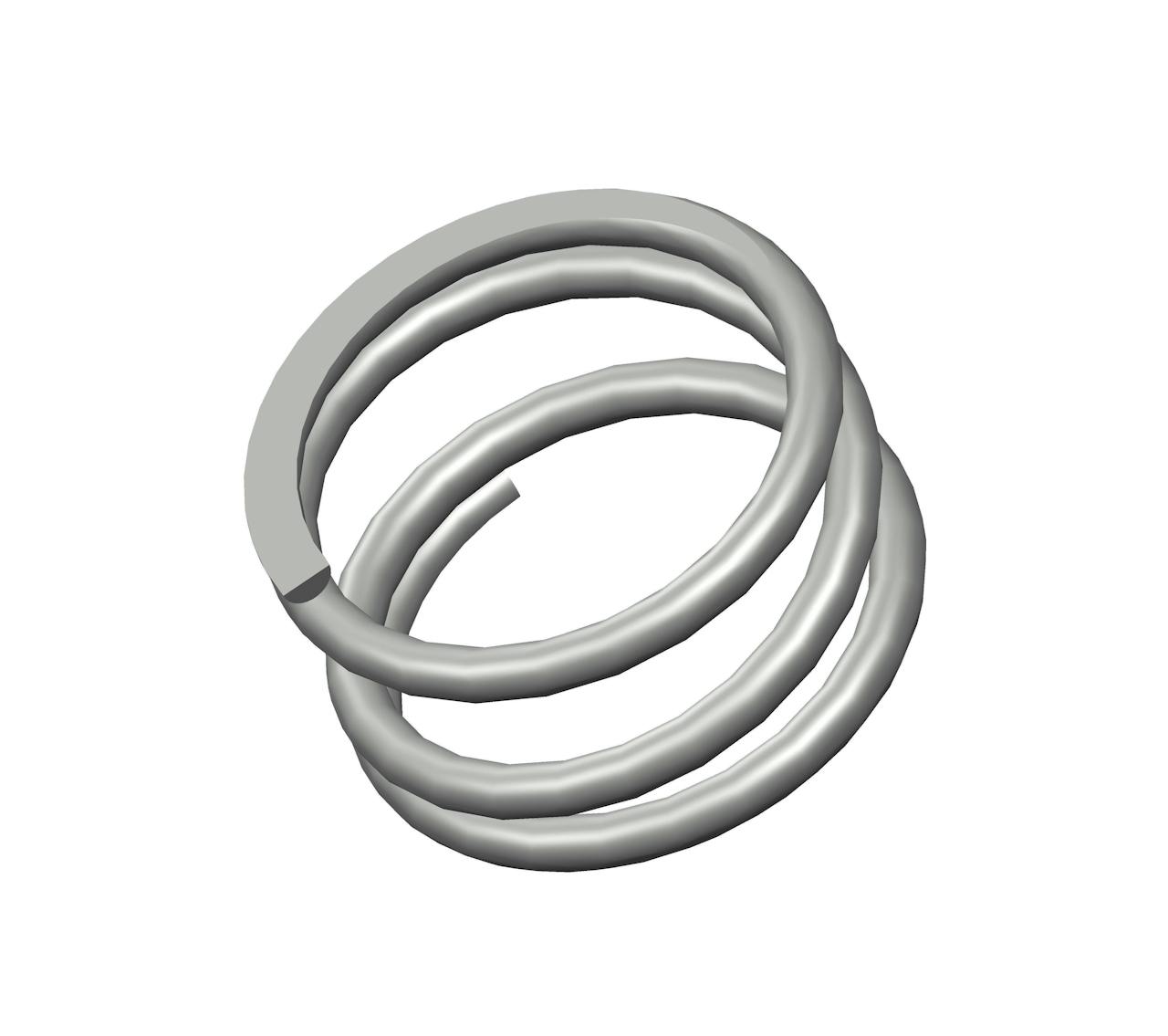

A9-35CS - 0.31" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 3.25 coils and closed & ground ends. This spring features an O.D. of 0.562", and an I.D. of 0.46".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-35 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.31 in |
| Inside Diameter | 0.46 in |
| Material | Spring Steel |
| Outside Diameter | 0.562 in |
| Part Type | Standard |
| Rate | 58 lbs/in |
| SKU | A9-35CS |
| Solid Length | 0.17 in |
| Suggested Max Deflection | 0.15 in |
| Suggested Max Load | 8.5 lbf |
| Total Coils | 3.25 |
| Wire Diameter | 0.051 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-35 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 7.87 mm |
| Inside Diameter | 11.68 mm |
| Material | Spring Steel |
| Outside Diameter | 14.27 mm |
| Part Type | Standard |
| Rate | 10.16 N/mm |
| SKU | A9-35CS |
| Solid Length | 4.32 mm |
| Suggested Max Deflection | 3.81 mm |
| Suggested Max Load | 37.81 N |
| Total Coils | 3.25 |
| Wire Diameter | 1.3 mm |
The compression spring A9-35CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A9-35 compression spring design exhibits exceptional tensile strength and resilience.
The A9-35 design is manufactured with a free length of 0.31", with an outer diameter of 0.562", an inner diameter of 0.46", and a total of 3.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 58 lbs/in.
The A9-35CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A9-35 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
