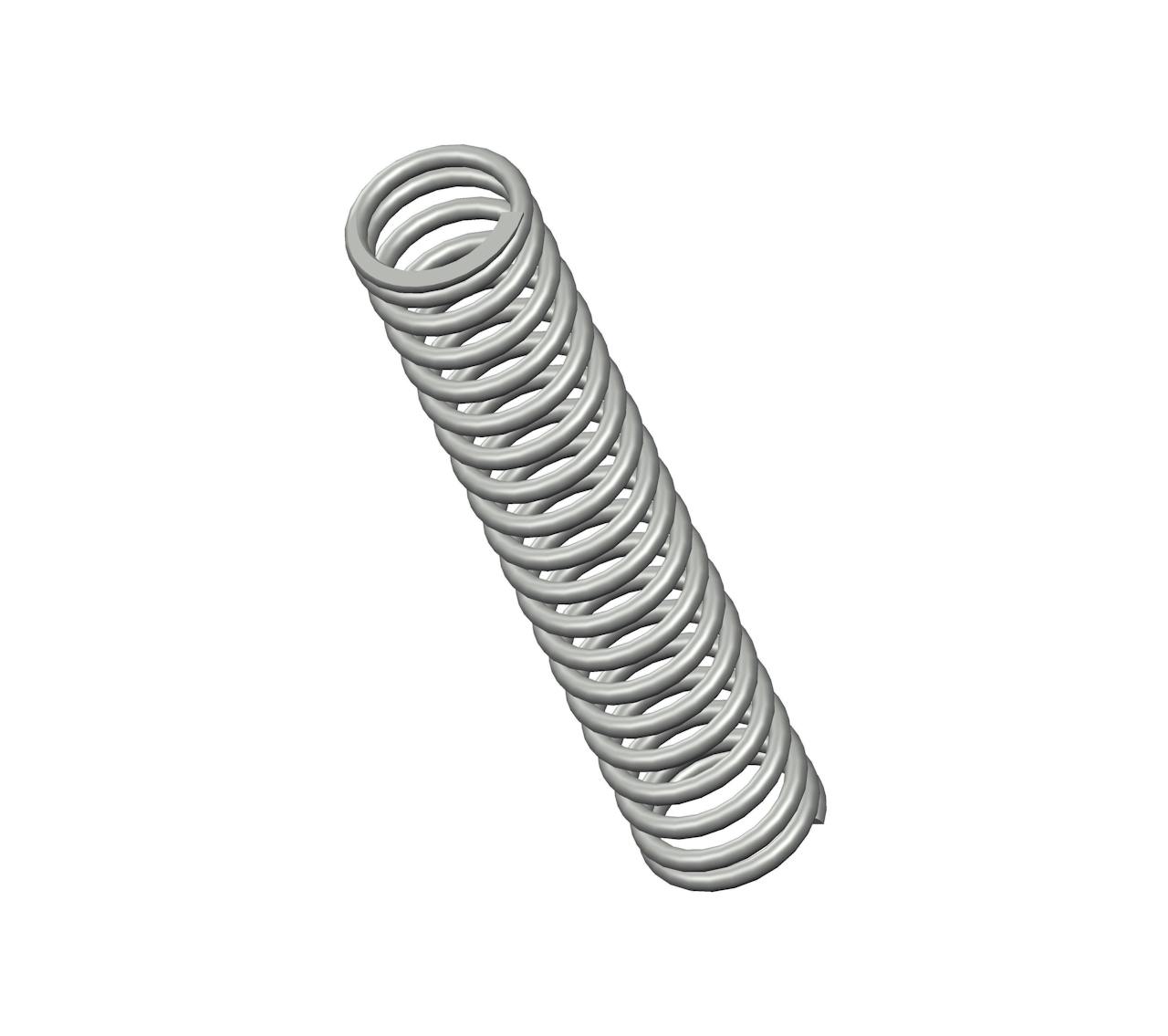

A9-30CS - 2.06" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 20 coils and closed & ground ends. This spring features an O.D. of 0.406", and an I.D. of 0.31".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-30 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 2.06 in |
| Inside Diameter | 0.31 in |
| Material | Spring Steel |
| Outside Diameter | 0.406 in |
| Part Type | Standard |
| Rate | 9.2 lbs/in |
| SKU | A9-30CS |
| Solid Length | 0.96 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 10 lbf |
| Total Coils | 20 |
| Wire Diameter | 0.048 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A9-30 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 52.32 mm |
| Inside Diameter | 7.87 mm |
| Material | Spring Steel |
| Outside Diameter | 10.31 mm |
| Part Type | Standard |
| Rate | 1.61 N/mm |
| SKU | A9-30CS |
| Solid Length | 24.38 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 44.48 N |
| Total Coils | 20 |
| Wire Diameter | 1.22 mm |
The compression spring A9-30CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A9-30 compression spring design exhibits exceptional tensile strength and resilience.
The A9-30 design is manufactured with a free length of 2.06", with an outer diameter of 0.406", an inner diameter of 0.31", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.2 lbs/in.
The A9-30CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A9-30 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A9-30 design is manufactured with a free length of 2.06", with an outer diameter of 0.406", an inner diameter of 0.31", and a total of 20 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.2 lbs/in.
The A9-30CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A9-30 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
