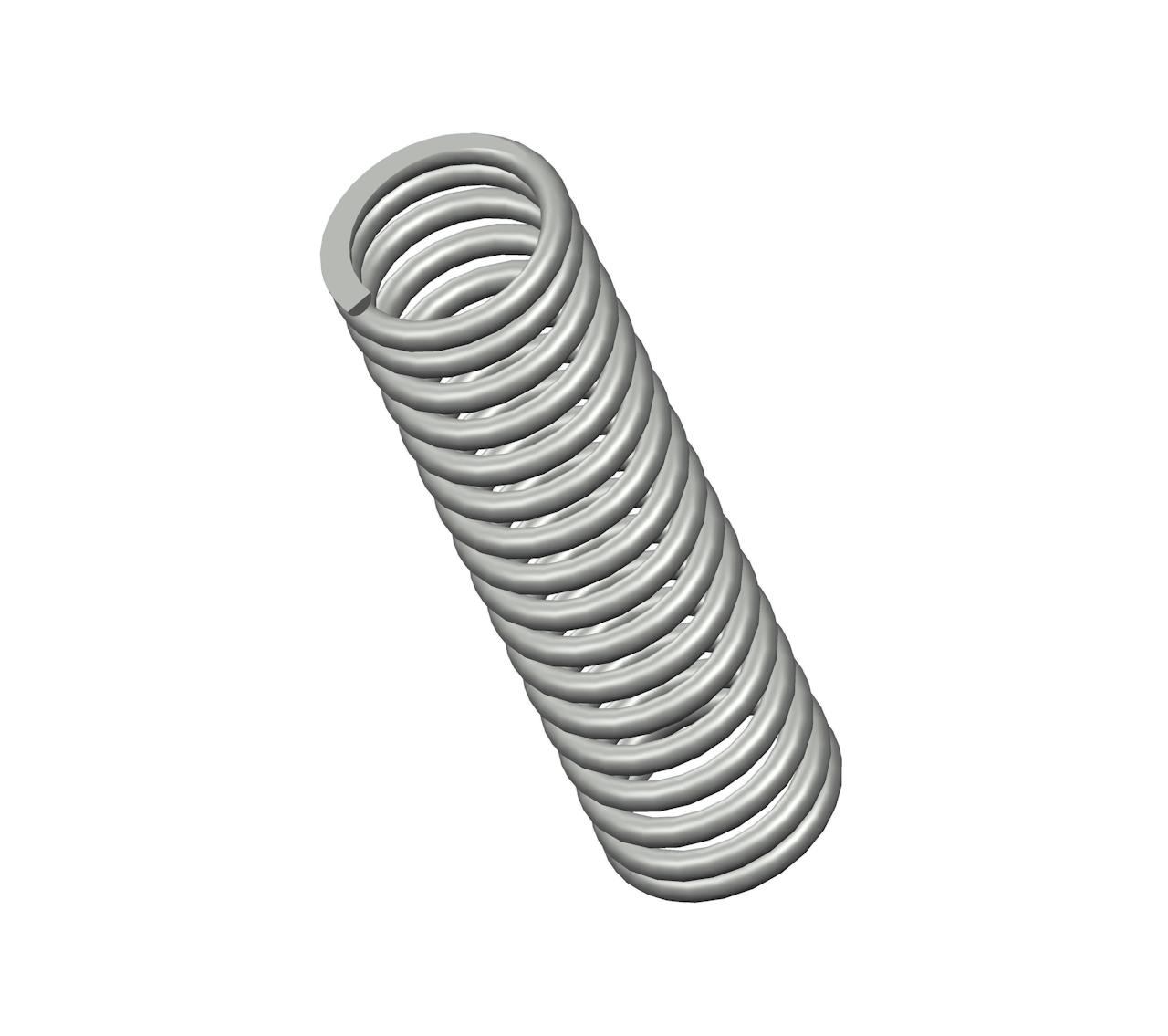

A16-68CS - 1.5" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 17.3 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.318".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A16-68
Ends Closed & Ground
Finish None
Free Length 1.5 in
Inside Diameter 0.318 in
Material Music Wire
Outside Diameter 0.42 in
Part Type Standard
Rate 13 lbs/in
SKU A16-68CS
Solid Length 0.88 in
Suggested Max Deflection 0.62 in
Suggested Max Load 7.9 lbf
Total Coils 17.3
Wire Diameter 0.051 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A16-68
Ends Closed & Ground
Finish None
Free Length 38.1 mm
Inside Diameter 8.08 mm
Material Music Wire
Outside Diameter 10.67 mm
Part Type Standard
Rate 2.28 N/mm
SKU A16-68CS
Solid Length 22.35 mm
Suggested Max Deflection 15.75 mm
Suggested Max Load 35.14 N
Total Coils 17.3
Wire Diameter 1.3 mm
The A16-68CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.051" diameter music wire, the A16-68 spring design exhibits reliable strength across its 17.3 active coils, withstanding repeated compression cycles with a maximum load of 7.9 lbf without succumbing to fatigue.

We manufacture the A16-68 design to provide a compression spring that is 1.5" long at rest and provides a consistent rate of 13 lbs/in along its recommended maximum of 0.62" deflection. For best results, your application should fully accommodate the inner (0.318") and outer (0.42") diameters of this spring and be designed for its closed & ground end configuration.
