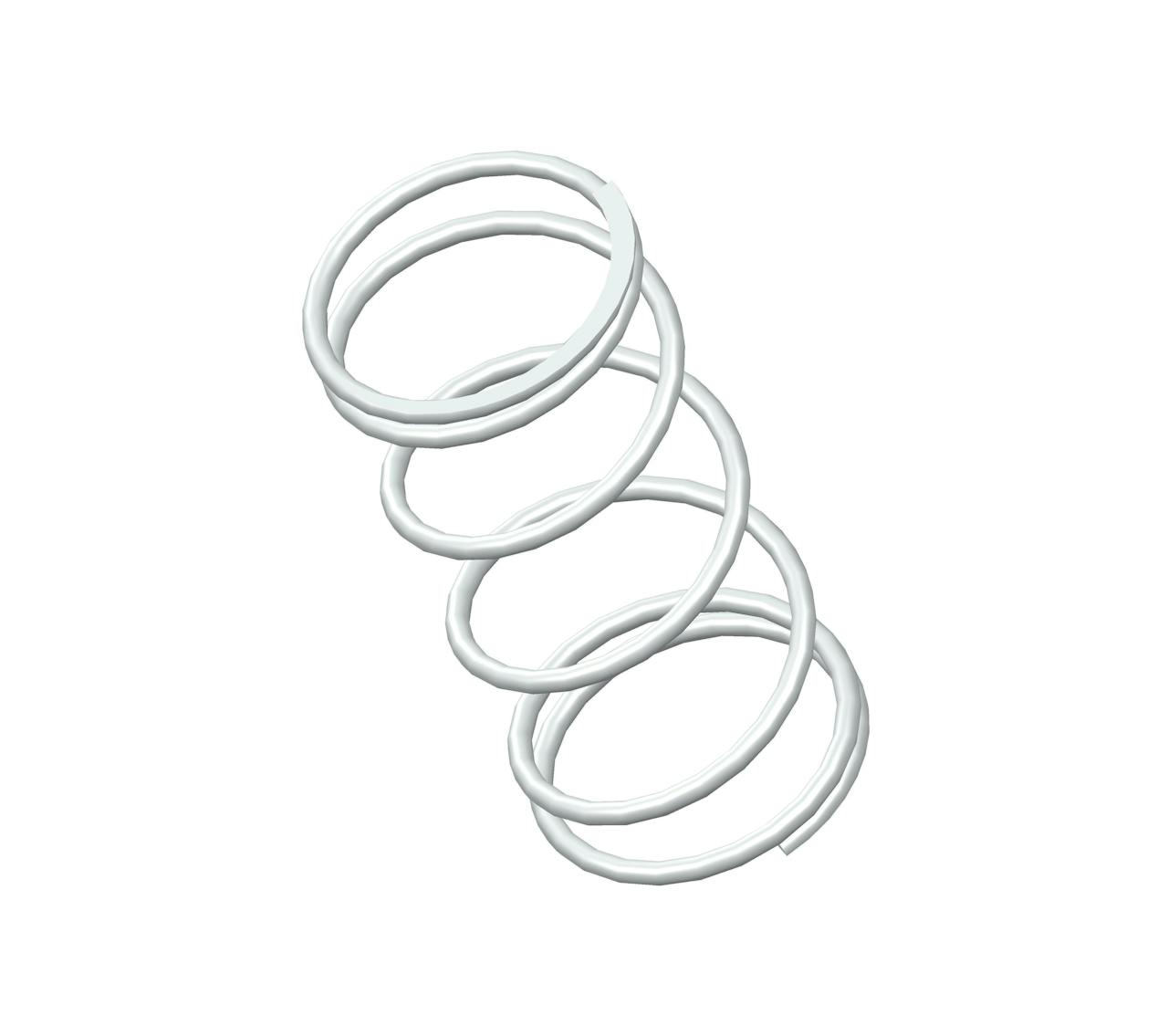

A15-68CS - 1.19" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6.25 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.47".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A15-68 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.19 in |
| Inside Diameter | 0.47 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.546 in |
| Part Type | Standard |
| Rate | 4.8 lbs/in |
| SKU | A15-68CS |
| Solid Length | 0.24 in |
| Suggested Max Deflection | 0.77 in |
| Suggested Max Load | 3.7 lbf |
| Total Coils | 6.25 |
| Wire Diameter | 0.038 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A15-68 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 30.23 mm |
| Inside Diameter | 11.94 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.87 mm |
| Part Type | Standard |
| Rate | 0.84 N/mm |
| SKU | A15-68CS |
| Solid Length | 6.1 mm |
| Suggested Max Deflection | 19.56 mm |
| Suggested Max Load | 16.46 N |
| Total Coils | 6.25 |
| Wire Diameter | 0.97 mm |
The compression spring A15-68CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A15-68 compression spring design exhibits exceptional tensile strength and resilience.
The A15-68 design is manufactured with a free length of 1.19", with an outer diameter of 0.546", an inner diameter of 0.47", and a total of 6.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.8 lbs/in.
The A15-68CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A15-68 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A15-68 design is manufactured with a free length of 1.19", with an outer diameter of 0.546", an inner diameter of 0.47", and a total of 6.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.8 lbs/in.
The A15-68CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A15-68 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
