Century Spring

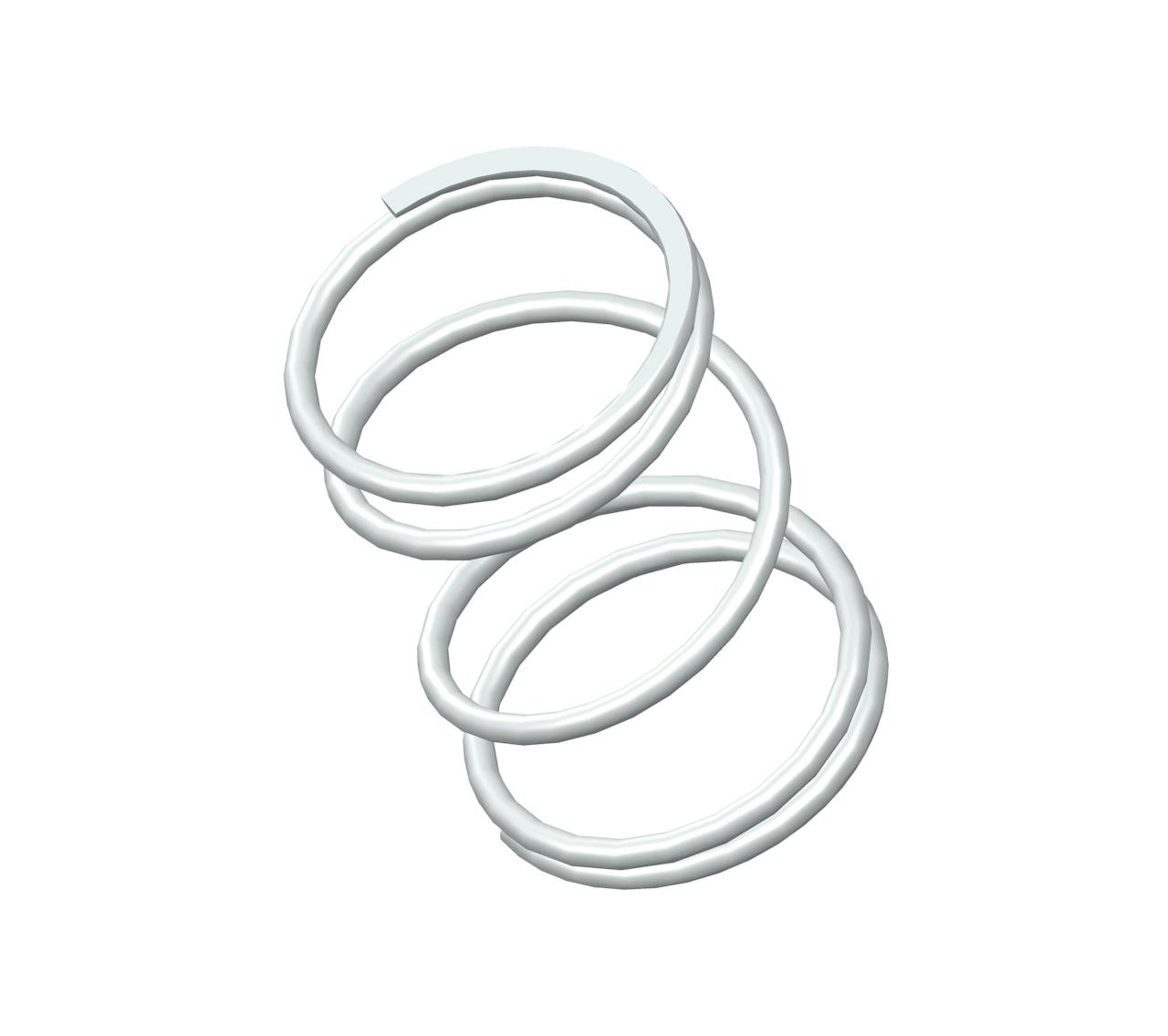

A15-52CS - 1.25" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4.75 coils and closed & ground ends. This spring features an O.D. of 0.859", and an I.D. of 0.737".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A15-52
Ends Closed & Ground
Finish None
Free Length 1.25 in
Inside Diameter 0.737 in
Material 302/304 Stainless Steel
Outside Diameter 0.859 in
Part Type Standard
Rate 14 lbs/in
SKU A15-52CS
Solid Length 0.3 in
Suggested Max Deflection 0.63 in
Suggested Max Load 9.1 lbf
Total Coils 4.75
Wire Diameter 0.061 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A15-52
Ends Closed & Ground
Finish None
Free Length 31.75 mm
Inside Diameter 18.72 mm
Material 302/304 Stainless Steel
Outside Diameter 21.82 mm
Part Type Standard
Rate 2.45 N/mm
SKU A15-52CS
Solid Length 7.62 mm
Suggested Max Deflection 16 mm
Suggested Max Load 40.48 N
Total Coils 4.75
Wire Diameter 1.55 mm
The A15-52CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.061" diameter 302/304 stainless steel, the A15-52 spring design exhibits reliable strength across its 4.75 active coils, withstanding repeated compression cycles with a maximum load of 9.1 lbf without succumbing to fatigue.

We manufacture the A15-52 design to provide a compression spring that is 1.25" long at rest and provides a consistent rate of 14 lbs/in along its recommended maximum of 0.63" deflection. For best results, your application should fully accommodate the inner (0.737") and outer (0.859") diameters of this spring and be designed for its closed & ground end configuration.
