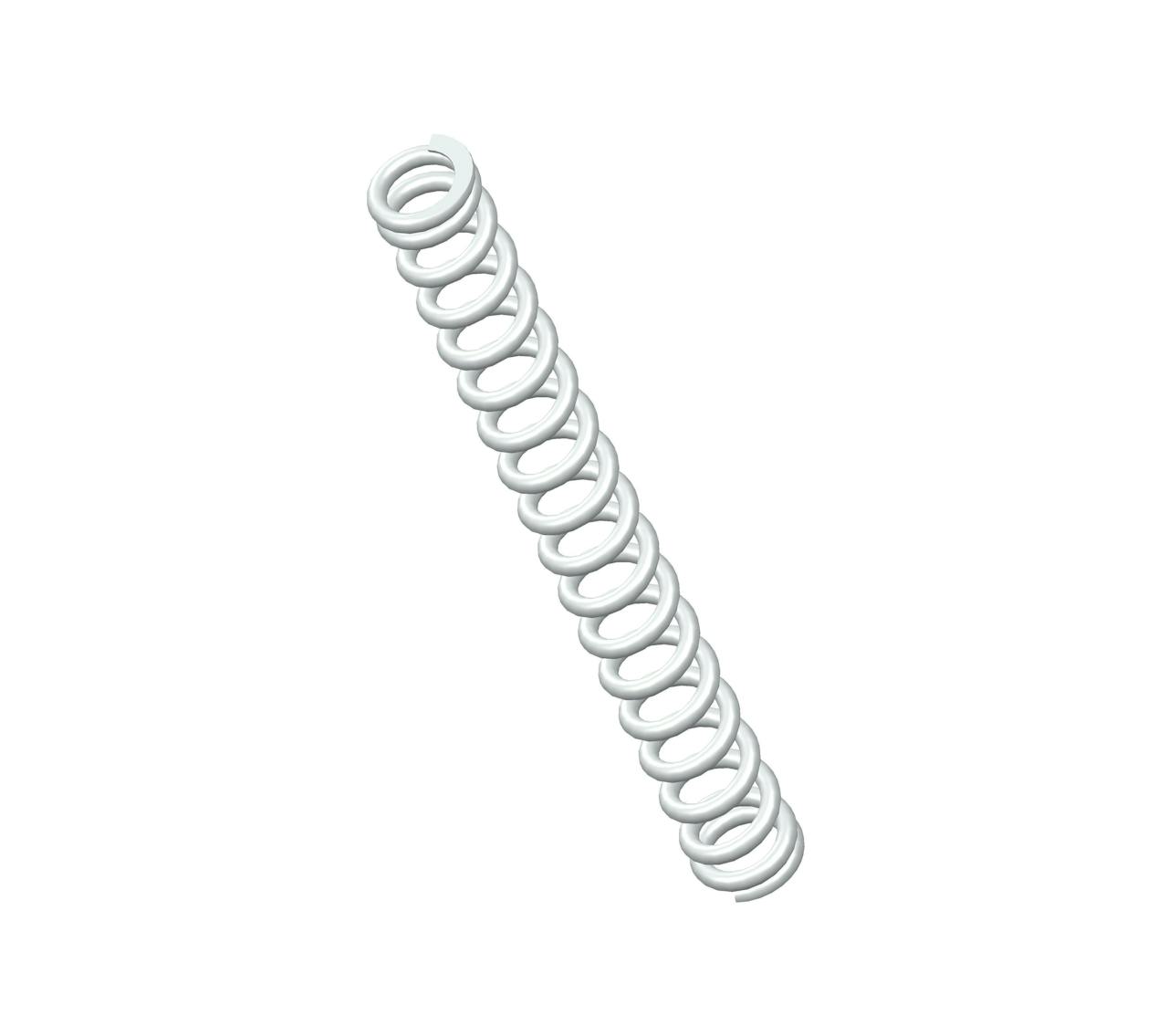

A15-48CS - 1.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 18.5 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.122".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A15-48 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.75 in |
| Inside Diameter | 0.122 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 25 lbs/in |
| SKU | A15-48CS |
| Solid Length | 0.61 in |
| Suggested Max Deflection | 0.27 in |
| Suggested Max Load | 6.8 lbf |
| Total Coils | 18.5 |
| Wire Diameter | 0.033 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A15-48 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 44.45 mm |
| Inside Diameter | 3.1 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 4.38 N/mm |
| SKU | A15-48CS |
| Solid Length | 15.49 mm |
| Suggested Max Deflection | 6.86 mm |
| Suggested Max Load | 30.25 N |
| Total Coils | 18.5 |
| Wire Diameter | 0.84 mm |
The compression spring A15-48CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A15-48 compression spring design exhibits exceptional tensile strength and resilience.
The A15-48 design is manufactured with a free length of 1.75", with an outer diameter of 0.188", an inner diameter of 0.122", and a total of 18.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 25 lbs/in.
The A15-48CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A15-48 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A15-48 design is manufactured with a free length of 1.75", with an outer diameter of 0.188", an inner diameter of 0.122", and a total of 18.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 25 lbs/in.
The A15-48CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A15-48 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
