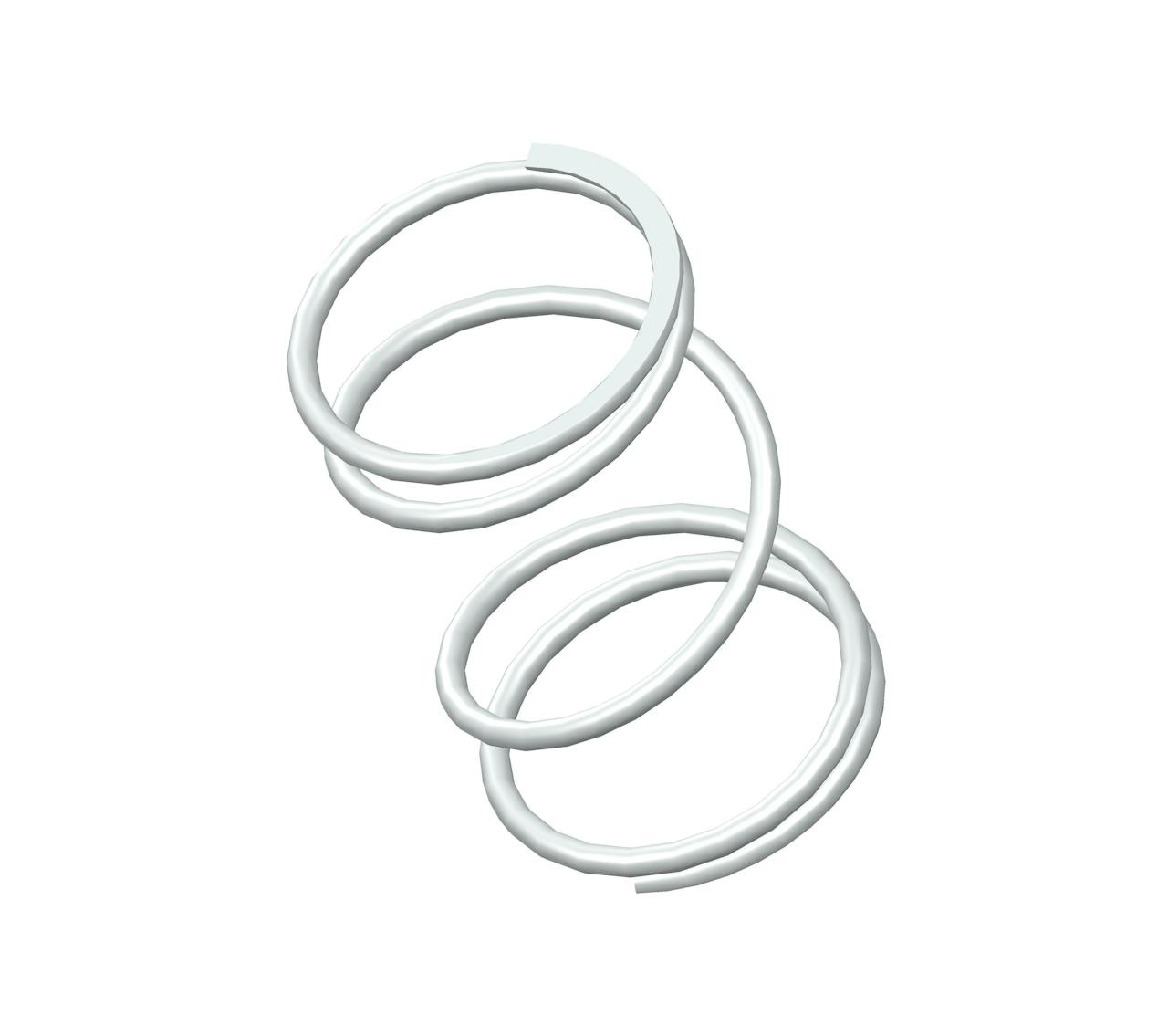

A15-35CS - 1.03" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 4.5 coils and closed & ground ends. This spring features an O.D. of 0.64", and an I.D. of 0.548".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A15-35 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.03 in |
| Inside Diameter | 0.548 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.64 in |
| Part Type | Standard |
| Rate | 11 lbs/in |
| SKU | A15-35CS |
| Solid Length | 0.21 in |
| Suggested Max Deflection | 0.51 in |
| Suggested Max Load | 5.6 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.046 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A15-35 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 26.16 mm |
| Inside Diameter | 13.92 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 16.26 mm |
| Part Type | Standard |
| Rate | 1.93 N/mm |
| SKU | A15-35CS |
| Solid Length | 5.33 mm |
| Suggested Max Deflection | 12.95 mm |
| Suggested Max Load | 24.91 N |
| Total Coils | 4.5 |
| Wire Diameter | 1.17 mm |
The A15-35 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The A15-35CS compression spring is designed with a free length of 0.41" total of 5 coils, and a rate of 31 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A15-35 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The A15-35CS compression spring is designed with a free length of 0.41" total of 5 coils, and a rate of 31 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A15-35 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
