A15-34CS - 0.41" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

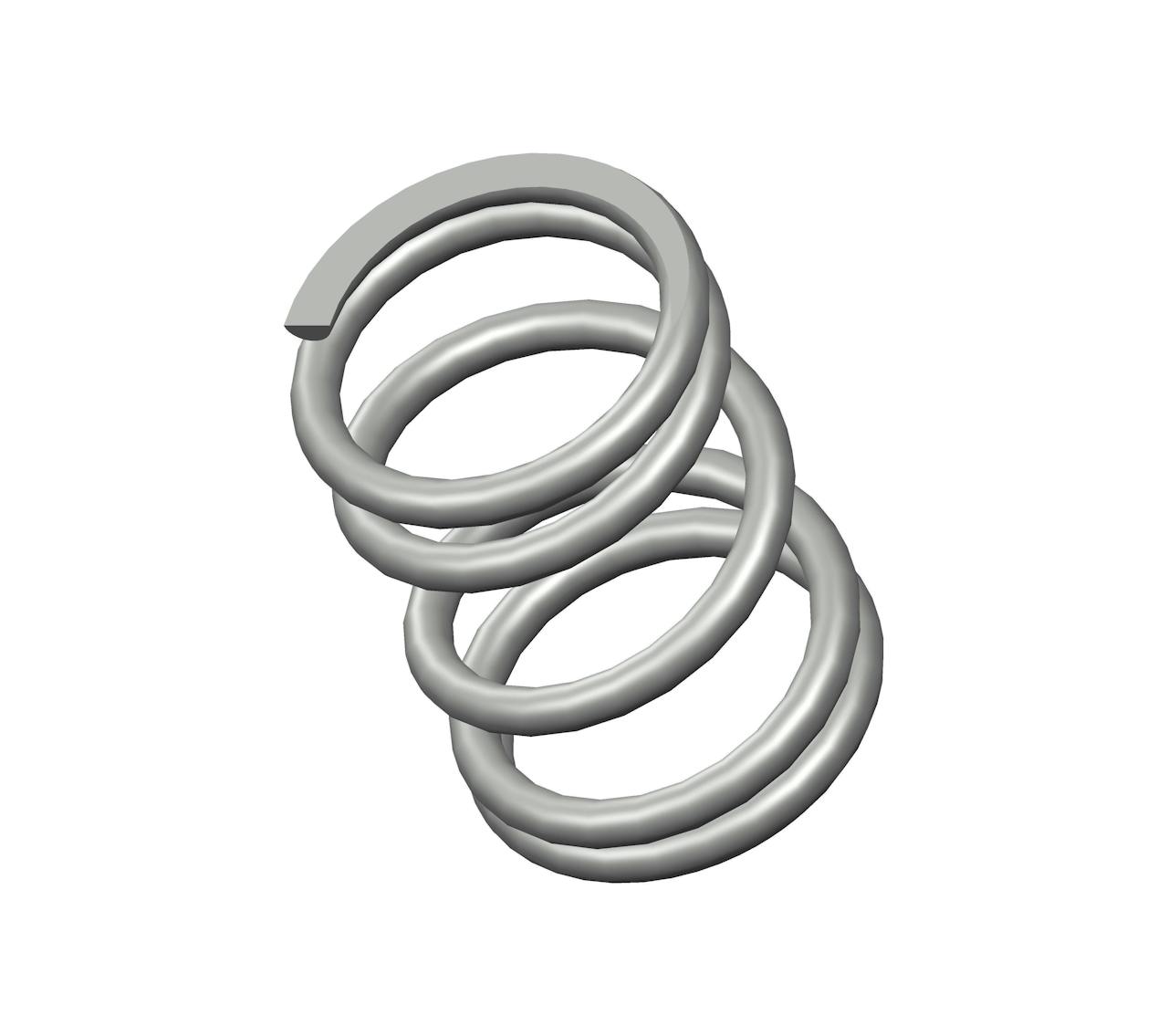

Compression spring manufactured from music wire with 5 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.23".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A15-34 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.41 in |
| Inside Diameter | 0.23 in |
| Material | Music Wire |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 31 lbs/in |
| SKU | A15-34CS |
| Solid Length | 0.17 in |
| Suggested Max Deflection | 0.22 in |
| Suggested Max Load | 6.7 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.033 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A15-34 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 10.41 mm |
| Inside Diameter | 5.84 mm |
| Material | Music Wire |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 5.43 N/mm |
| SKU | A15-34CS |
| Solid Length | 4.32 mm |
| Suggested Max Deflection | 5.59 mm |
| Suggested Max Load | 29.8 N |
| Total Coils | 5 |
| Wire Diameter | 0.84 mm |
The compression spring A15-34CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the A15-34 compression spring design exhibits exceptional tensile strength and resilience.
The A15-34 design is manufactured with a free length of 0.41", with an outer diameter of 0.296", an inner diameter of 0.23", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The A15-34CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A15-34 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A15-34 design is manufactured with a free length of 0.41", with an outer diameter of 0.296", an inner diameter of 0.23", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The A15-34CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A15-34 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
