A14-4CS - 0.56" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

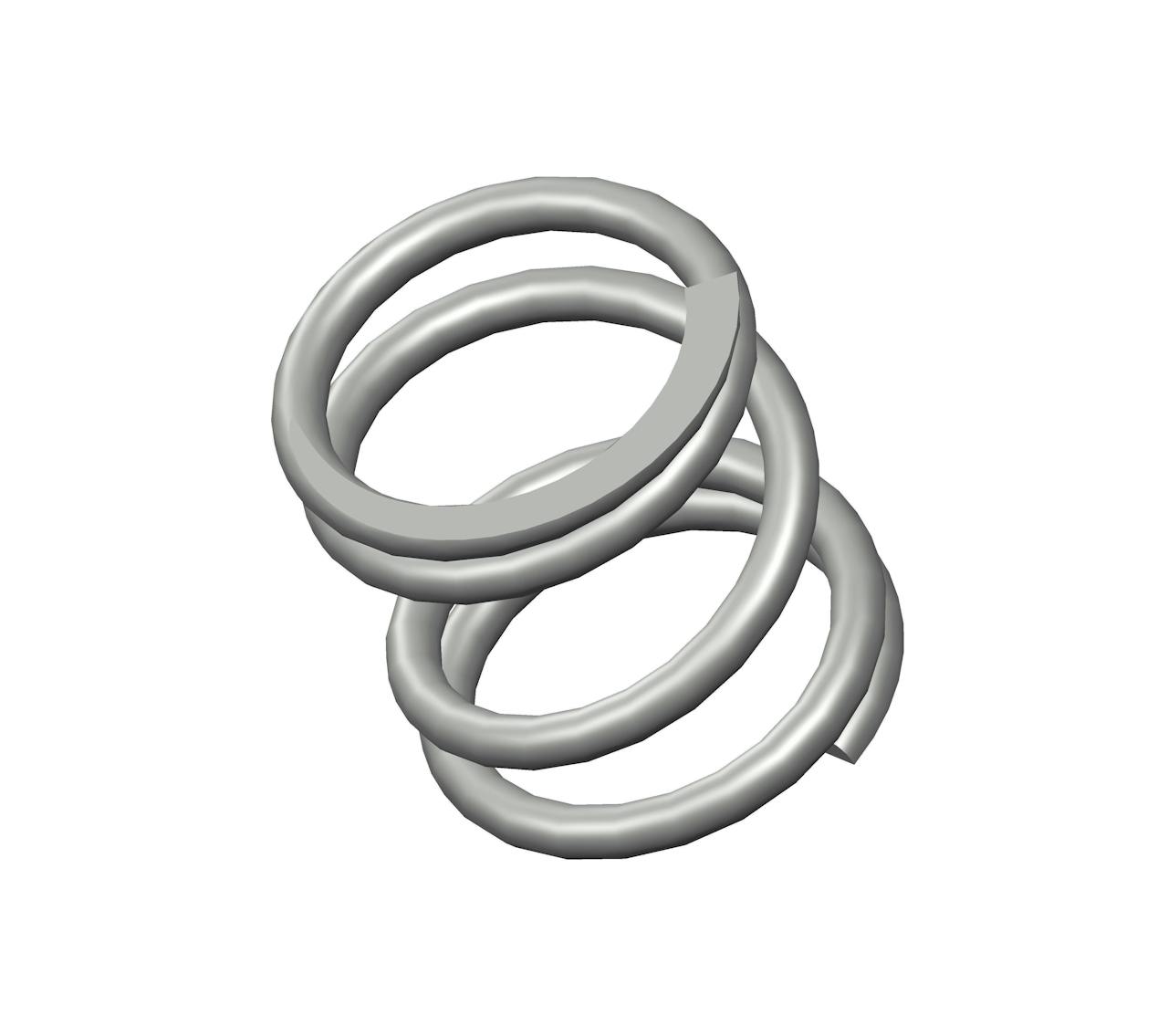

Compression spring manufactured from spring steel with 4.13 coils and closed & ground ends. This spring features an O.D. of 0.515", and an I.D. of 0.401".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-4 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.56 in |
| Inside Diameter | 0.401 in |
| Material | Spring Steel |
| Outside Diameter | 0.515 in |
| Part Type | Standard |
| Rate | 74 lbs/in |
| SKU | A14-4CS |
| Solid Length | 0.24 in |
| Suggested Max Deflection | 0.17 in |
| Suggested Max Load | 13 lbf |
| Total Coils | 4.13 |
| Wire Diameter | 0.057 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-4 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 14.22 mm |
| Inside Diameter | 10.19 mm |
| Material | Spring Steel |
| Outside Diameter | 13.08 mm |
| Part Type | Standard |
| Rate | 12.96 N/mm |
| SKU | A14-4CS |
| Solid Length | 6.1 mm |
| Suggested Max Deflection | 4.32 mm |
| Suggested Max Load | 57.82 N |
| Total Coils | 4.13 |
| Wire Diameter | 1.45 mm |
The compression spring A14-4CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A14-4 compression spring design exhibits exceptional tensile strength and resilience.
The A14-4 design is manufactured with a free length of 0.56", with an outer diameter of 0.515", an inner diameter of 0.401", and a total of 4.13 coils, expertly designed to deliver consistent compression characteristics including a rate of 74 lbs/in.
The A14-4CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A14-4 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A14-4 design is manufactured with a free length of 0.56", with an outer diameter of 0.515", an inner diameter of 0.401", and a total of 4.13 coils, expertly designed to deliver consistent compression characteristics including a rate of 74 lbs/in.
The A14-4CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A14-4 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
