A14-47CS - 0.81" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

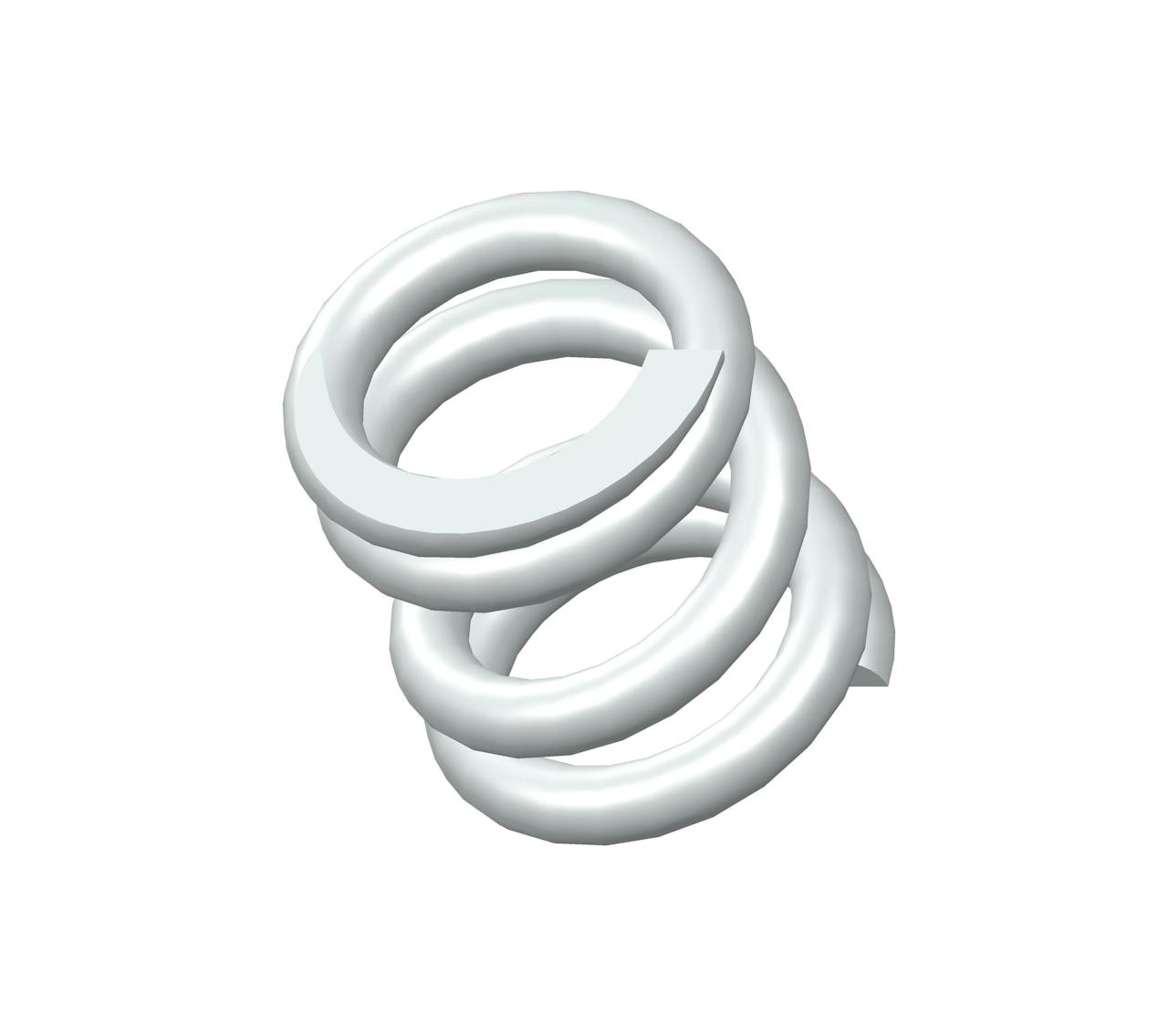

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.718", and an I.D. of 0.478".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A14-47
Ends Closed & Ground
Finish None
Free Length 0.81 in
Inside Diameter 0.478 in
Material 302/304 Stainless Steel
Outside Diameter 0.718 in
Part Type Standard
Rate 612 lbs/in
SKU A14-47CS
Solid Length 0.48 in
Suggested Max Deflection 0.11 in
Suggested Max Load 67 lbf
Total Coils 4
Wire Diameter 0.12 in
The compression spring A14-47CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A14-47 compression spring design exhibits exceptional tensile strength and resilience.

The A14-47 design is manufactured with a free length of 0.81", with an outer diameter of 0.718", an inner diameter of 0.478", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 612 lbs/in.

The A14-47CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring A14-47 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
