Century Spring

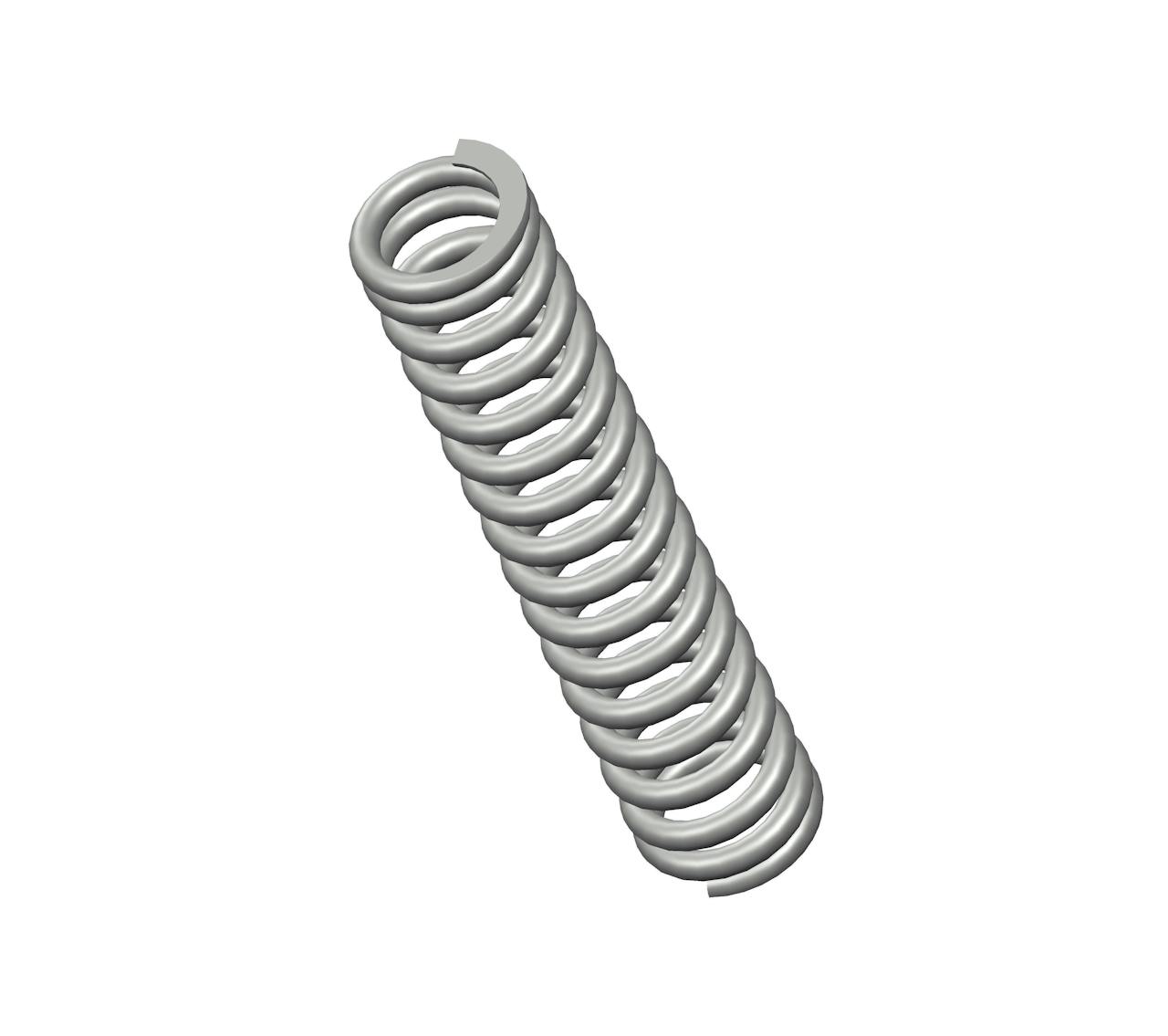

A14-3CS - 1.25" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 16.5 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.17".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A14-3
Ends Closed & Ground
Finish None
Free Length 1.25 in
Inside Diameter 0.17 in
Material Spring Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 27 lbs/in
SKU A14-3CS
Solid Length 0.66 in
Suggested Max Deflection 0.35 in
Suggested Max Load 9.5 lbf
Total Coils 16.5
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A14-3
Ends Closed & Ground
Finish None
Free Length 31.75 mm
Inside Diameter 4.32 mm
Material Spring Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 4.73 N/mm
SKU A14-3CS
Solid Length 16.76 mm
Suggested Max Deflection 8.89 mm
Suggested Max Load 42.26 N
Total Coils 16.5
Wire Diameter 1.02 mm
The A14-3 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The A14-3CS compression spring is designed with a free length of 1.13" total of 15.3 coils, and a rate of 24 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The A14-3 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
