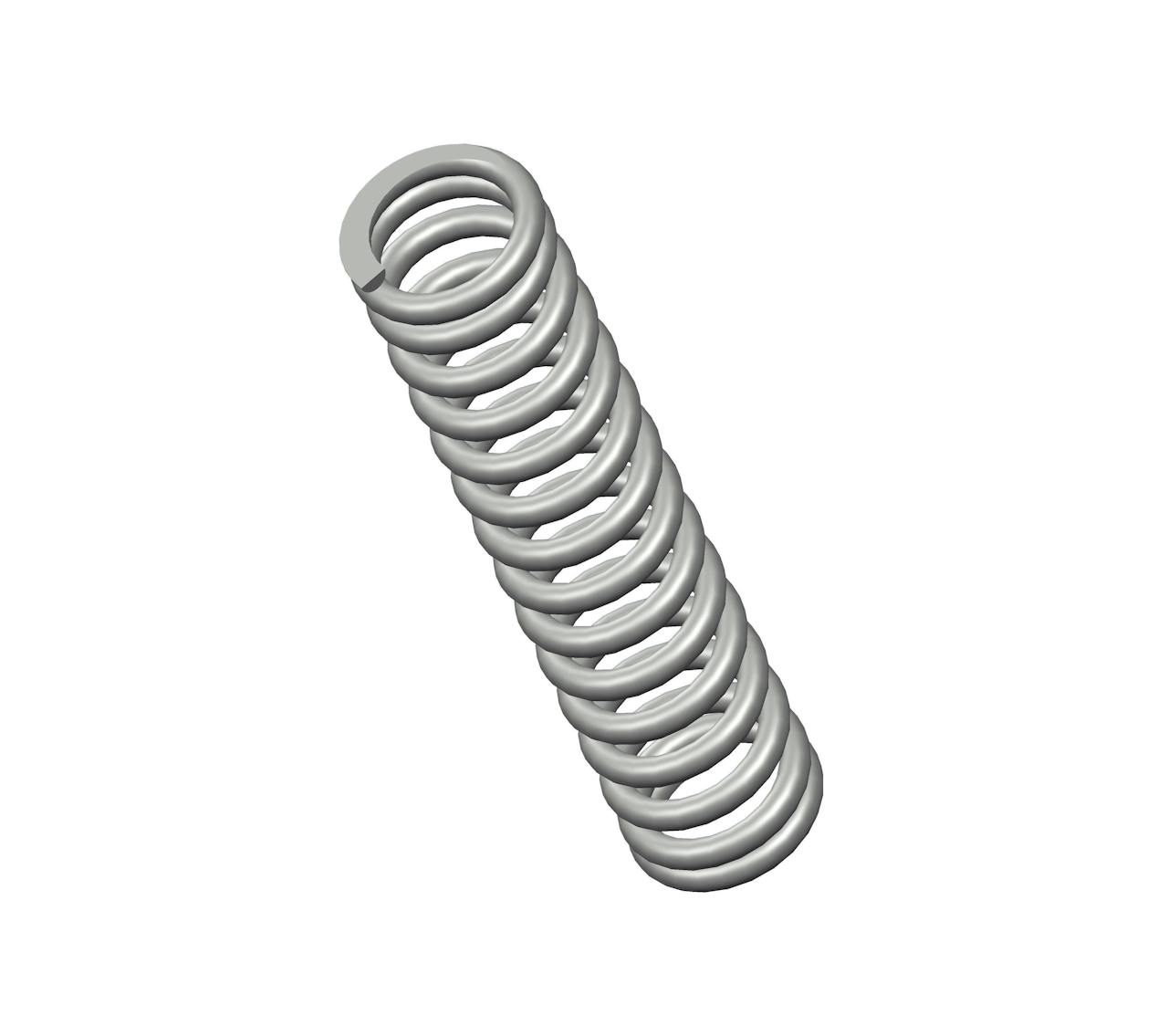

A14-39CS - 1.13" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 15.3 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.174".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-39 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.13 in |
| Inside Diameter | 0.174 in |
| Material | Spring Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 24 lbs/in |
| SKU | A14-39CS |
| Solid Length | 0.58 in |
| Suggested Max Deflection | 0.34 in |
| Suggested Max Load | 8.2 lbf |
| Total Coils | 15.3 |
| Wire Diameter | 0.038 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-39 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 28.7 mm |
| Inside Diameter | 4.42 mm |
| Material | Spring Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 4.2 N/mm |
| SKU | A14-39CS |
| Solid Length | 14.73 mm |
| Suggested Max Deflection | 8.64 mm |
| Suggested Max Load | 36.47 N |
| Total Coils | 15.3 |
| Wire Diameter | 0.97 mm |
The compression spring A14-39CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A14-39 compression spring design exhibits exceptional tensile strength and resilience.
The A14-39 design is manufactured with a free length of 1.13", with an outer diameter of 0.25", an inner diameter of 0.174", and a total of 15.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 24 lbs/in.
The A14-39CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A14-39 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
