Century Spring

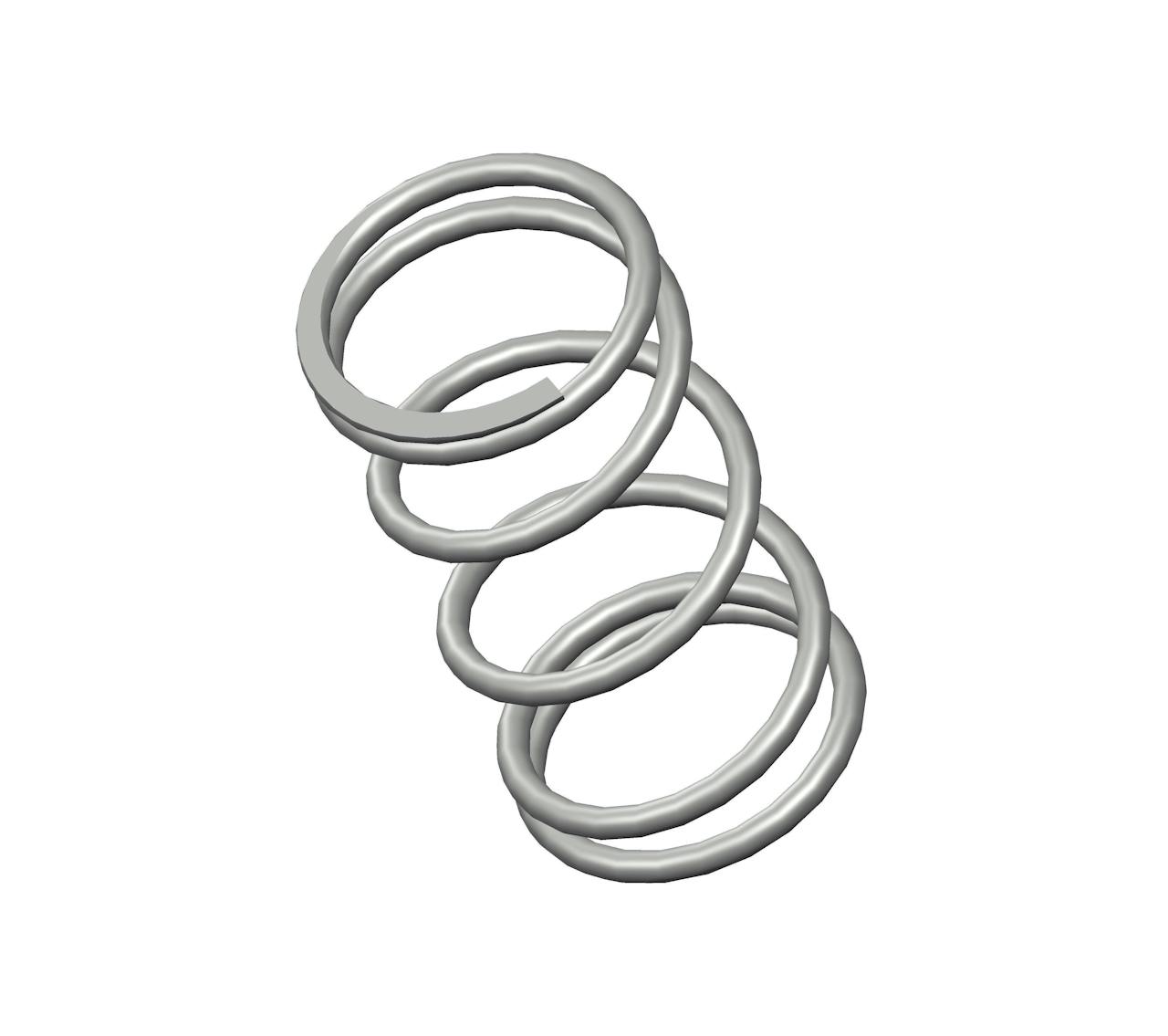

A14-37CS - 0.97" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 5.75 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.412".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A14-37
Ends Closed & Ground
Finish None
Free Length 0.97 in
Inside Diameter 0.412 in
Material Spring Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 15 lbs/in
SKU A14-37CS
Solid Length 0.25 in
Suggested Max Deflection 0.44 in
Suggested Max Load 6.6 lbf
Total Coils 5.75
Wire Diameter 0.044 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A14-37
Ends Closed & Ground
Finish None
Free Length 24.64 mm
Inside Diameter 10.46 mm
Material Spring Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 2.63 N/mm
SKU A14-37CS
Solid Length 6.35 mm
Suggested Max Deflection 11.18 mm
Suggested Max Load 29.36 N
Total Coils 5.75
Wire Diameter 1.12 mm
The A14-37 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The A14-37CS compression spring is designed with a free length of 1.5" total of 16 coils, and a rate of 23 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The A14-37 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
