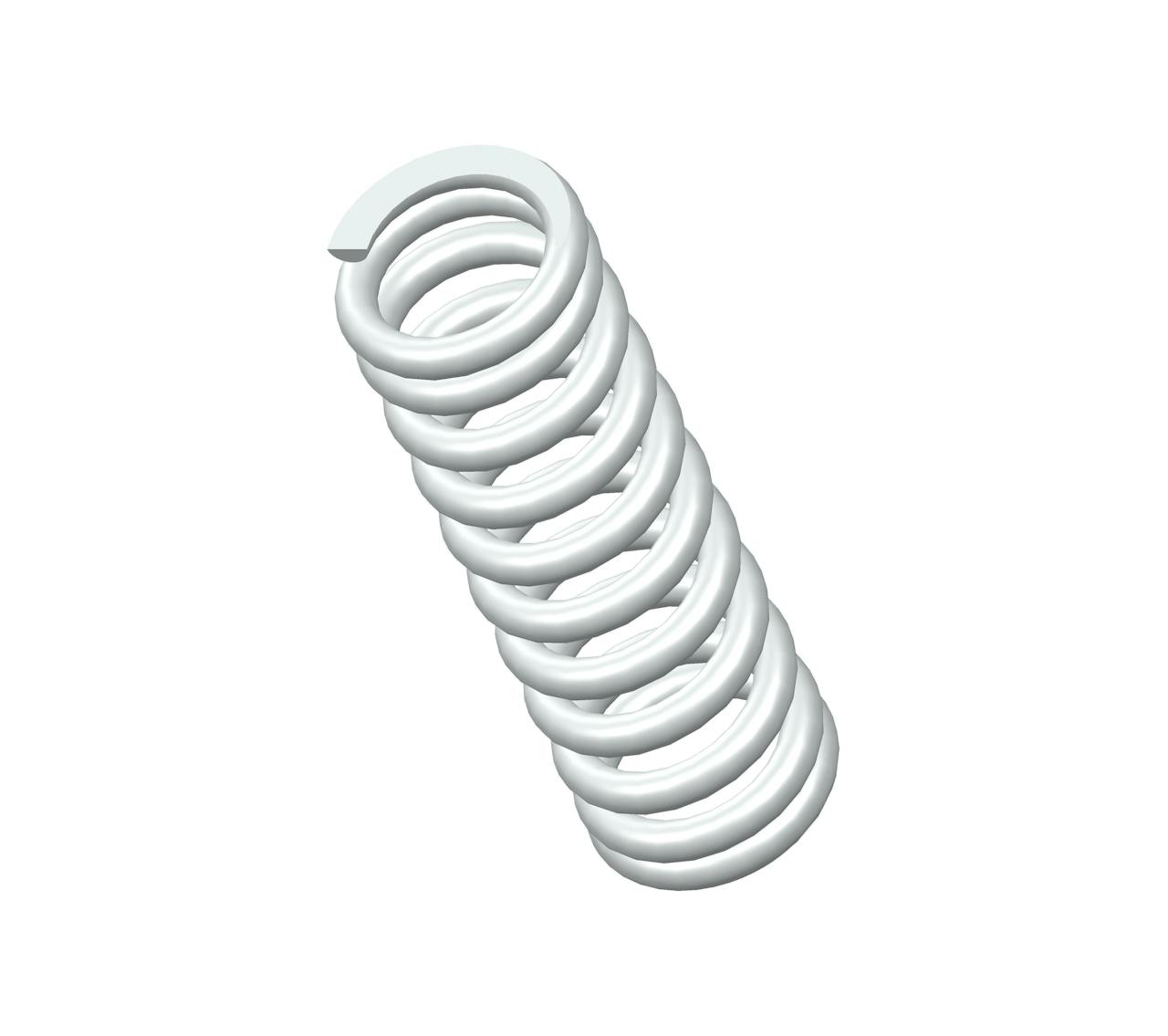

A14-31CS - 0.94" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.202".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-31 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.94 in |
| Inside Diameter | 0.202 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 44 lbs/in |
| SKU | A14-31CS |
| Solid Length | 0.52 in |
| Suggested Max Deflection | 0.28 in |
| Suggested Max Load | 12 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-31 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 23.88 mm |
| Inside Diameter | 5.13 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 7.7 N/mm |
| SKU | A14-31CS |
| Solid Length | 13.21 mm |
| Suggested Max Deflection | 7.11 mm |
| Suggested Max Load | 53.38 N |
| Total Coils | 11 |
| Wire Diameter | 1.19 mm |
The A14-31 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The A14-31CS compression spring is designed with a free length of 0.69" total of 5 coils, and a rate of 12 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A14-31 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The A14-31CS compression spring is designed with a free length of 0.69" total of 5 coils, and a rate of 12 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A14-31 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
