A14-30CS - 0.69" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

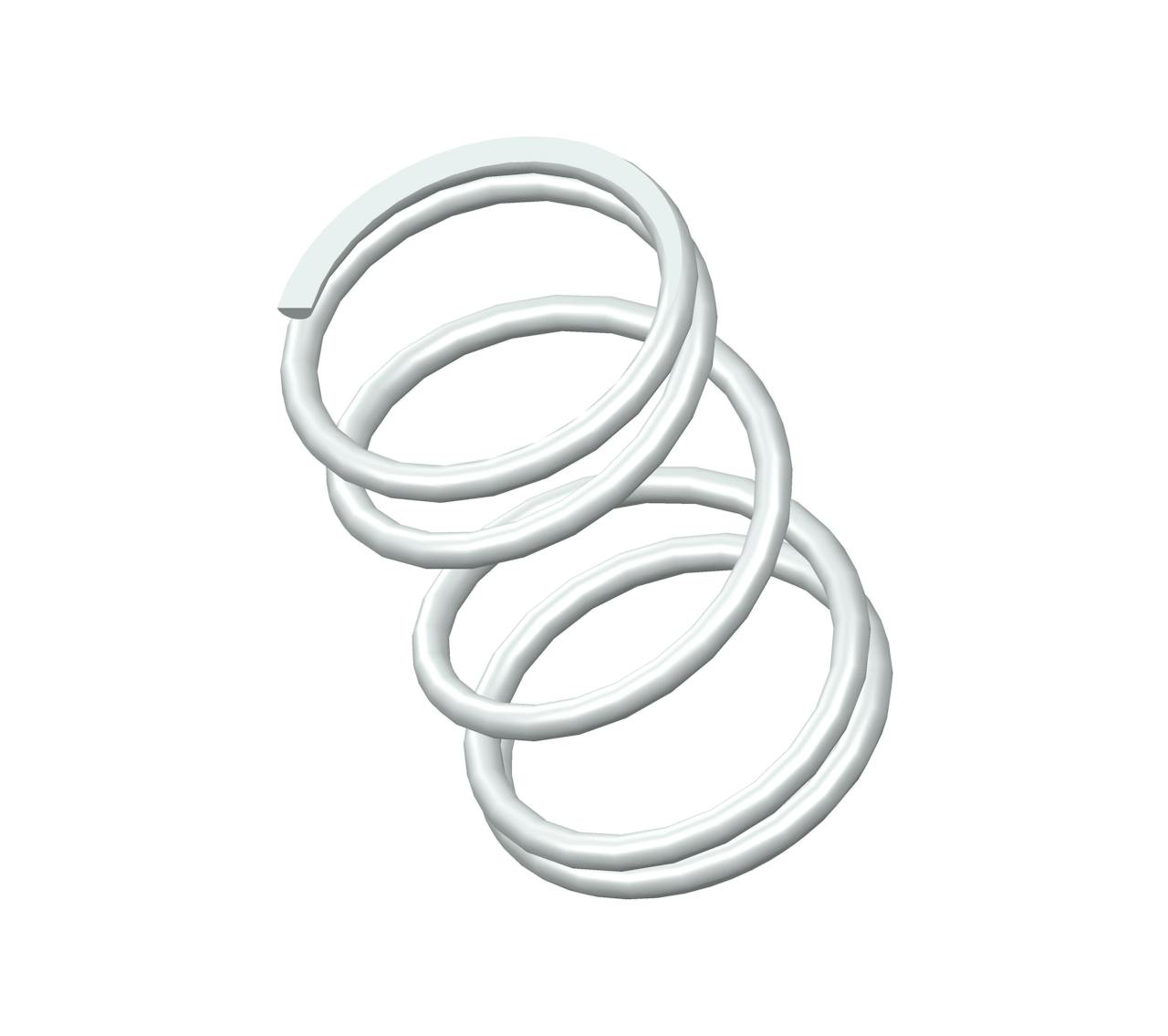

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.453", and an I.D. of 0.377".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-30 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.69 in |
| Inside Diameter | 0.377 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.453 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | A14-30CS |
| Solid Length | 0.19 in |
| Suggested Max Deflection | 0.35 in |
| Suggested Max Load | 4.4 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.038 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-30 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 17.53 mm |
| Inside Diameter | 9.58 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 11.51 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | A14-30CS |
| Solid Length | 4.83 mm |
| Suggested Max Deflection | 8.89 mm |
| Suggested Max Load | 19.57 N |
| Total Coils | 5 |
| Wire Diameter | 0.97 mm |
The compression spring A14-30CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A14-30 compression spring design exhibits exceptional tensile strength and resilience.
The A14-30 design is manufactured with a free length of 0.69", with an outer diameter of 0.453", an inner diameter of 0.377", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.
The A14-30CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A14-30 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A14-30 design is manufactured with a free length of 0.69", with an outer diameter of 0.453", an inner diameter of 0.377", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.
The A14-30CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A14-30 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
