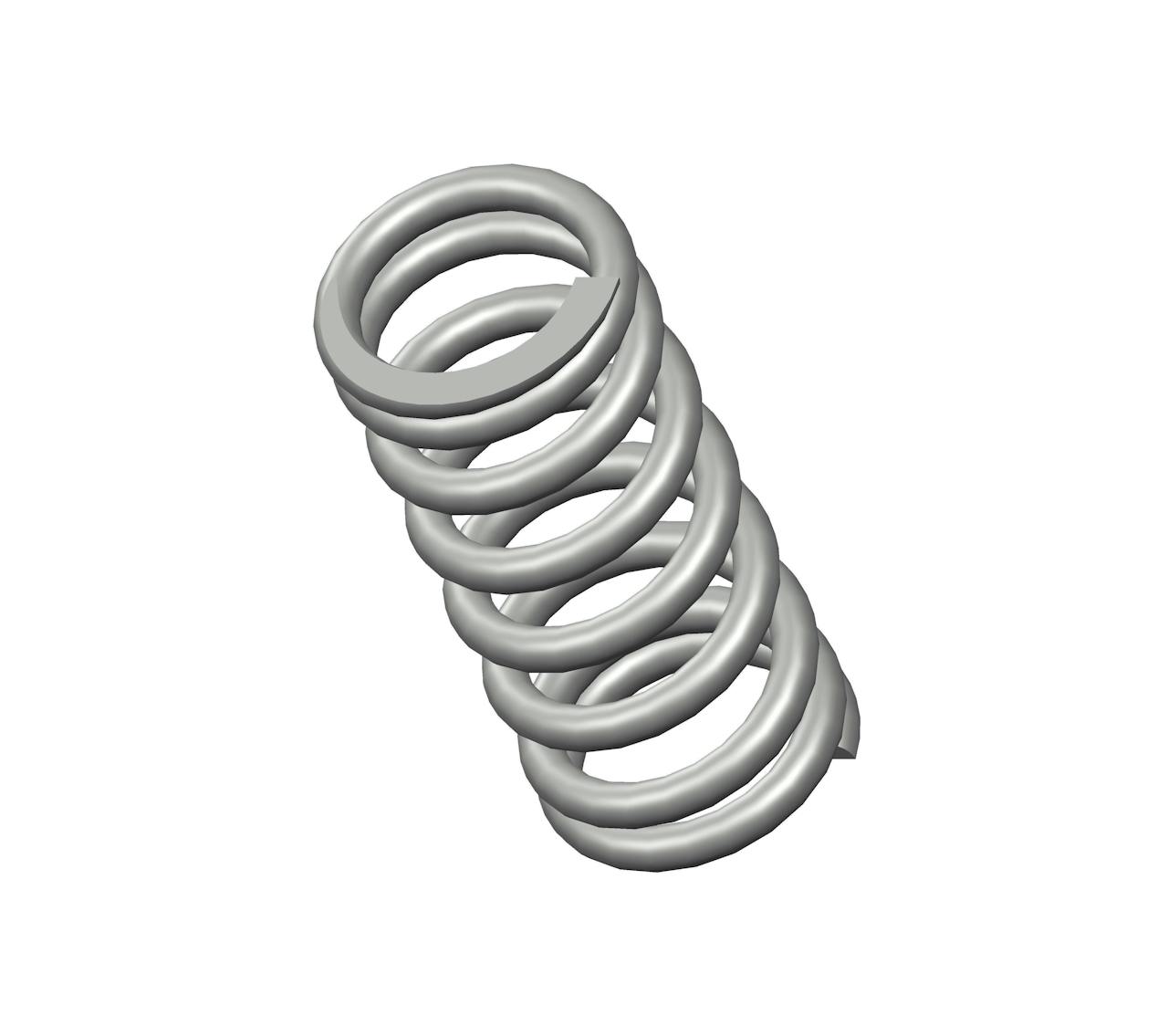

A14-1CS - 0.69" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.212".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-1 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.69 in |
| Inside Diameter | 0.212 in |
| Material | Spring Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 45 lbs/in |
| SKU | A14-1CS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 0.21 in |
| Suggested Max Load | 9.4 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.042 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-1 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 17.53 mm |
| Inside Diameter | 5.38 mm |
| Material | Spring Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 7.88 N/mm |
| SKU | A14-1CS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 5.33 mm |
| Suggested Max Load | 41.81 N |
| Total Coils | 8 |
| Wire Diameter | 1.07 mm |
The compression spring A14-1CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A14-1 compression spring design exhibits exceptional tensile strength and resilience.
The A14-1 design is manufactured with a free length of 0.69", with an outer diameter of 0.296", an inner diameter of 0.212", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 45 lbs/in.
The A14-1CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A14-1 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A14-1 design is manufactured with a free length of 0.69", with an outer diameter of 0.296", an inner diameter of 0.212", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 45 lbs/in.
The A14-1CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A14-1 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
