A14-15CS - 0.84" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

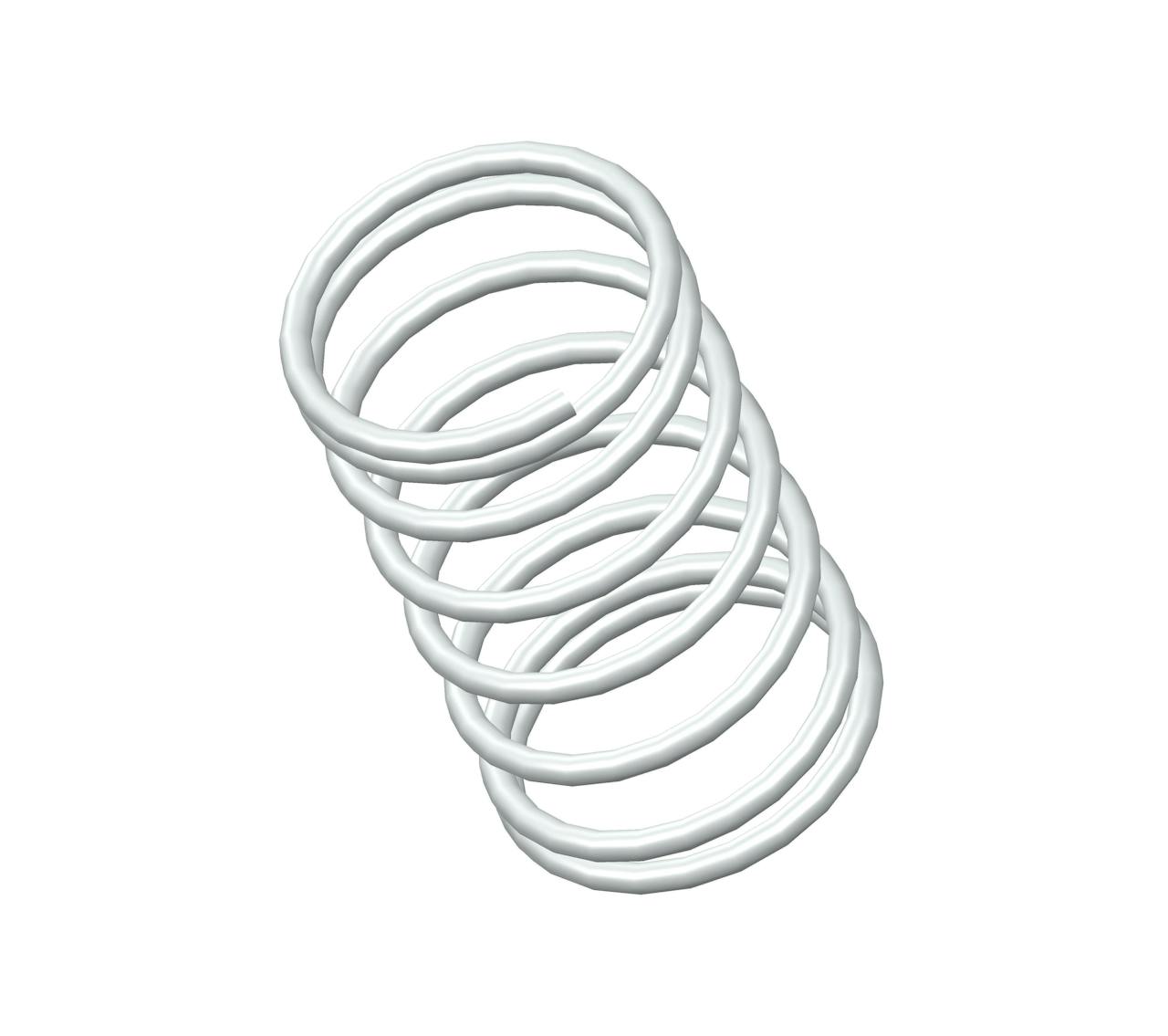

Compression spring manufactured from 302/304 stainless steel with 7.75 coils and closed ends. This spring features an O.D. of 0.468", and an I.D. of 0.396".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-15 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.84 in |
| Inside Diameter | 0.396 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.468 in |
| Part Type | Standard |
| Rate | 4.6 lbs/in |
| SKU | A14-15CS |
| Solid Length | 0.32 in |
| Suggested Max Deflection | 0.53 in |
| Suggested Max Load | 2.4 lbf |
| Total Coils | 7.75 |
| Wire Diameter | 0.036 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-15 |
| Ends | Closed |
| Finish | None |
| Free Length | 21.34 mm |
| Inside Diameter | 10.06 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 11.89 mm |
| Part Type | Standard |
| Rate | 0.81 N/mm |
| SKU | A14-15CS |
| Solid Length | 8.13 mm |
| Suggested Max Deflection | 13.46 mm |
| Suggested Max Load | 10.68 N |
| Total Coils | 7.75 |
| Wire Diameter | 0.91 mm |
The A14-15 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The A14-15CS compression spring is designed with a free length of 0.69" total of 8 coils, and a rate of 14 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A14-15 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The A14-15CS compression spring is designed with a free length of 0.69" total of 8 coils, and a rate of 14 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A14-15 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
