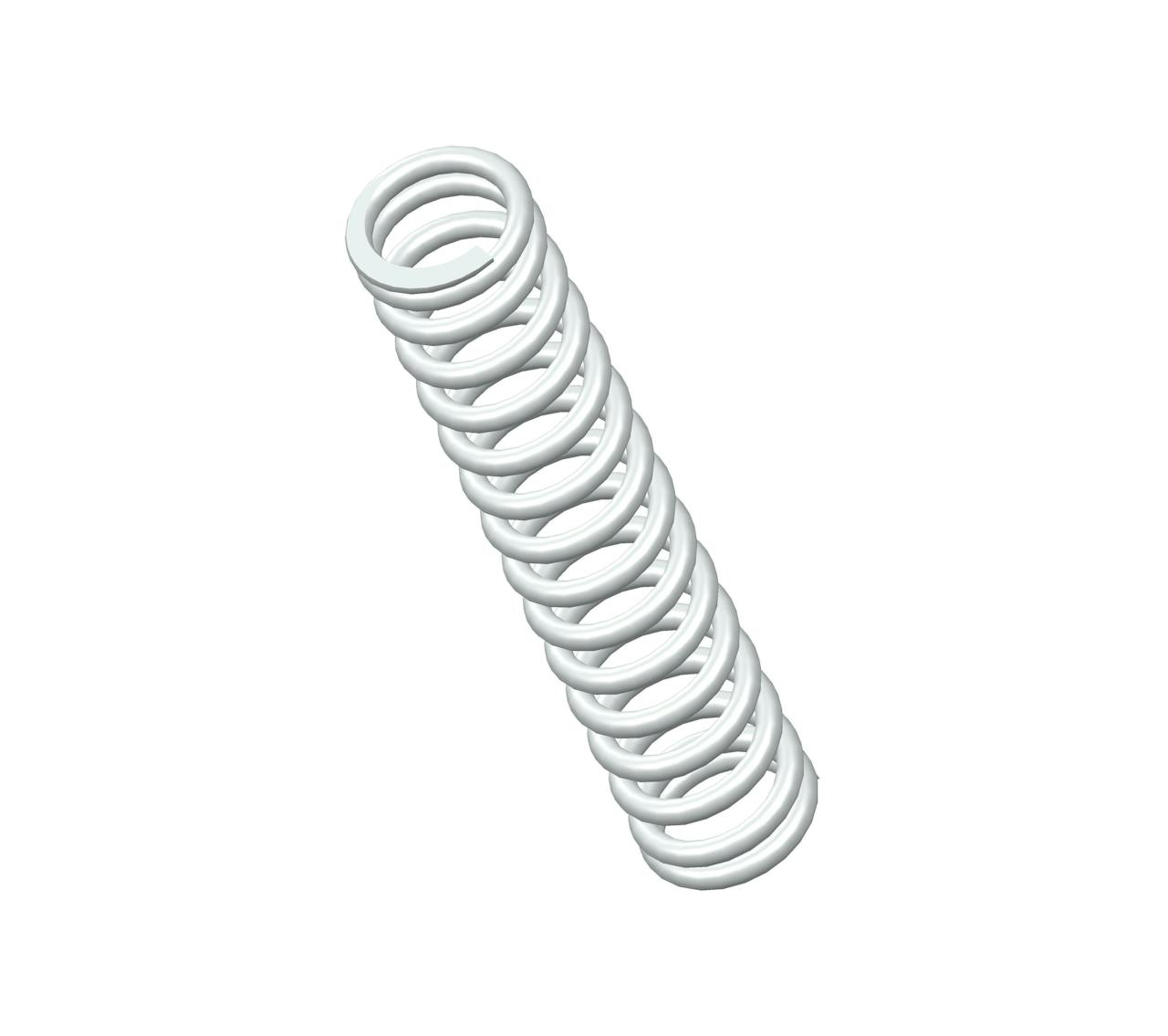

A13-8CS - 1.5" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 15.8 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.212".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-8 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.5 in |
| Inside Diameter | 0.212 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 17 lbs/in |
| SKU | A13-8CS |
| Solid Length | 0.66 in |
| Suggested Max Deflection | 0.5 in |
| Suggested Max Load | 8.8 lbf |
| Total Coils | 15.8 |
| Wire Diameter | 0.042 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-8 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 38.1 mm |
| Inside Diameter | 5.38 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 2.98 N/mm |
| SKU | A13-8CS |
| Solid Length | 16.76 mm |
| Suggested Max Deflection | 12.7 mm |
| Suggested Max Load | 39.14 N |
| Total Coils | 15.8 |
| Wire Diameter | 1.07 mm |
The compression spring A13-8CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A13-8 compression spring design exhibits exceptional tensile strength and resilience.
The A13-8 design is manufactured with a free length of 1.5", with an outer diameter of 0.296", an inner diameter of 0.212", and a total of 15.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The A13-8CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-8 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A13-8 design is manufactured with a free length of 1.5", with an outer diameter of 0.296", an inner diameter of 0.212", and a total of 15.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The A13-8CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-8 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
