Century Spring

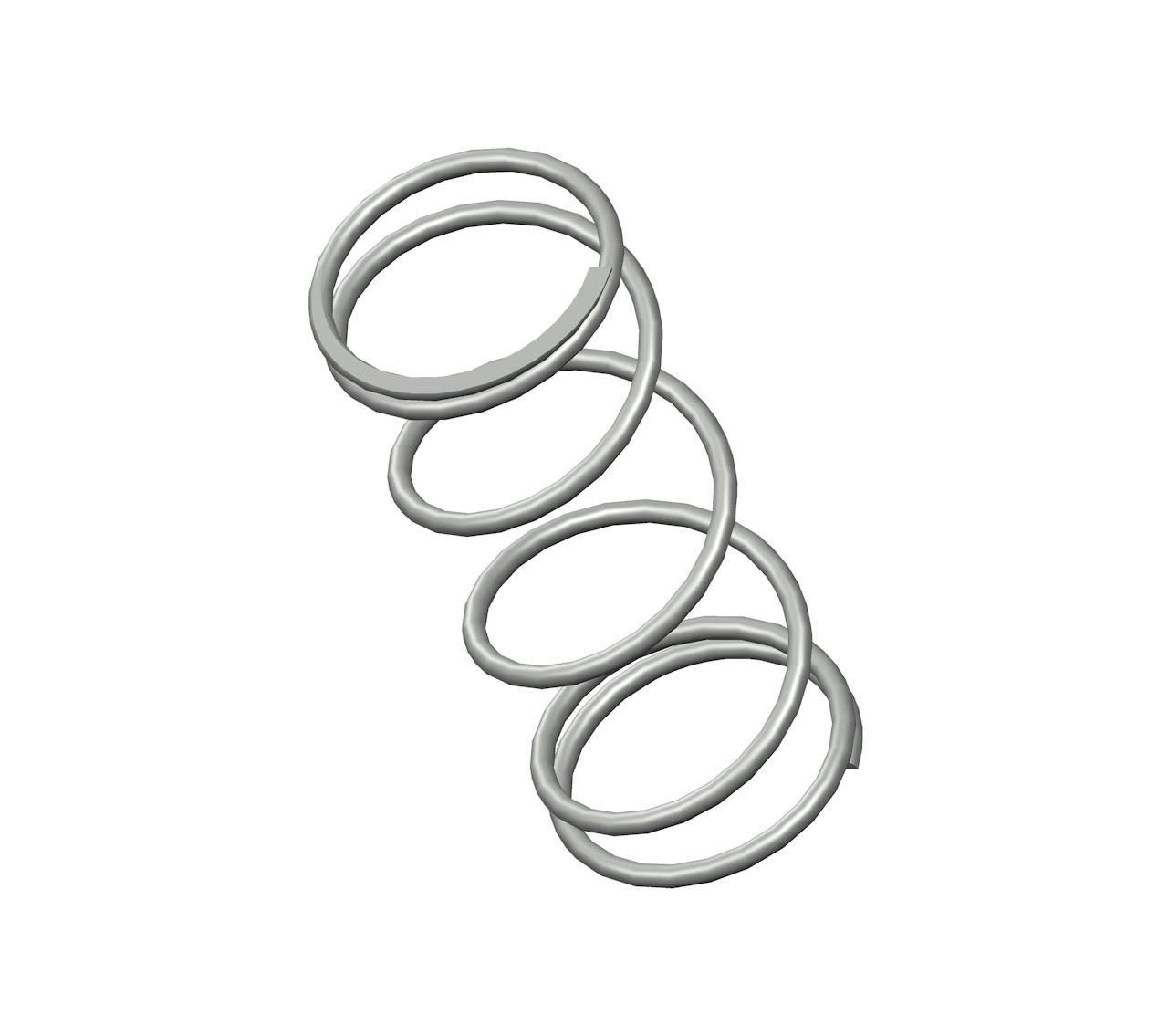

A13-63CS - 1.31" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.531", and an I.D. of 0.453".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A13-63
Ends Closed & Ground
Finish None
Free Length 1.31 in
Inside Diameter 0.453 in
Material Spring Steel
Outside Diameter 0.531 in
Part Type Standard
Rate 7 lbs/in
SKU A13-63CS
Solid Length 0.23 in
Suggested Max Deflection 0.62 in
Suggested Max Load 4.4 lbf
Total Coils 6
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A13-63
Ends Closed & Ground
Finish None
Free Length 33.27 mm
Inside Diameter 11.51 mm
Material Spring Steel
Outside Diameter 13.49 mm
Part Type Standard
Rate 1.23 N/mm
SKU A13-63CS
Solid Length 5.84 mm
Suggested Max Deflection 15.75 mm
Suggested Max Load 19.57 N
Total Coils 6
Wire Diameter 0.99 mm
The A13-63CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.039" diameter spring steel, the A13-63 spring design exhibits reliable strength across its 6 active coils, withstanding repeated compression cycles with a maximum load of 4.4 lbf without succumbing to fatigue.

We manufacture the A13-63 design to provide a compression spring that is 1.31" long at rest and provides a consistent rate of 7 lbs/in along its recommended maximum of 0.62" deflection. For best results, your application should fully accommodate the inner (0.453") and outer (0.531") diameters of this spring and be designed for its closed & ground end configuration.
