Century Spring

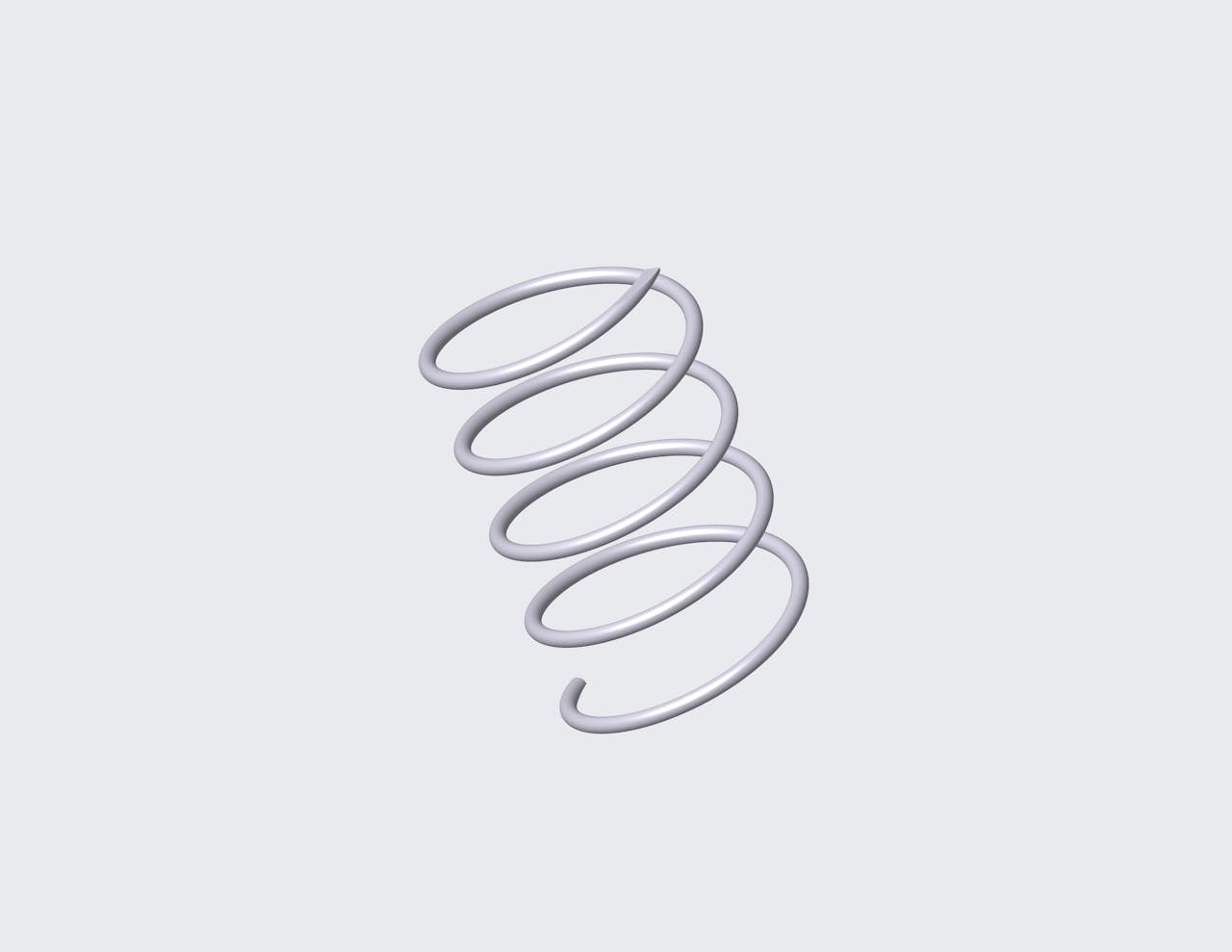

A13-62CS - 1.78" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 6.7 coils and closed & ground ends. This spring features an O.D. of 1.015", and an I.D. of 0.717".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A13-62
Ends Closed & Ground
Finish None
Free Length 1.78 in
Inside Diameter 0.717 in
Material 302/304 Stainless Steel
Outside Diameter 1.015 in
Part Type Standard
Rate 194 lbs/in
SKU A13-62CS
Solid Length 0.998 in
Suggested Max Deflection 0.436 in
Suggested Max Load 85 lbf
Total Coils 6.7
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A13-62
Ends Closed & Ground
Finish None
Free Length 45.21 mm
Inside Diameter 18.21 mm
Material 302/304 Stainless Steel
Outside Diameter 25.78 mm
Part Type Standard
Rate 33.97 N/mm
SKU A13-62CS
Solid Length 25.35 mm
Suggested Max Deflection 11.07 mm
Suggested Max Load 378.08 N
Total Coils 6.7
Wire Diameter 3.76 mm
The A13-62 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The A13-62CS compression spring is designed with a free length of 0.91" total of 5.75 coils, and a rate of 61 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The A13-62 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
