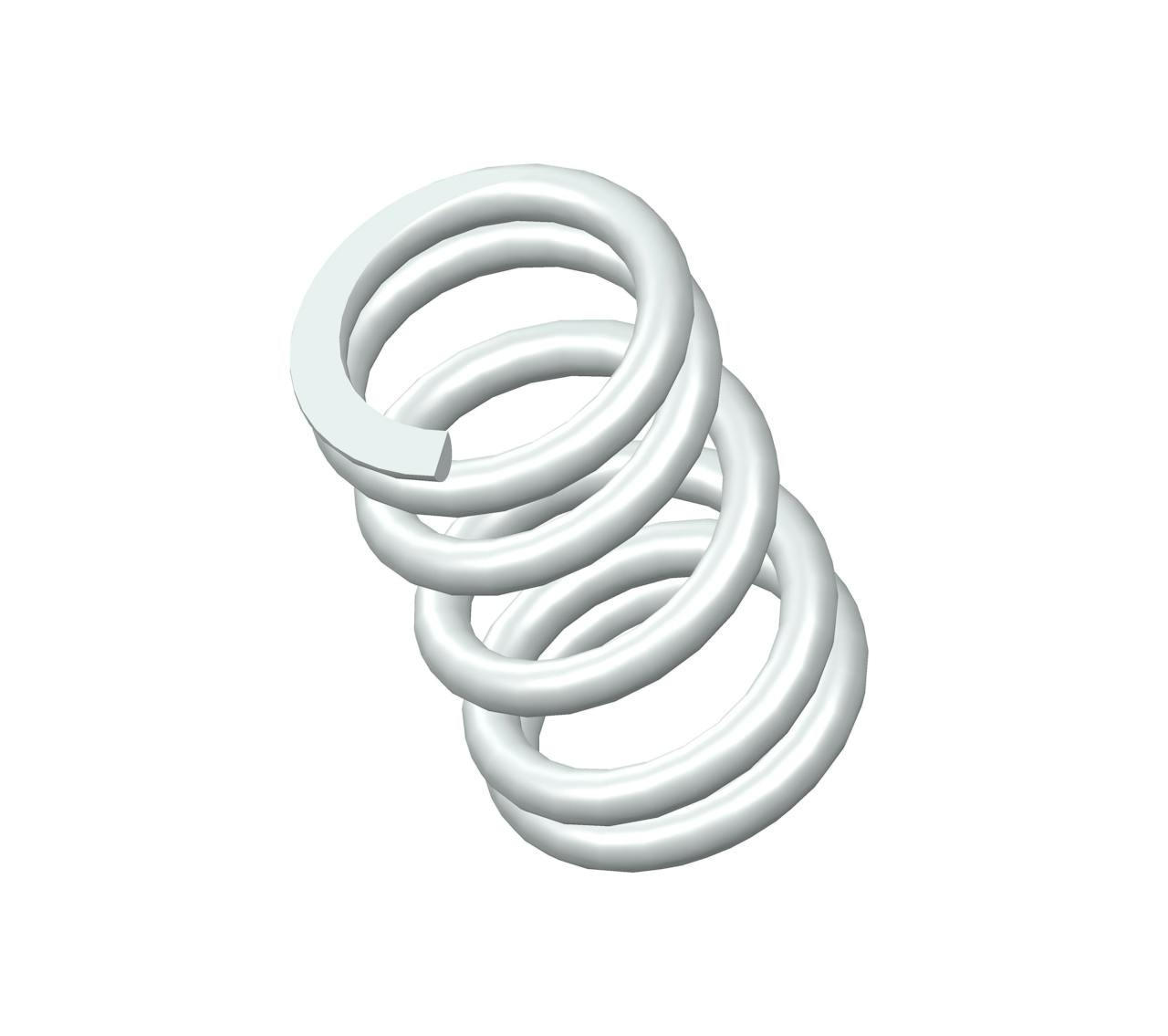

A13-59CS - 0.47" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.214".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.47 in |
| Inside Diameter | 0.214 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 61 lbs/in |
| SKU | A13-59CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.13 in |
| Suggested Max Load | 8.2 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.041 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 11.94 mm |
| Inside Diameter | 5.44 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 10.68 N/mm |
| SKU | A13-59CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 3.3 mm |
| Suggested Max Load | 36.47 N |
| Total Coils | 5.5 |
| Wire Diameter | 1.04 mm |
The compression spring A13-59CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A13-59 compression spring design exhibits exceptional tensile strength and resilience.
The A13-59 design is manufactured with a free length of 0.47", with an outer diameter of 0.296", an inner diameter of 0.214", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 61 lbs/in.
The A13-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A13-59 design is manufactured with a free length of 0.47", with an outer diameter of 0.296", an inner diameter of 0.214", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 61 lbs/in.
The A13-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
