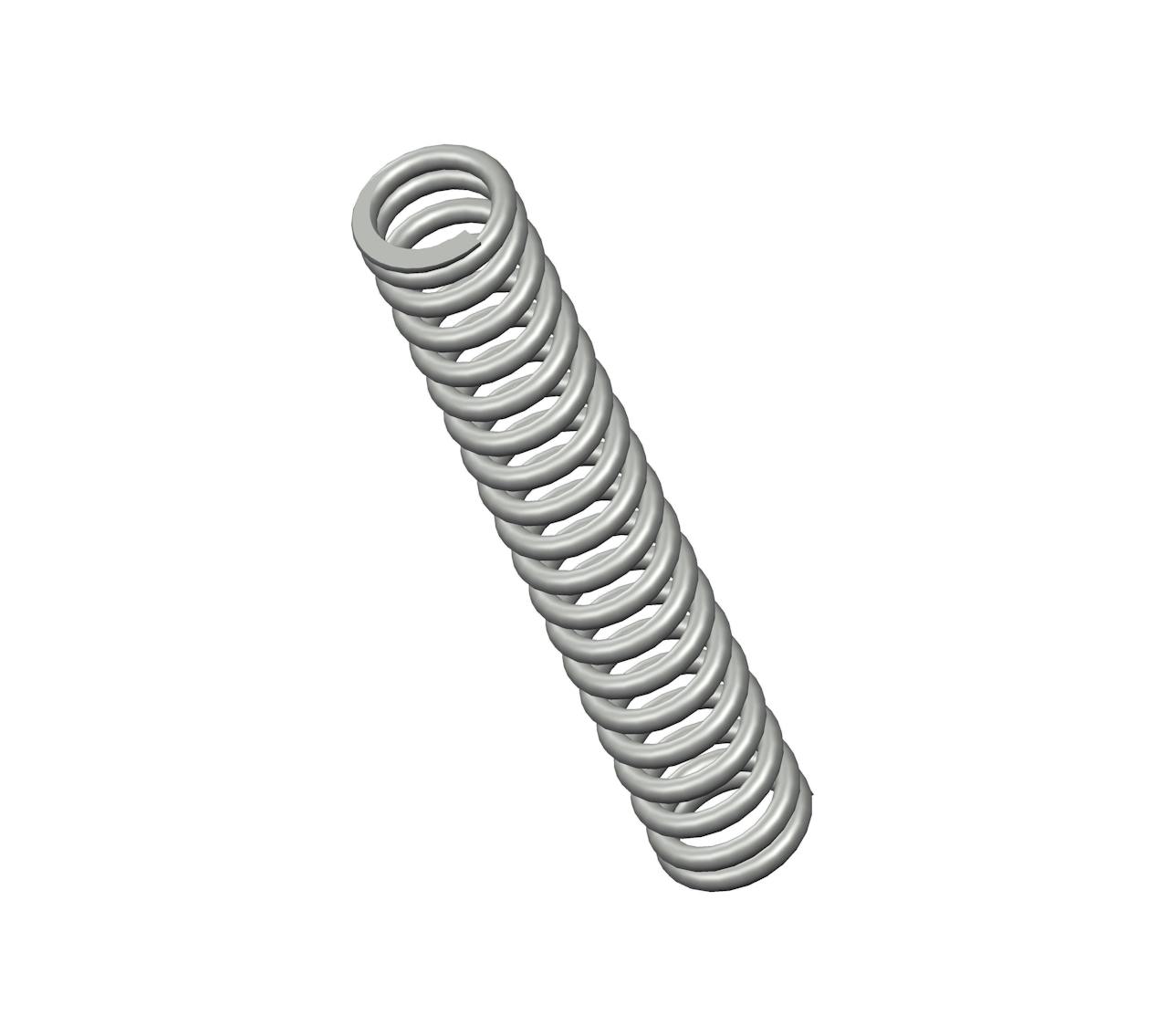

A13-50CS - 0.75" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 19.8 coils and closed & ground ends. This spring features an O.D. of 0.125", and an I.D. of 0.087".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-50 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.75 in |
| Inside Diameter | 0.087 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 8.9 lbs/in |
| SKU | A13-50CS |
| Solid Length | 0.38 in |
| Suggested Max Deflection | 0.36 in |
| Suggested Max Load | 3.2 lbf |
| Total Coils | 19.8 |
| Wire Diameter | 0.019 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-50 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 19.05 mm |
| Inside Diameter | 2.21 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 1.56 N/mm |
| SKU | A13-50CS |
| Solid Length | 9.65 mm |
| Suggested Max Deflection | 9.14 mm |
| Suggested Max Load | 14.23 N |
| Total Coils | 19.8 |
| Wire Diameter | 0.48 mm |
The compression spring A13-50CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the A13-50 compression spring design exhibits exceptional tensile strength and resilience.
The A13-50 design is manufactured with a free length of 0.75", with an outer diameter of 0.125", an inner diameter of 0.087", and a total of 19.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.9 lbs/in.
The A13-50CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-50 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A13-50 design is manufactured with a free length of 0.75", with an outer diameter of 0.125", an inner diameter of 0.087", and a total of 19.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.9 lbs/in.
The A13-50CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-50 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
