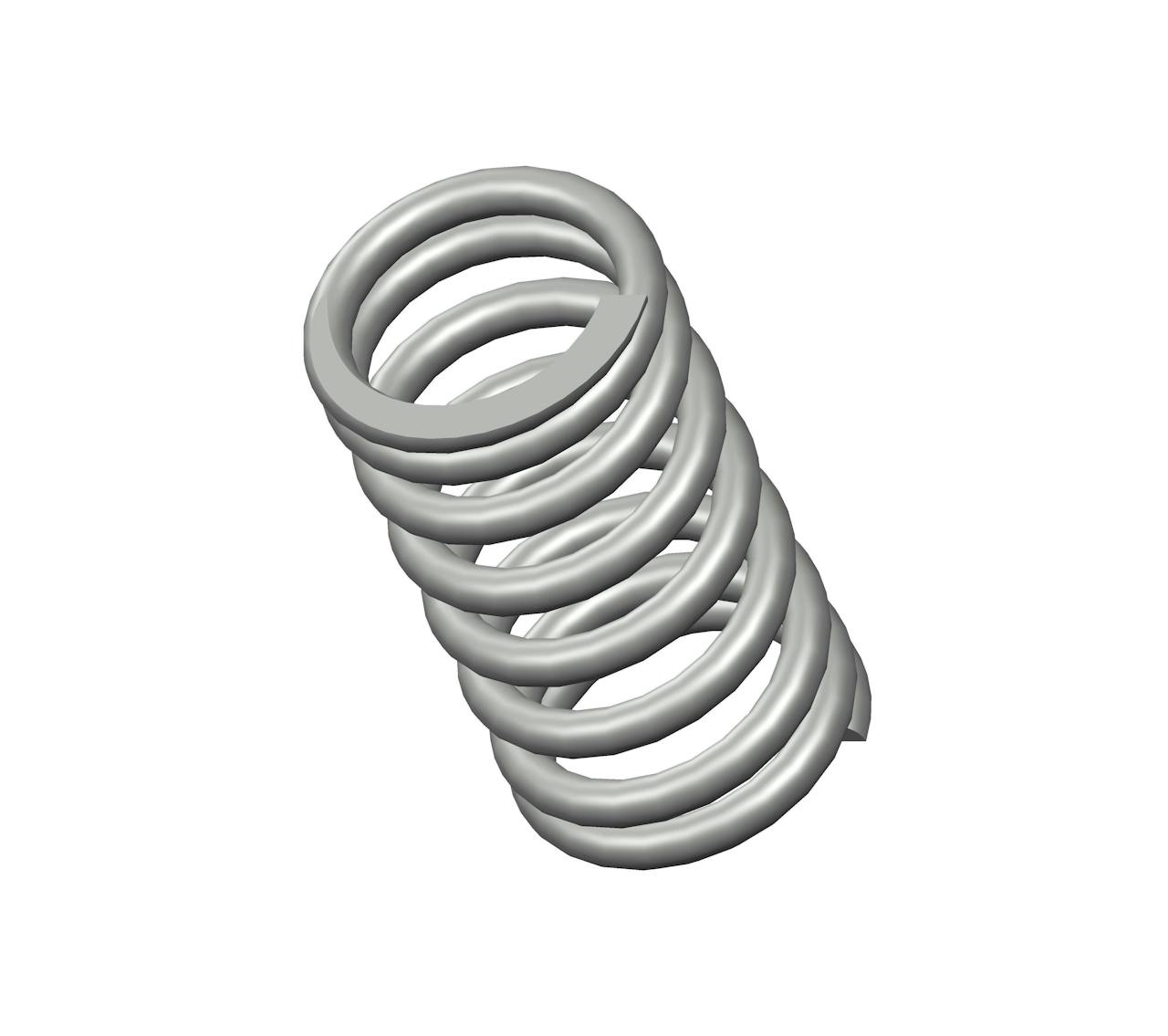

A13-45CS - 0.63" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.242".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-45 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.242 in |
| Material | Spring Steel |
| Outside Diameter | 0.328 in |
| Part Type | Standard |
| Rate | 35 lbs/in |
| SKU | A13-45CS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 0.26 in |
| Suggested Max Load | 9.1 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.043 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-45 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 6.15 mm |
| Material | Spring Steel |
| Outside Diameter | 8.33 mm |
| Part Type | Standard |
| Rate | 6.13 N/mm |
| SKU | A13-45CS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 6.6 mm |
| Suggested Max Load | 40.48 N |
| Total Coils | 8 |
| Wire Diameter | 1.09 mm |
The compression spring A13-45CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A13-45 compression spring design exhibits exceptional tensile strength and resilience.
The A13-45 design is manufactured with a free length of 0.63", with an outer diameter of 0.328", an inner diameter of 0.242", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 35 lbs/in.
The A13-45CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-45 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
