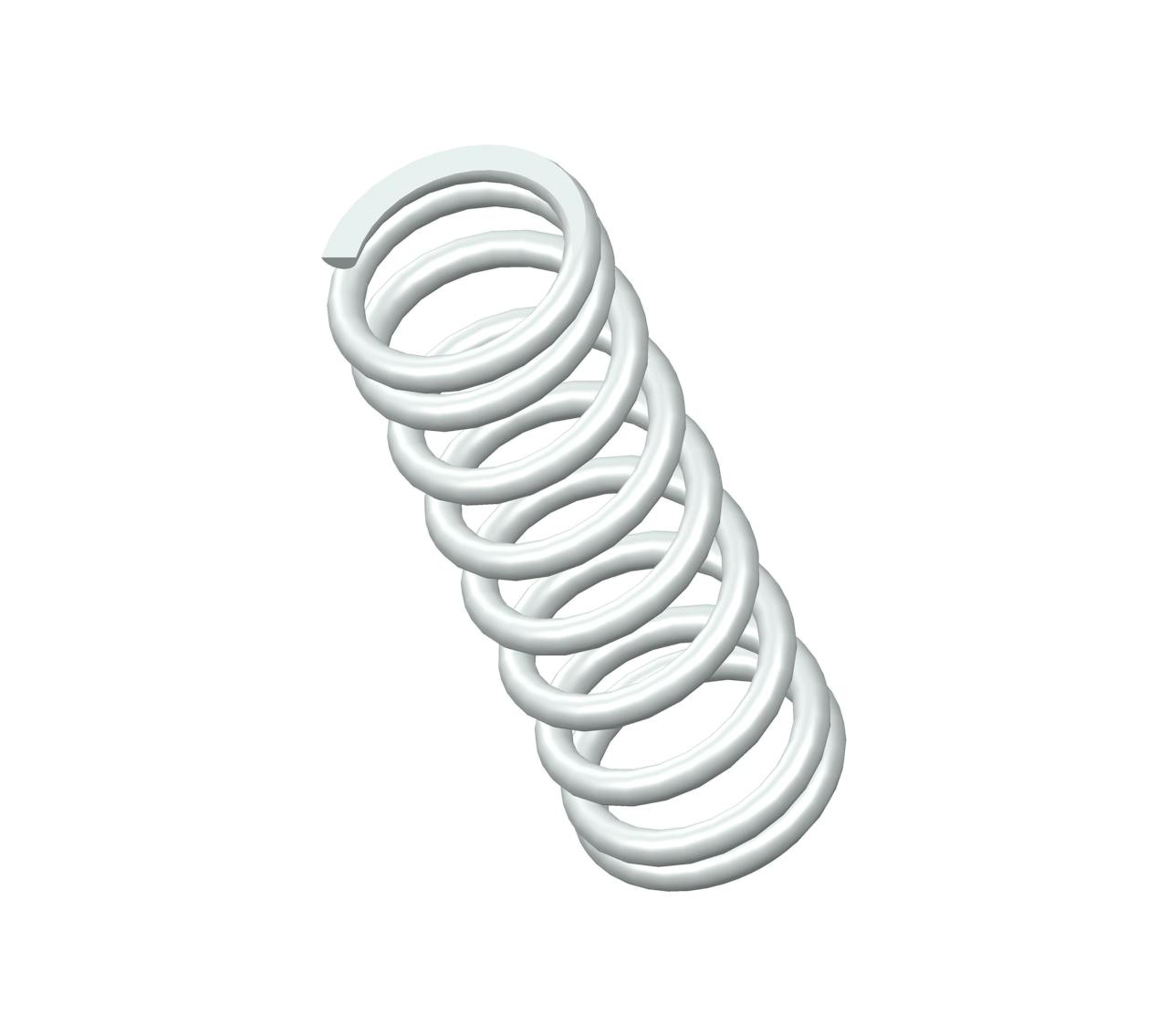

A13-34CS - 1.03" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 9 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.268".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-34 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.03 in |
| Inside Diameter | 0.268 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 27 lbs/in |
| SKU | A13-34CS |
| Solid Length | 0.41 in |
| Suggested Max Deflection | 0.36 in |
| Suggested Max Load | 9.6 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.046 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-34 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 26.16 mm |
| Inside Diameter | 6.81 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 4.73 N/mm |
| SKU | A13-34CS |
| Solid Length | 10.41 mm |
| Suggested Max Deflection | 9.14 mm |
| Suggested Max Load | 42.7 N |
| Total Coils | 9 |
| Wire Diameter | 1.17 mm |
The compression spring A13-34CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A13-34 compression spring design exhibits exceptional tensile strength and resilience.
The A13-34 design is manufactured with a free length of 1.03", with an outer diameter of 0.36", an inner diameter of 0.268", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.
The A13-34CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-34 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A13-34 design is manufactured with a free length of 1.03", with an outer diameter of 0.36", an inner diameter of 0.268", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.
The A13-34CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-34 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
