A13-31CS - 1.38" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

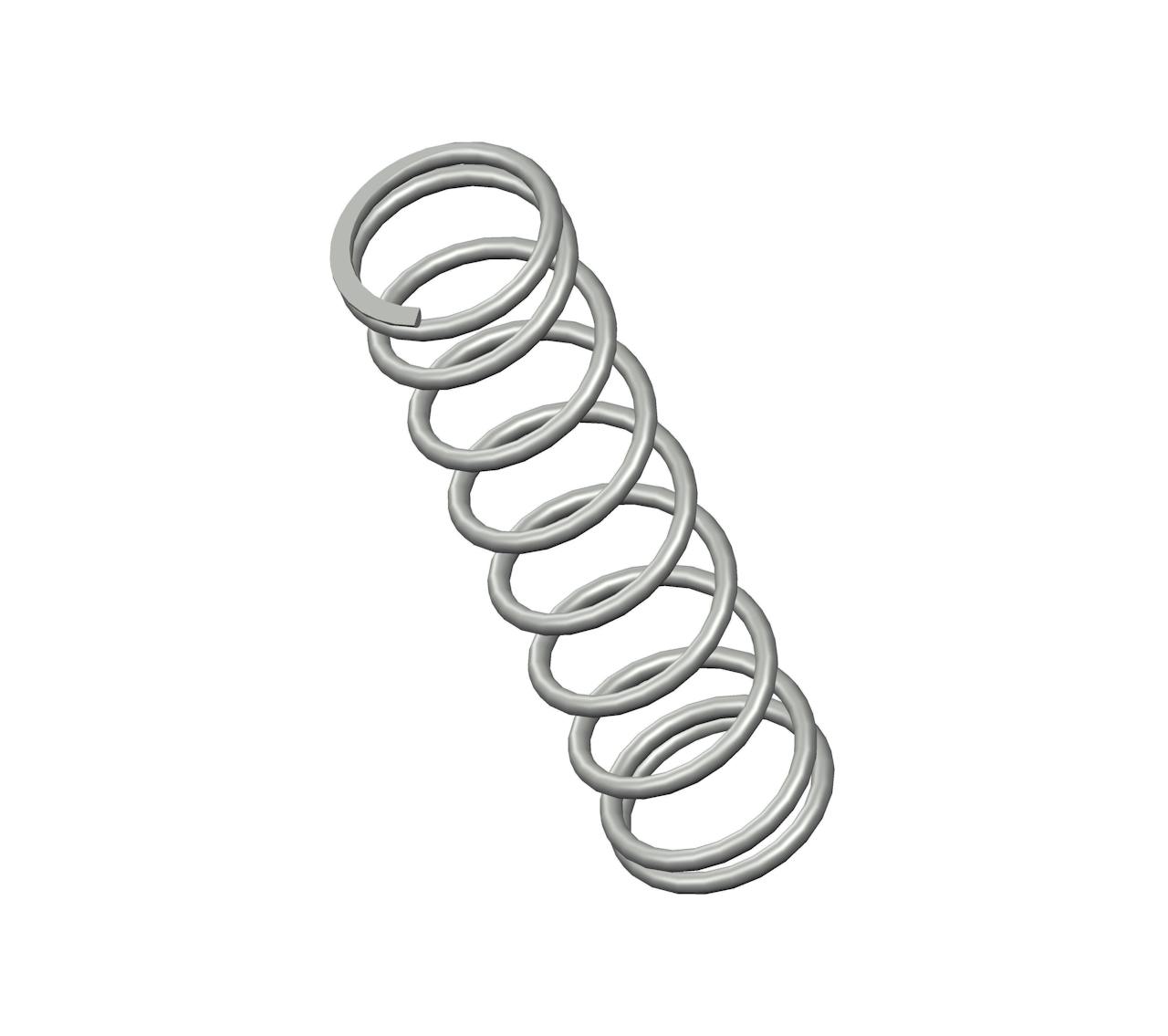

Compression spring manufactured from spring steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 0.36", and an I.D. of 0.292".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-31 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 1.38 in |
| Inside Diameter | 0.292 in |
| Material | Spring Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 7.5 lbs/in |
| SKU | A13-31CS |
| Solid Length | 0.32 in |
| Suggested Max Deflection | 0.59 in |
| Suggested Max Load | 4.4 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.034 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-31 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 35.05 mm |
| Inside Diameter | 7.42 mm |
| Material | Spring Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 1.31 N/mm |
| SKU | A13-31CS |
| Solid Length | 8.13 mm |
| Suggested Max Deflection | 14.99 mm |
| Suggested Max Load | 19.57 N |
| Total Coils | 9.5 |
| Wire Diameter | 0.86 mm |
The compression spring A13-31CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A13-31 compression spring design exhibits exceptional tensile strength and resilience.
The A13-31 design is manufactured with a free length of 1.38", with an outer diameter of 0.36", an inner diameter of 0.292", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.5 lbs/in.
The A13-31CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-31 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A13-31 design is manufactured with a free length of 1.38", with an outer diameter of 0.36", an inner diameter of 0.292", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.5 lbs/in.
The A13-31CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-31 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
