A13-12CS - 0.47" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

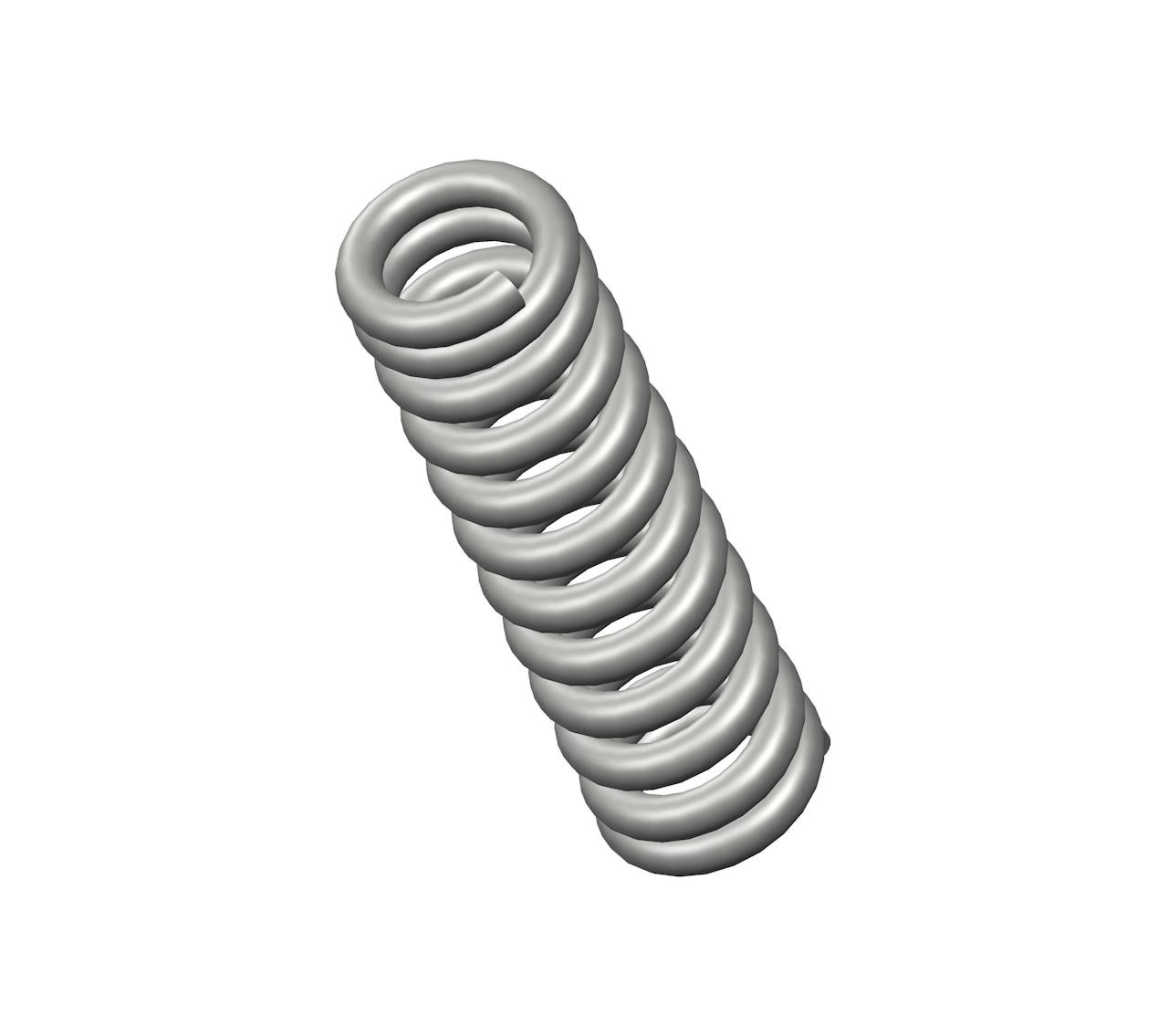

Compression spring manufactured from music wire with 11.8 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.077".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-12 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.47 in |
| Inside Diameter | 0.077 in |
| Material | Music Wire |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 47 lbs/in |
| SKU | A13-12CS |
| Solid Length | 0.31 in |
| Suggested Max Deflection | 0.13 in |
| Suggested Max Load | 6.2 lbf |
| Total Coils | 11.8 |
| Wire Diameter | 0.024 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A13-12 |
| Ends | Closed |
| Finish | None |
| Free Length | 11.94 mm |
| Inside Diameter | 1.96 mm |
| Material | Music Wire |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 8.23 N/mm |
| SKU | A13-12CS |
| Solid Length | 7.87 mm |
| Suggested Max Deflection | 3.3 mm |
| Suggested Max Load | 27.58 N |
| Total Coils | 11.8 |
| Wire Diameter | 0.61 mm |
The compression spring A13-12CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the A13-12 compression spring design exhibits exceptional tensile strength and resilience.
The A13-12 design is manufactured with a free length of 0.47", with an outer diameter of 0.125", an inner diameter of 0.077", and a total of 11.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 47 lbs/in.
The A13-12CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A13-12 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
