A12-42CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

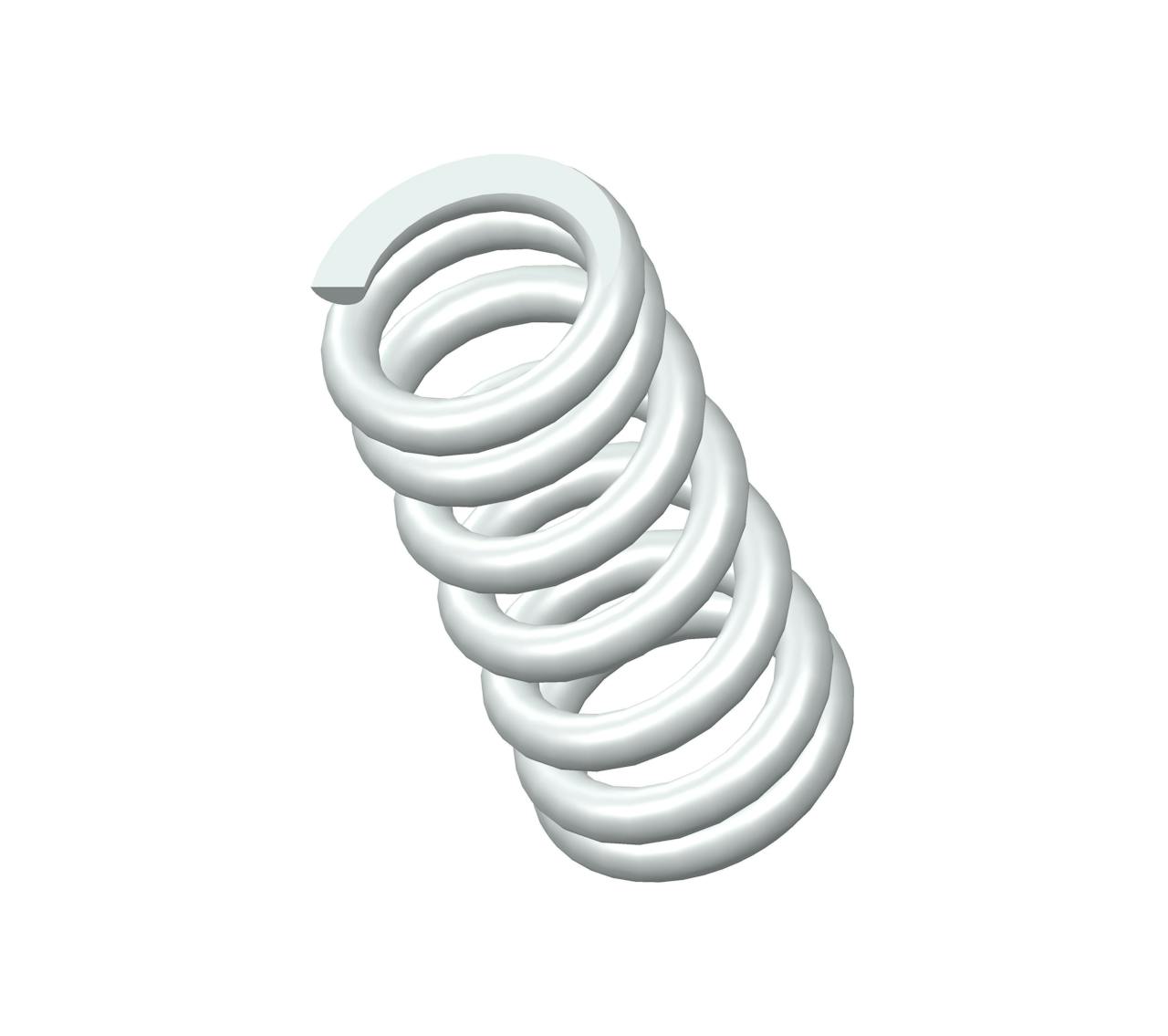

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.156".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A12-42 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.156 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 80 lbs/in |
| SKU | A12-42CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.11 in |
| Suggested Max Load | 8.7 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.039 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A12-42 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 3.96 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 14.01 N/mm |
| SKU | A12-42CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 2.79 mm |
| Suggested Max Load | 38.7 N |
| Total Coils | 7 |
| Wire Diameter | 0.99 mm |
The compression spring A12-42CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A12-42 compression spring design exhibits exceptional tensile strength and resilience.
The A12-42 design is manufactured with a free length of 0.5", with an outer diameter of 0.234", an inner diameter of 0.156", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 80 lbs/in.
The A12-42CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A12-42 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A12-42 design is manufactured with a free length of 0.5", with an outer diameter of 0.234", an inner diameter of 0.156", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 80 lbs/in.
The A12-42CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A12-42 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
