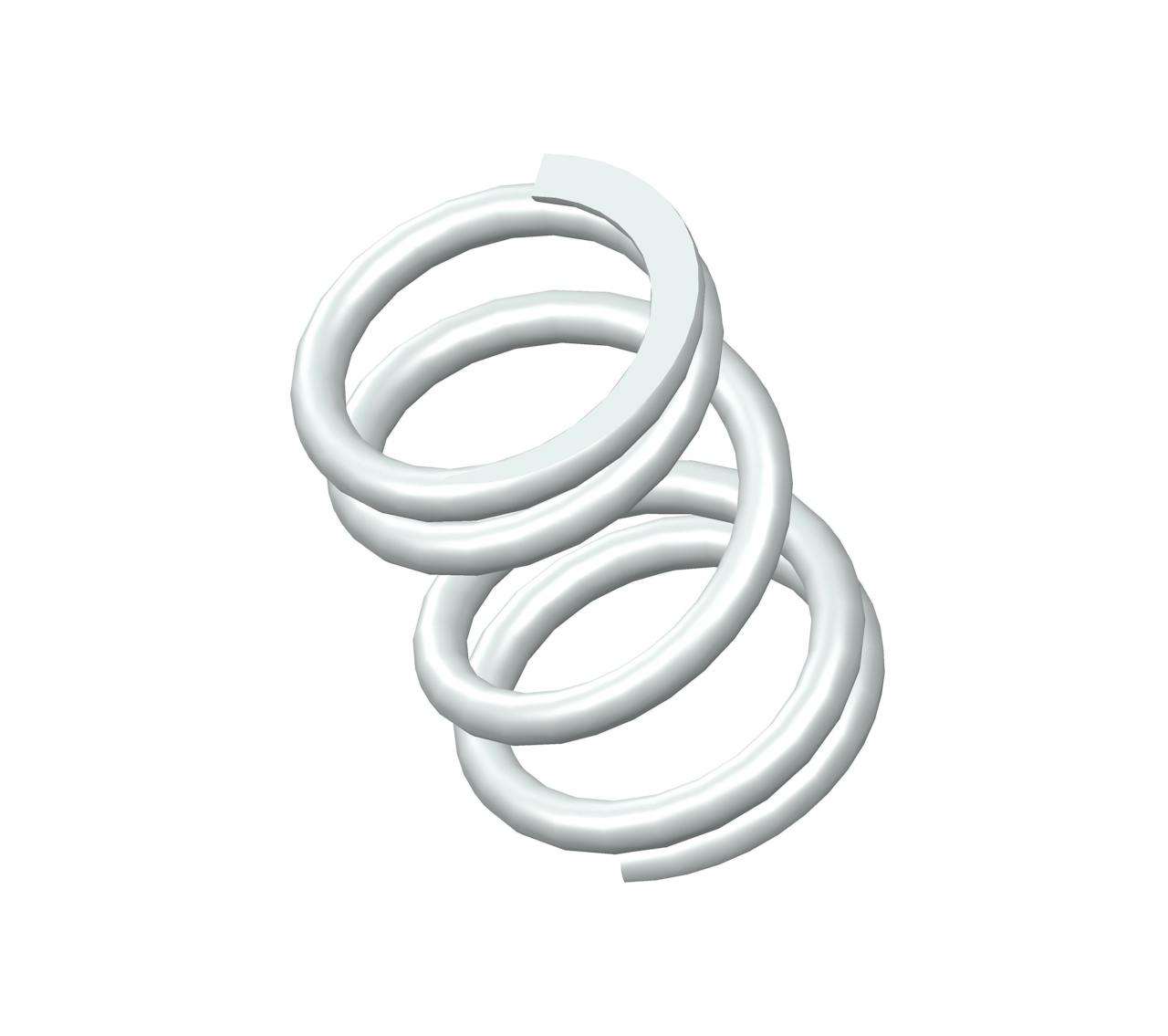

A12-37CS - 0.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 4.5 coils and closed & ground ends. This spring features an O.D. of 0.18", and an I.D. of 0.136".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A12-37 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.25 in |
| Inside Diameter | 0.136 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.18 in |
| Part Type | Standard |
| Rate | 30 lbs/in |
| SKU | A12-37CS |
| Solid Length | 0.1 in |
| Suggested Max Deflection | 0.08 in |
| Suggested Max Load | 2.3 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A12-37 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 6.35 mm |
| Inside Diameter | 3.45 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.57 mm |
| Part Type | Standard |
| Rate | 5.25 N/mm |
| SKU | A12-37CS |
| Solid Length | 2.54 mm |
| Suggested Max Deflection | 2.03 mm |
| Suggested Max Load | 10.23 N |
| Total Coils | 4.5 |
| Wire Diameter | 0.56 mm |
The compression spring A12-37CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the A12-37 compression spring design exhibits exceptional tensile strength and resilience.
The A12-37 design is manufactured with a free length of 0.25", with an outer diameter of 0.18", an inner diameter of 0.136", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 30 lbs/in.
The A12-37CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A12-37 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A12-37 design is manufactured with a free length of 0.25", with an outer diameter of 0.18", an inner diameter of 0.136", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 30 lbs/in.
The A12-37CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A12-37 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
