A12-24CS - 0.47" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

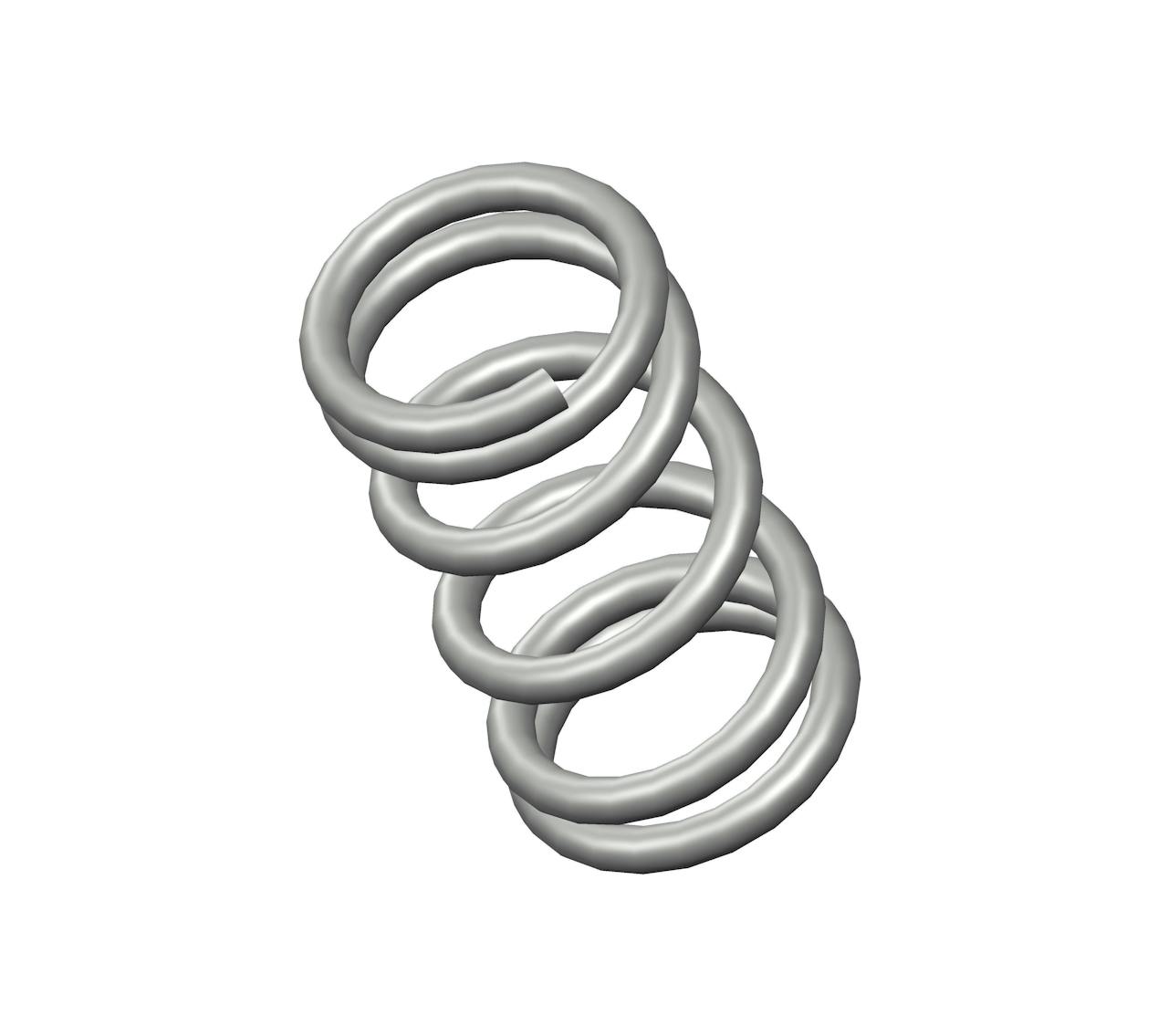

Compression spring manufactured from music wire with 5.75 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.174".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A12-24 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.47 in |
| Inside Diameter | 0.174 in |
| Material | Music Wire |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 37 lbs/in |
| SKU | A12-24CS |
| Solid Length | 0.2 in |
| Suggested Max Deflection | 0.17 in |
| Suggested Max Load | 6.3 lbf |
| Total Coils | 5.75 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A12-24 |
| Ends | Closed |
| Finish | None |
| Free Length | 11.94 mm |
| Inside Diameter | 4.42 mm |
| Material | Music Wire |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 6.48 N/mm |
| SKU | A12-24CS |
| Solid Length | 5.08 mm |
| Suggested Max Deflection | 4.32 mm |
| Suggested Max Load | 28.02 N |
| Total Coils | 5.75 |
| Wire Diameter | 0.76 mm |
The compression spring A12-24CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the A12-24 compression spring design exhibits exceptional tensile strength and resilience.
The A12-24 design is manufactured with a free length of 0.47", with an outer diameter of 0.234", an inner diameter of 0.174", and a total of 5.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 37 lbs/in.
The A12-24CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A12-24 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A12-24 design is manufactured with a free length of 0.47", with an outer diameter of 0.234", an inner diameter of 0.174", and a total of 5.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 37 lbs/in.
The A12-24CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A12-24 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
