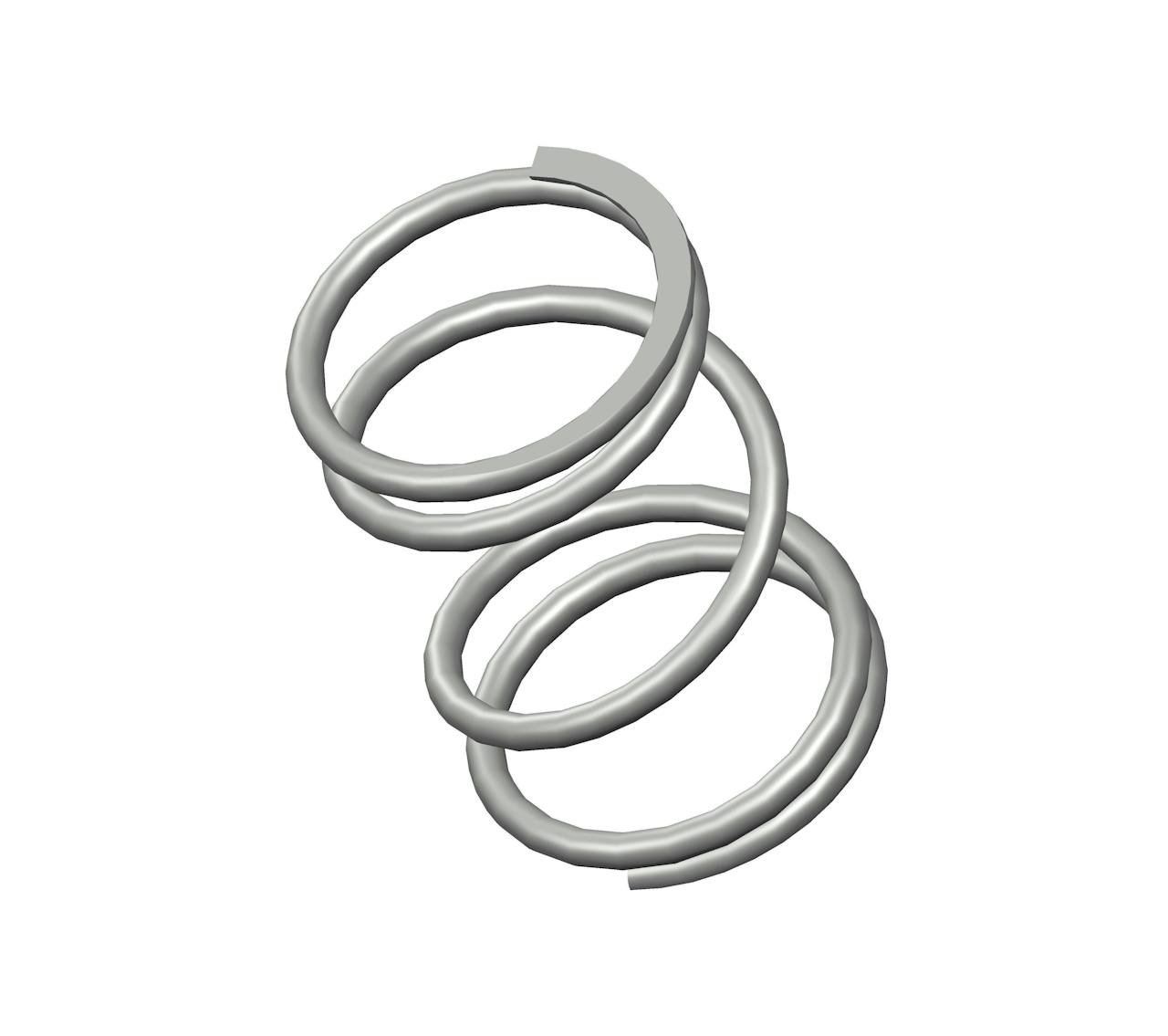

A11-6CS - 0.44" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 4.5 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.244".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-6 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.44 in |
| Inside Diameter | 0.244 in |
| Material | Music Wire |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 13 lbs/in |
| SKU | A11-6CS |
| Solid Length | 0.12 in |
| Suggested Max Deflection | 0.25 in |
| Suggested Max Load | 3.3 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A11-6 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 11.18 mm |
| Inside Diameter | 6.2 mm |
| Material | Music Wire |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 2.28 N/mm |
| SKU | A11-6CS |
| Solid Length | 3.05 mm |
| Suggested Max Deflection | 6.35 mm |
| Suggested Max Load | 14.68 N |
| Total Coils | 4.5 |
| Wire Diameter | 0.66 mm |
The A11-6 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The A11-6CS compression spring is designed with a free length of 0.69" total of 5 coils, and a rate of 317 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A11-6 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The A11-6CS compression spring is designed with a free length of 0.69" total of 5 coils, and a rate of 317 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The A11-6 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
